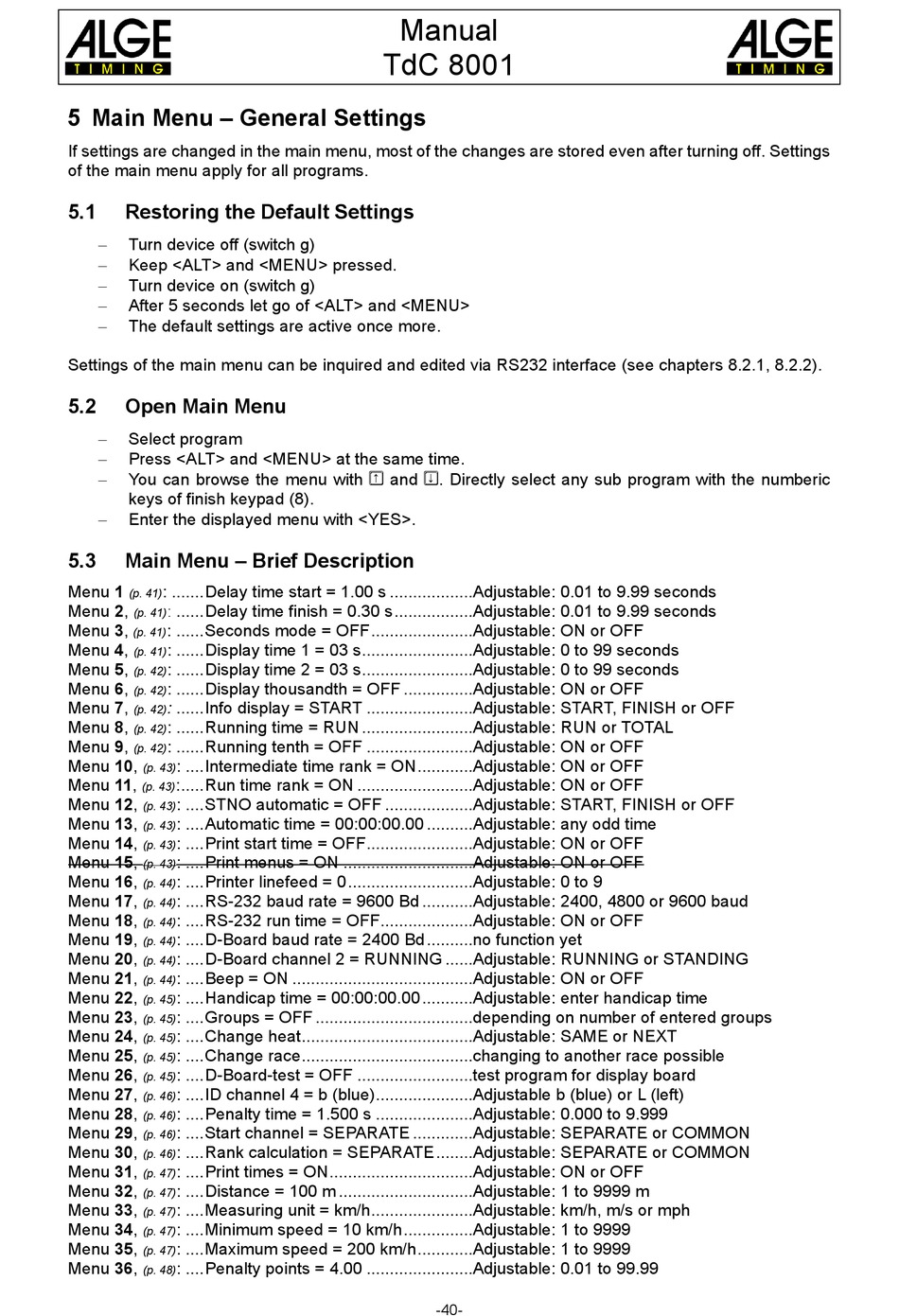

5 Main Menu – General Settings
If settings are changed in the main menu, most of the changes are stored even after turning off. Settings
of the main menu apply for all programs.
5.1

Restoring the Default Settings

Turn device off (switch g)
−
− Keep <ALT> and <MENU> pressed.
Turn device on (switch g)
−
− After 5 seconds let go of <ALT> and <MENU>
− The default settings are active once more.
Settings of the main menu can be inquired and edited via RS232 interface (see chapters 8.2.1, 8.2.2).
5.2

Open Main Menu

Select program
−
− Press <ALT> and <MENU> at the same time.
You can browse the menu with  and . Directly select any sub program with the numberic
−
keys of finish keypad (8).
Enter the displayed menu with <YES>.
−
5.3 Main Menu – Brief Description
Menu 1 : ....... Delay time start = 1.00 s ..................Adjustable: 0.01 to 9.99 seconds
(p. 41)
Menu 2, ...... Delay time finish = 0.30 s .................Adjustable: 0.01 to 9.99 seconds
:
(p. 41)
Menu 3, : ...... Seconds mode = OFF ......................Adjustable: ON or OFF
(p. 41)
Menu 4, : ...... Display time 1 = 03 s ........................Adjustable: 0 to 99 seconds
(p. 41)
Menu 5,
: ...... Display time 2 = 03 s ........................Adjustable: 0 to 99 seconds
(p. 42)
Menu 6, : ...... Display thousandth = OFF ...............Adjustable: ON or OFF
(p. 42)
Menu 7, : ...... Info display = START .......................Adjustable: START, FINISH or OFF
(p. 42)
Menu 8,
: ...... Running time = RUN ........................Adjustable: RUN or TOTAL
(p. 42)
Menu 9, : ...... Running tenth = OFF .......................Adjustable: ON or OFF
(p. 42)
Menu 10,
: .... Intermediate time rank = ON ............Adjustable: ON or OFF
(p. 43)
Menu 11, : ..... Run time rank = ON .........................Adjustable: ON or OFF
(p. 43)
Menu 12, : .... STNO automatic = OFF ...................Adjustable: START, FINISH or OFF
(p. 43)
Menu 13,
: .... Automatic time = 00:00:00.00 ..........Adjustable: any odd time
(p. 43)
Menu 14, : .... Print start time = OFF .......................Adjustable: ON or OFF
(p. 43)
Menu 15,
: .... Print menus = ON ............................Adjustable: ON or OFF
(p. 43)
Menu 16, : .... Printer linefeed = 0 ...........................Adjustable: 0 to 9
(p. 44)
Menu 17, : .... RS-232 baud rate = 9600 Bd ...........Adjustable: 2400, 4800 or 9600 baud
(p. 44)
Menu 18,
: .... RS-232 run time = OFF ....................Adjustable: ON or OFF
(p. 44)
Menu 19, : .... D-Board baud rate = 2400 Bd ..........no function yet
(p. 44)
Menu 20, : .... D-Board channel 2 = RUNNING ......Adjustable: RUNNING or STANDING
(p. 44)
Menu 21, : .... Beep = ON .......................................Adjustable: ON or OFF
(p. 44)
Menu 22, : .... Handicap time = 00:00:00.00 ...........Adjustable: enter handicap time
(p. 45)
Menu 23,
: .... Groups = OFF ..................................depending on number of entered groups
(p. 45)
Menu 24, : .... Change heat .....................................Adjustable: SAME or NEXT
(p. 45)
Menu 25, : .... Change race .....................................changing to another race possible
(p. 45)
Menu 26, : .... D-Board-test = OFF .........................test program for display board
(p. 45)
Menu 27, : .... ID channel 4 = b (blue) .....................Adjustable b (blue) or L (left)
(p. 46)
Menu 28,
: .... Penalty time = 1.500 s .....................Adjustable: 0.000 to 9.999
(p. 46)
Menu 29, : .... Start channel = SEPARATE .............Adjustable: SEPARATE or COMMON
(p. 46)
Menu 30, : .... Rank calculation = SEPARATE ........Adjustable: SEPARATE or COMMON
(p. 46)
Menu 31,
: .... Print times = ON ...............................Adjustable: ON or OFF
(p. 47)
Menu 32, : .... Distance = 100 m .............................Adjustable: 1 to 9999 m
(p. 47)
Menu 33,
: .... Measuring unit = km/h ......................Adjustable: km/h, m/s or mph
(p. 47)
Menu 34, : .... Minimum speed = 10 km/h ...............Adjustable: 1 to 9999
(p. 47)
Menu 35, : .... Maximum speed = 200 km/h ............Adjustable: 1 to 9999
(p. 47)
Menu 36,
: .... Penalty points = 4.00 .......................Adjustable: 0.01 to 99.99
(p. 48)
Manual
TdC 8001
-40-
