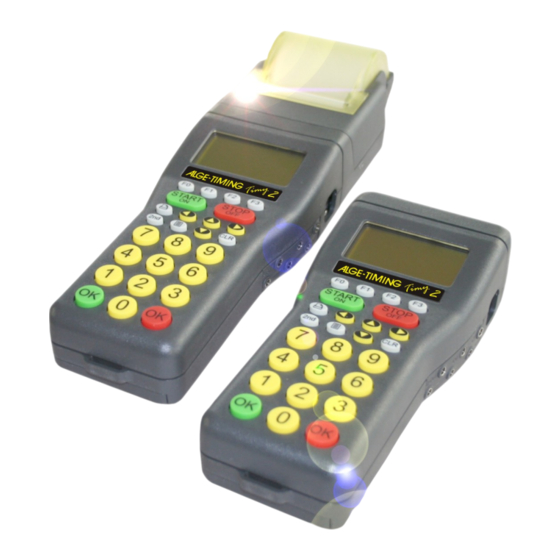

ALGE-Timing Timy2 Manual

Pc-timer
Hide thumbs Also See for Timy2:
Table of Contents

Advertisement

Quick Links

Download this manual
Version-E130522
Manual
Timy2 – PC-Timer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Timy2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALGE-Timing Timy2

Summary of Contents for ALGE-Timing Timy2

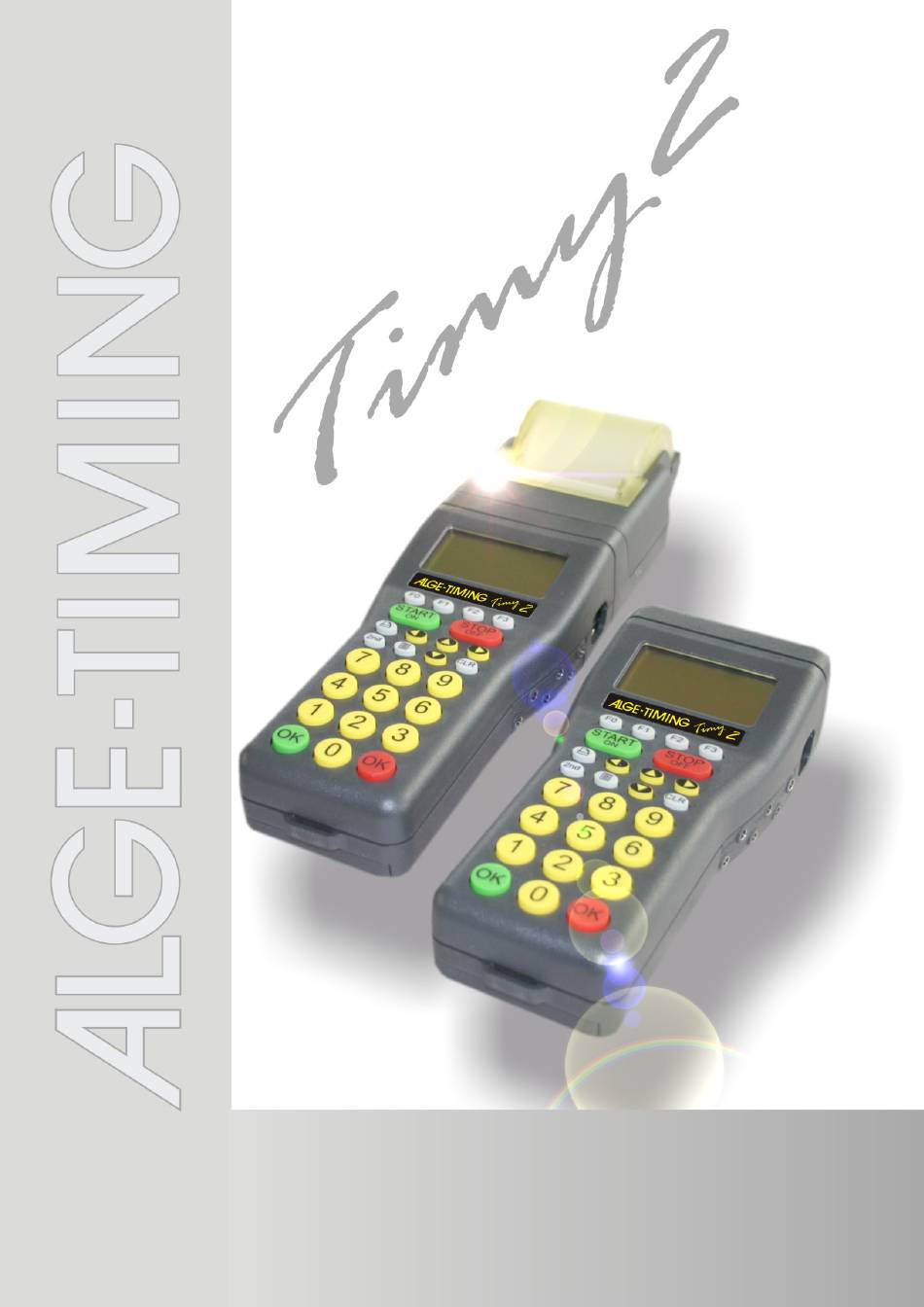

  • Page 1 Version-E130522 Manual Timy2 – PC-Timer...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 We declare that the following products comply with the requirements of the listed standards. ALGE-TIMING GmbH Rotkreuzstrasse 39 A-6890 Lustenau declare under our sole responsibility, that the timing device Timy2 XE and Timy2 PXE is in conformity with the following standard(s) or other normative documents(s): Safety: EN 60950-1:2006 + A11:2009 EMC:...

  • Page 4: Table Of Contents

    Manual TIMY2 – PC-Timer Table of Contents Keypad and Start Up....................5 Menu .......................... 5 Program PC-Timer ....................5 Clear Times (CLR) ...................... 5 Edit Start Numbers (STN) ................... 5 Correct Times (Time) ....................6 Manual Start or Stop Impulses ..................6 External Start or Stop Impulses ..................

  • Page 5: Keypad And Start Up

    The Timy2 can form a very strong combination with the PC, i. e. the exact time comes form the Timy2, the rest of the timing is carried out at the PC. In this program the Timy2 issues the running time in 1/10 seconds interval. When an impulse is triggered, the daytime with its cor- responding number (subsequent number or entered start number) and channel identification is sent to the PC.

  • Page 6: Correct Times (Time)

    External Start or Stop Impulses Impulses that are triggered by an external device (e. g. push-button, start microphone) are only displayed and printed. Timing Channels The Timy2 differentiates between up to 9 timing channels. start channel finish channel C3 – C8...

  • Page 7: Further Display Options

    Enter the main menu • Select submenu PC-Timer/Mass Start • Timy2 asks if to clear or save the existing times • If necessary, a new time or a new date can be set • Press „OK“ until “Wait for Start Impulse” appears •...

  • Page 8: Rs232 Interface

    Manual TIMY2 – PC-Timer RS232 Interface Interface Data RS232 interface 38.400 baud (non-adjustable) 8 Data Bit, no Parity Bit, 1 Stop Bit ASCII figures Output of running time in 1/10 seconds, in between the stopped times are issued stopped time...

  • Page 9: Protocol Of Rs232 Interface

    Manual TIMY2 – PC-Timer Protocol of RS232 Interface: running time in hrs, min, sec and 1/10 seconds 07:50:40.0 07:50:40.1 running time in hrs, min, sec and 1/10 seconds 07:50:40.2 running time in hrs, min, sec and 1/10 seconds 0033 C0 07:50:40.2828 00...
  • Page 10 Manual TIMY2 – PC-Timer Page 10...
  • Page 11 Manual TIMY2 – PC-Timer Page 11...

  • Page 12: Rs232 Command Sequence

    0 or 1 KL0 KL1 KL? keypad lock query, on/off NSF? NSF? Timy2 version of program sends NSFV03B2 PRI_AF 0 - 9 PRI_AF3 linefeed settings for printer printer AutoLineFeed 0 - 9 0 or 1...
