Bucket Ram Installation - jcb JS200 Service Manual

Section B
4 - 4
Attachments (continued)

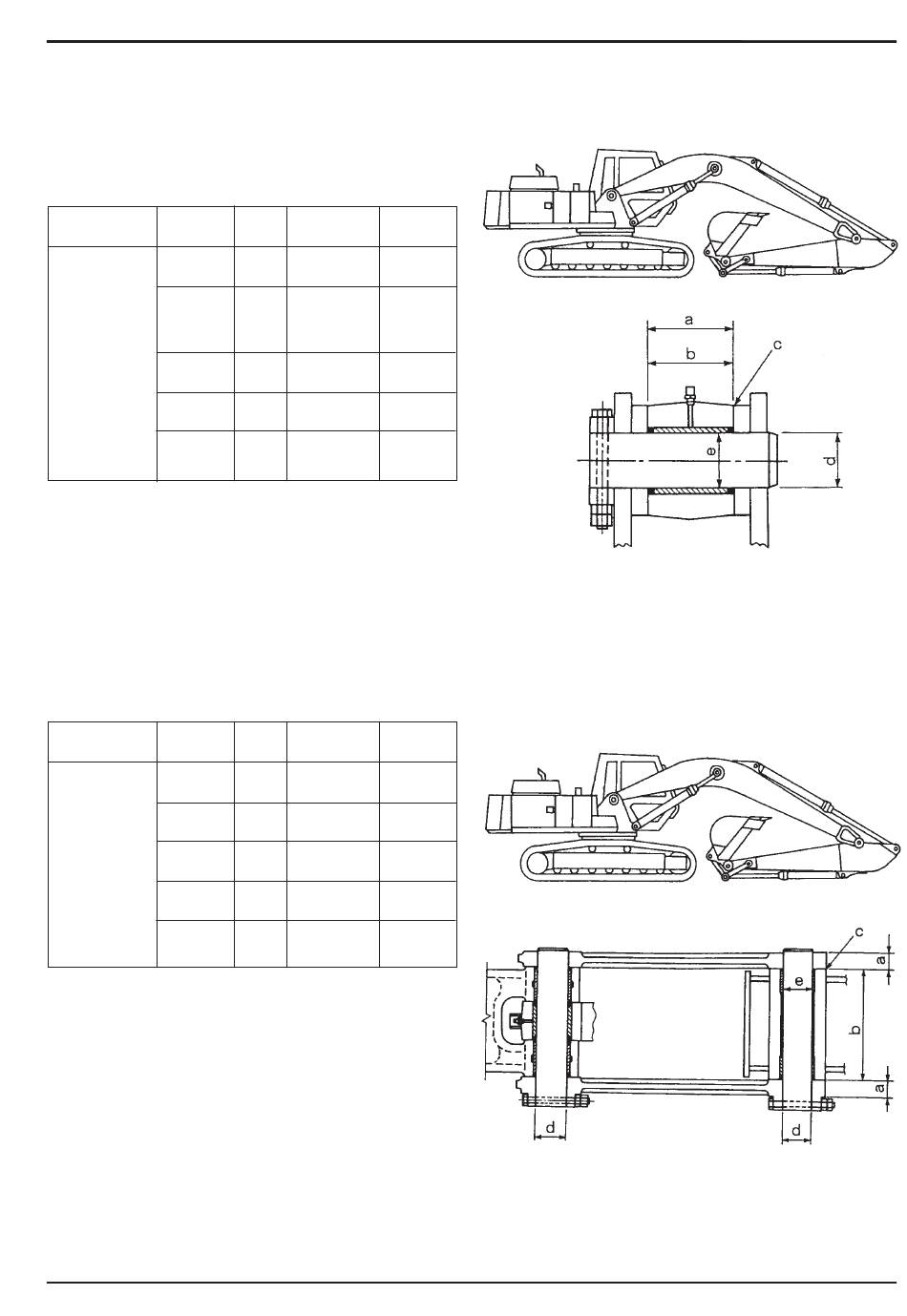

Bucket Ram Installations JS200, JS200LC
Equipment Part
Name Name
7. Bucket Ram Dipper
installation
Bucket
ram
(eye end)
Clearance
Pin
Bushing
(bucket ram)
Dipper and Dipper Link Installation JS200,
JS200LC
Equipment Part
Name Name
8. Dipper and Dipper Link
Dipper
link installation
Dipper
Clearance
Pin
Bushing
(Dipper)
9803/6400
*
Body & Framework
Maintenance Specifications
Code Standard Service
Value (mm) Limit (mm)
a 101 107
b 100 98
Shim for
c 0.5-3.0
adjustment
KRV1176
d ø75 ø74
e ø75 ø76.5
Code Standard Service
Value (mm) Limit (mm)
a 46 43
b 280 278
Shim for
adjustment
c 1.0-1.5
KHV0169
d ø75 ø74
e ø75 ø76.5
Section B
4 - 4
Issue 2*
