Section J
7 - 2
Replacement
1.

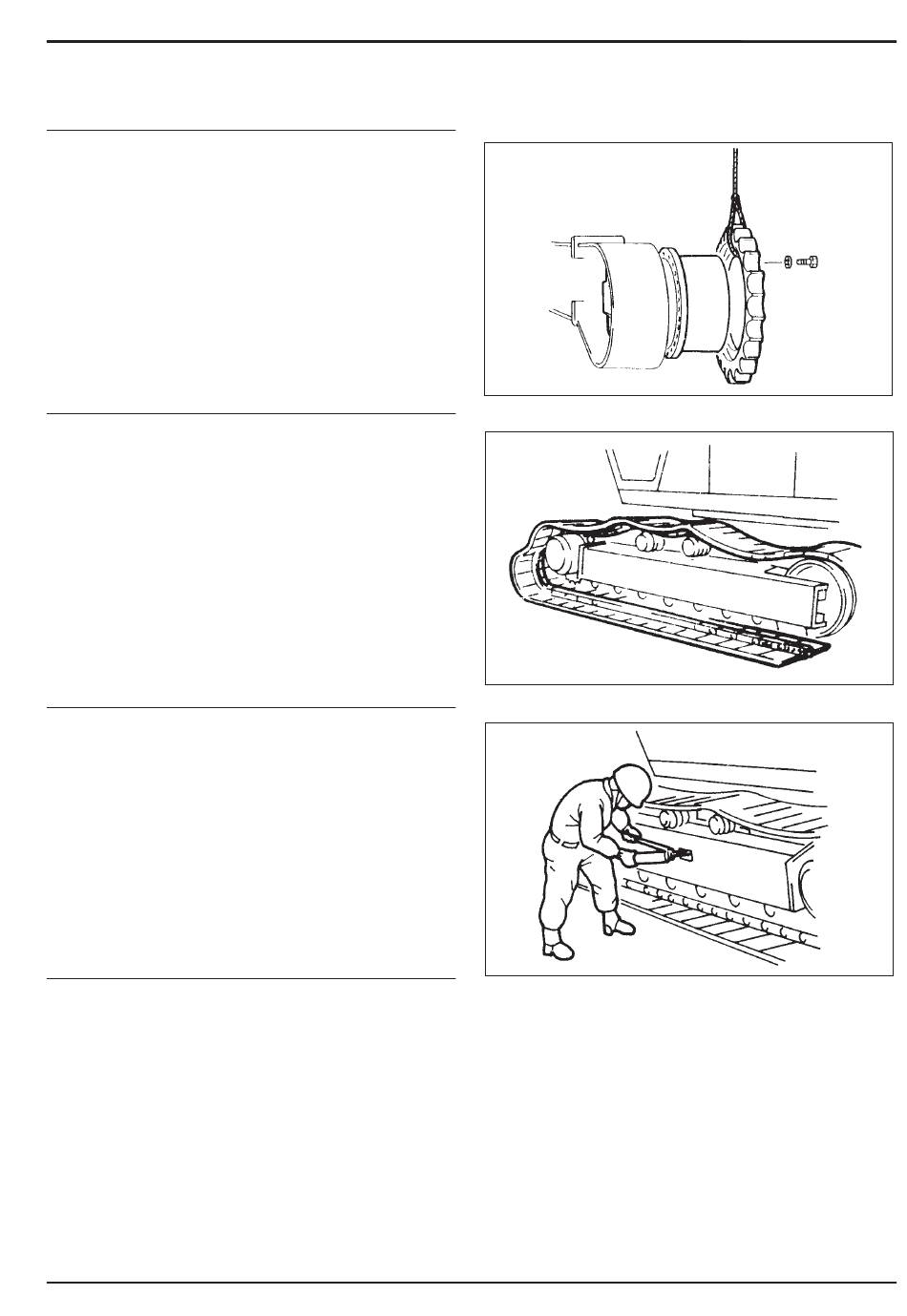

Support the sprocket and position it on the gearbox.
Install the bolts and washers, using Loctite 262 on the
bolt threads. Tighten the bolts in a diagonal sequence.
Torque Settings
Machine
Nm
JS200
267.312
JS240
267.312
2.
Remove the wooden blocks. Connect the track link.
3.
Apply grease through the check valve to adjust the track
tension (see Section 3).
9803/6400
Track and Running Gear
Drive Sprocket (continued)
lbf ft
196-230
196-230
Section J
7 - 2
Issue 1
