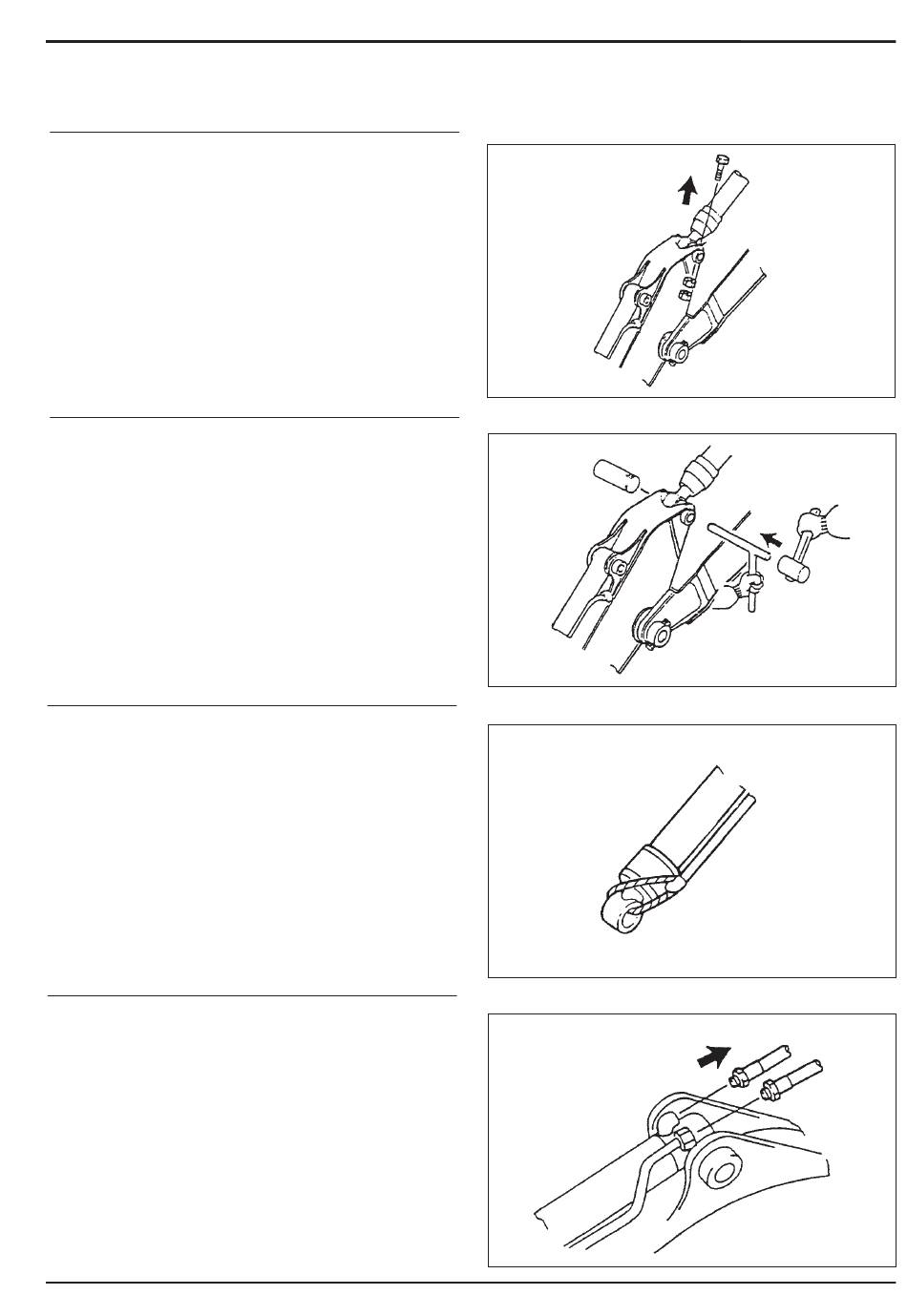

Dipper Ram (continued)

Remove the nuts and bolts.

Push out the pin, using a bar and hammer.

Restrain the eye end of the Dipper ram rod to the ram

cylinder to prevent the rod from extending.

Remove the Dipper ram hoses, and install plugs or caps

to prevent contamination.
