Section J
3 - 2
Dismantling (continued)

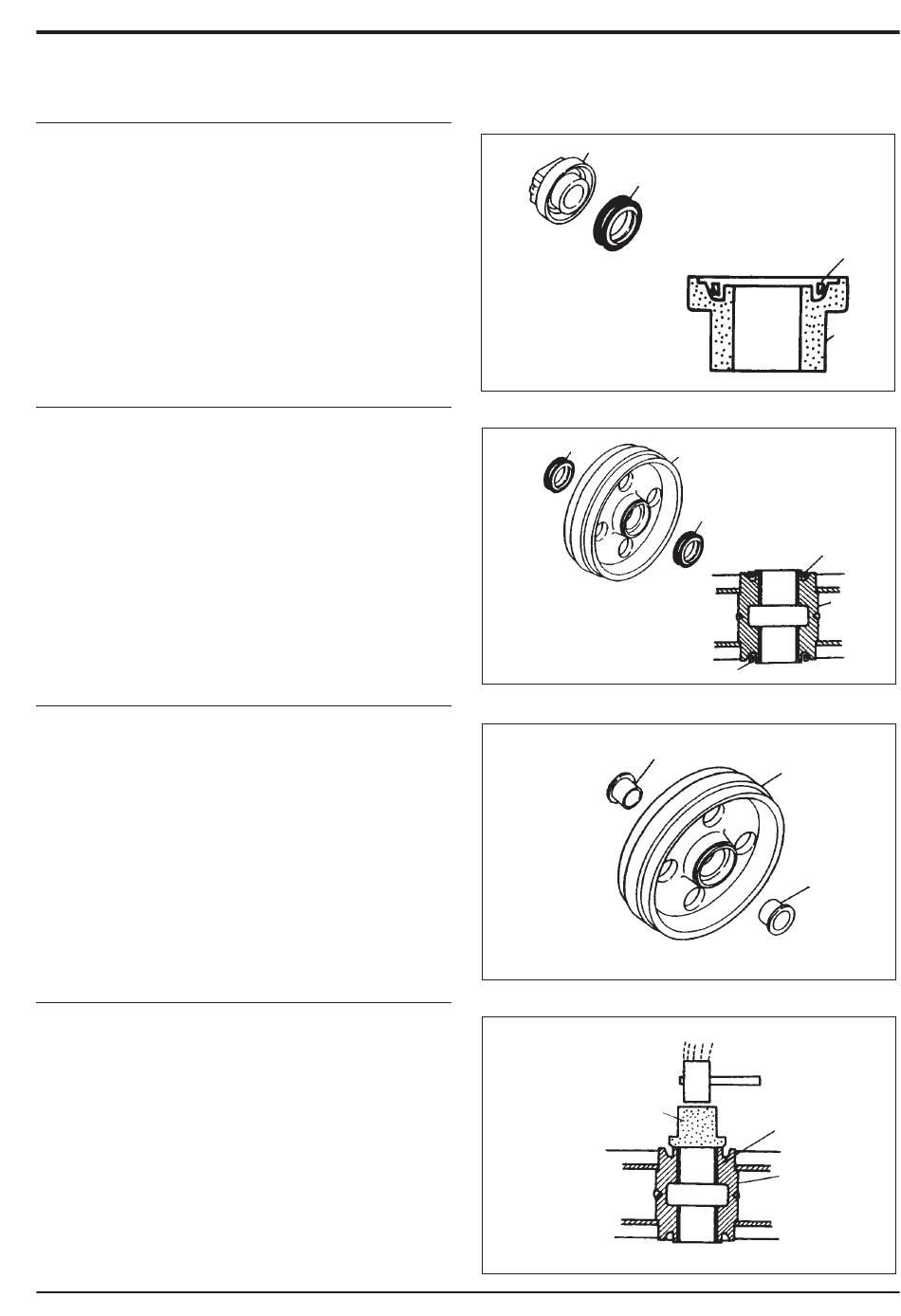

5.
Remove floating seal J from each hub C using a pry bar.
6.
Remove floating seal J from each side of idler wheel G
using a pry bar.
7.
If badly worn or damaged, remove the bushes K from
idler wheel G using a press or puller.
Protect parts from moisture and dust if left dismantled for
some time.
Assembly
1.
Clean all parts thoroughly in a suitable solvent. Dry shaft
and bore of idler wheel using compressed air in a place
free of dust and moisture.
Check components for wear as detailed under Wear
Limits. Polish out scratches and roughness using an oil
stone. Then apply a coat of engine oil to all parts.
Carefully drive the new bushes K into the idler wheel G,
using a suitable dolly L.
9803/6400
Track and Running Gear
Idler Wheel (continued)
C
J
J
G
J
J
K
L
Section J
3 - 2
J
C
J
G
K
K
G
Issue 1
