Electrics
Section C Section C
5 - 17 Pump Control 5 - 17

Swing Brake/Swing Lock

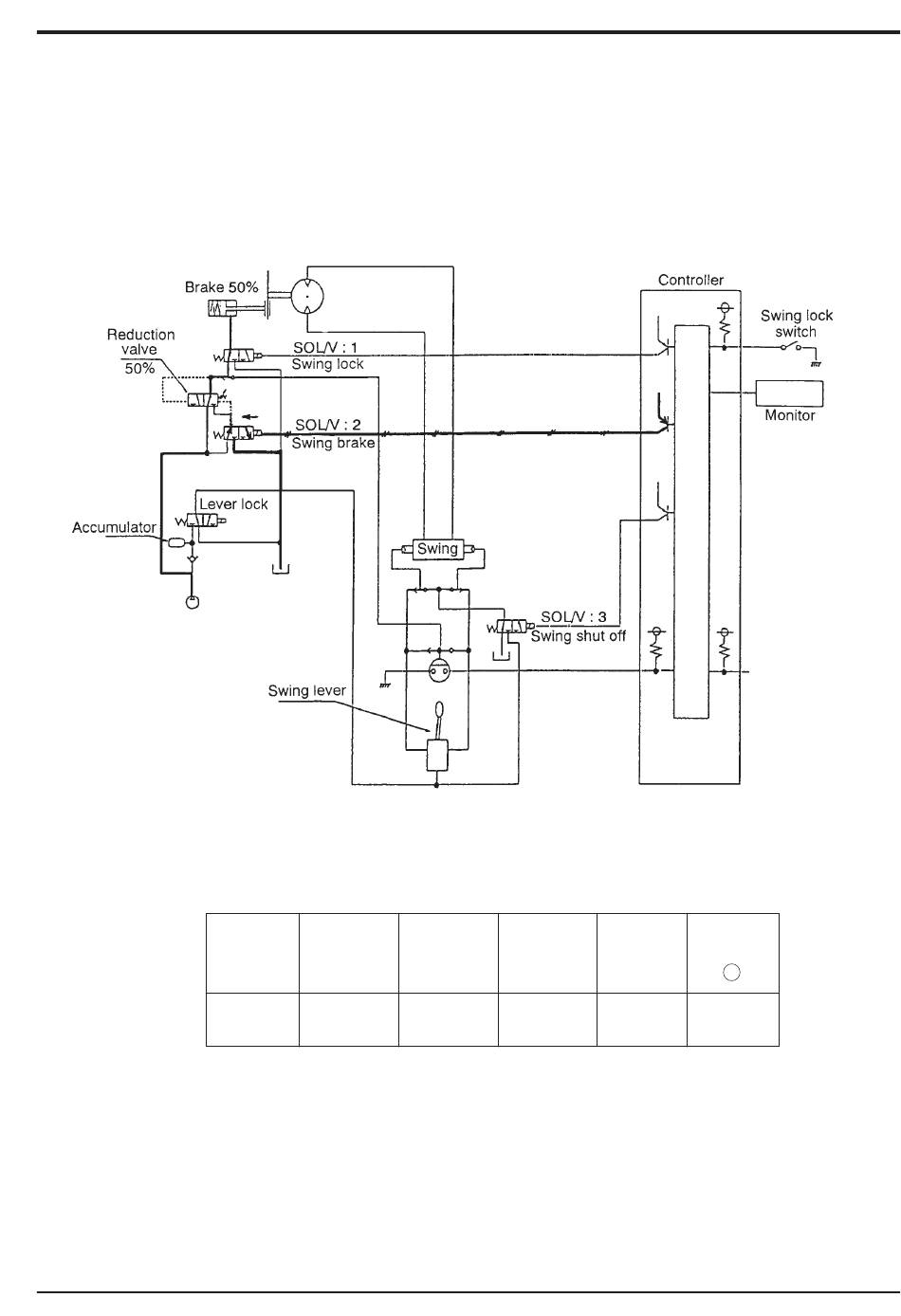

(1) Swing Brake
1) Engine is running and swing lever is in neutral (50% brake).
SOL: 2
Swing Swing lock SOL:1 50% SOL: 3 Monitor
lever SW 100% lock brake Shut off ( P )
ON
OFF OFF OFF OFF
24V is output to the swing brake solenoid valve (SOL:2), the pilot pressure which ran through the pressure reducing valve
enters the swing motor, and operates with a braking force of 50%.
9803/6400 Issue 1
