Section 1
5 - 1
Service Tools (continued)
SECTION E - HYDRAULICS

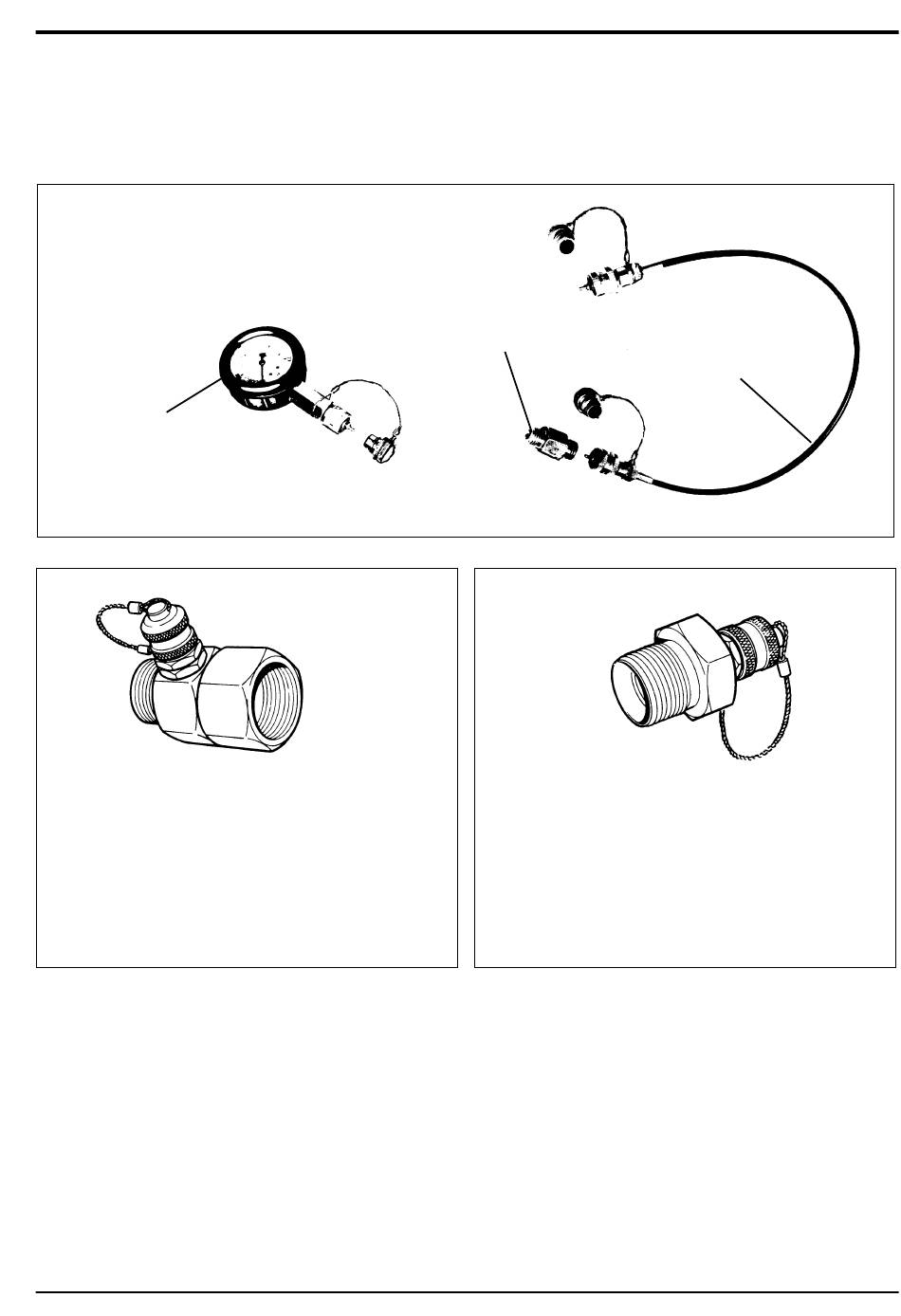

Hydraulic Pressure Test Gauges and Connections
1 892/00279
2 892/00346
3 892/00347
4 892/00254
1/2
Pressure Test 'T' Adapters
892/00262 1/4 in BSP x 1/4 in F BSP x Test Point
816/55038 3/8 in BSP x 3/8 in F BSP x Test Point
816/55040 1/2 in BSP x 1/2 in F BSP x Test Point
892/00263 5/8 in BSP x 5/8 in F BSP x Test Point
892/00264 3/4 in BSP x 3/4 in F BSP x Test Point
892/00265 1 in M BSP x 1 in F BSP x Test Point
892/00266 1,1/4 in M BSP x 1,1/4 in F BSP x Test Point
892/00267 1,1/2 in M BSP x 1,1/2 in F BSP x Test Point
9803/6400
General Information
Pressure Gauge 0-400 bar (0-6000 lbf/in
Pressure Gauge 0-70 bar (0-1000 lbf/in
Connector
Hose
)
2
)
2
3
Pressure Test Adapters
892/00255 1/4 in BSP x Test Point
892/00256 3/8 in BSP x Test Point
892/00257 1/2 in BSP x Test Point
892/00258 5/8 in BSP x Test Point
816/15118 3/4 in BSP x Test Point
892/00259 1 in BSP x Test Point
892/00260 1,1/4 in BSP x Test Point
892/00261 5/8 in UNF x Test Point
Section 1
5 - 1
4
Issue 1
