Transmission
Section F
Section F
9 - 4
Gearbox
9 - 4
Dismantling (continued)

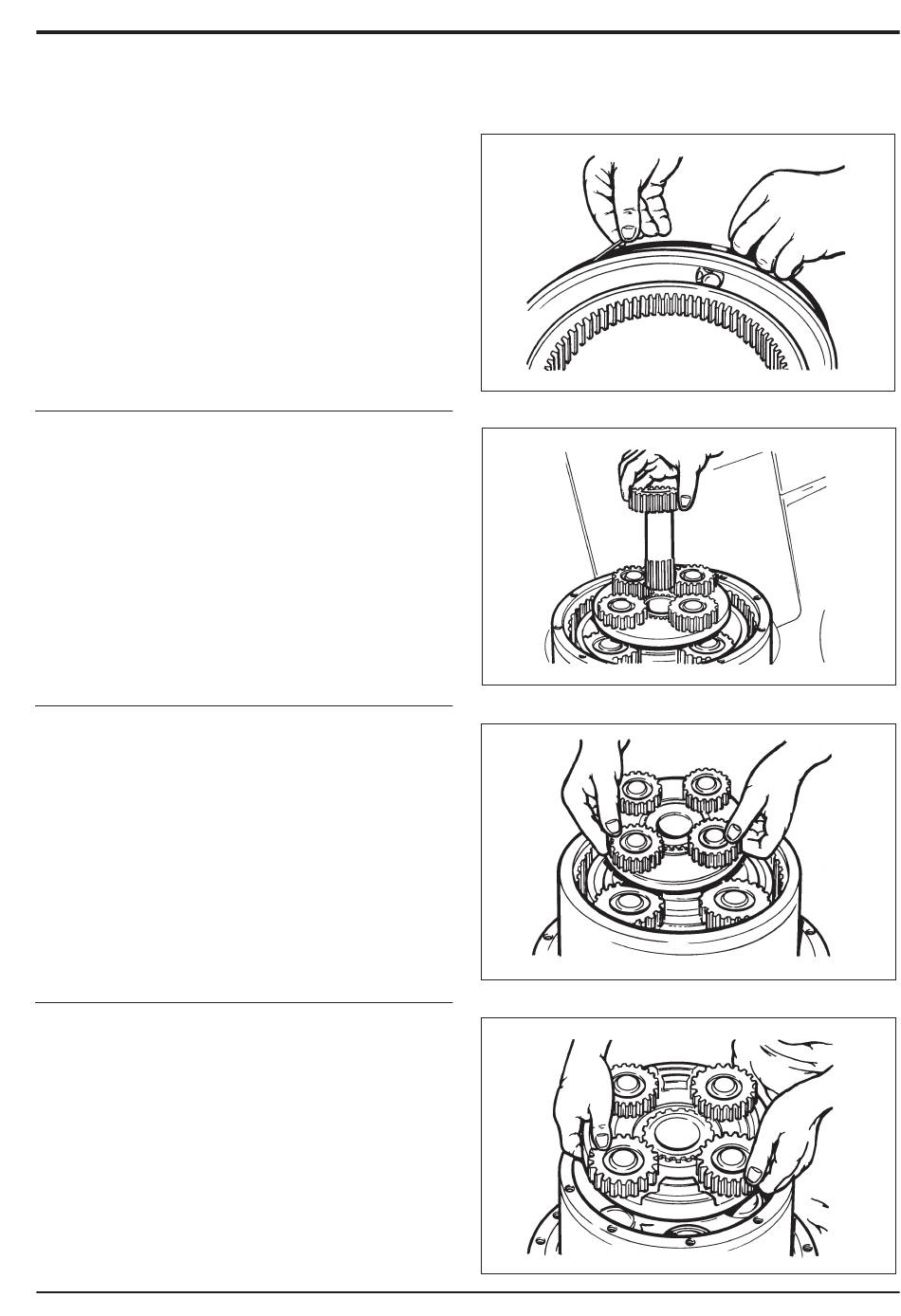

8. Remove the (5) 'O'-ring, from its groove in the (4) end
cover.
9. Remove the (7) first stage sun gear.
10. Remove the (8) first reduction assembly.
11. Remove the (9) second reduction assembly.
9803/6400
