Section E
92 - 4
*
Motor Assembly/Cylinder Assembly
Dismantling (cont'd)

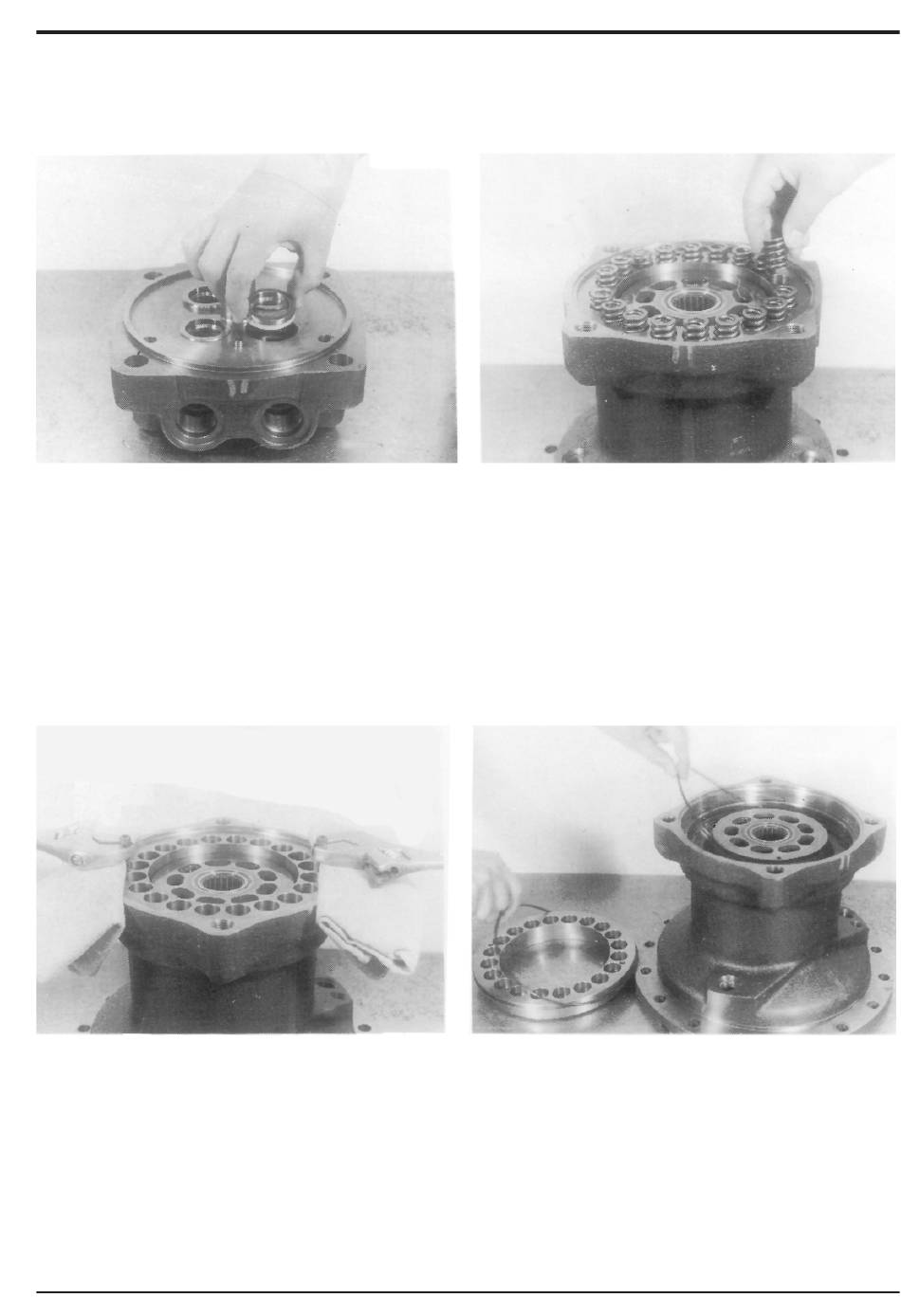

12 Remove the bushings 20 with Teflon rings 19 and the
plate springs 18.
14 It may be difficult to remove brake piston 12 from
housing 25 due to resistance caused by 'O'-rings 11 and
13. Therefore remove brake piston 12 using the tapped
M6 holes as shown in the photograph.
9803/6400
Hydraulics
Slew Motor
13 Remove the springs 14 from brake piston 12.
Note: Keep the springs in the order in which they are to be
reinserted.
15 Remove 'O'-ring 11 from housing 25 and 'O'-ring 13
from brake piston 12.
Section E
92 - 4
Issue 2*
