Operator's Cab - jcb JS200 Service Manual

Section C
3 - 1

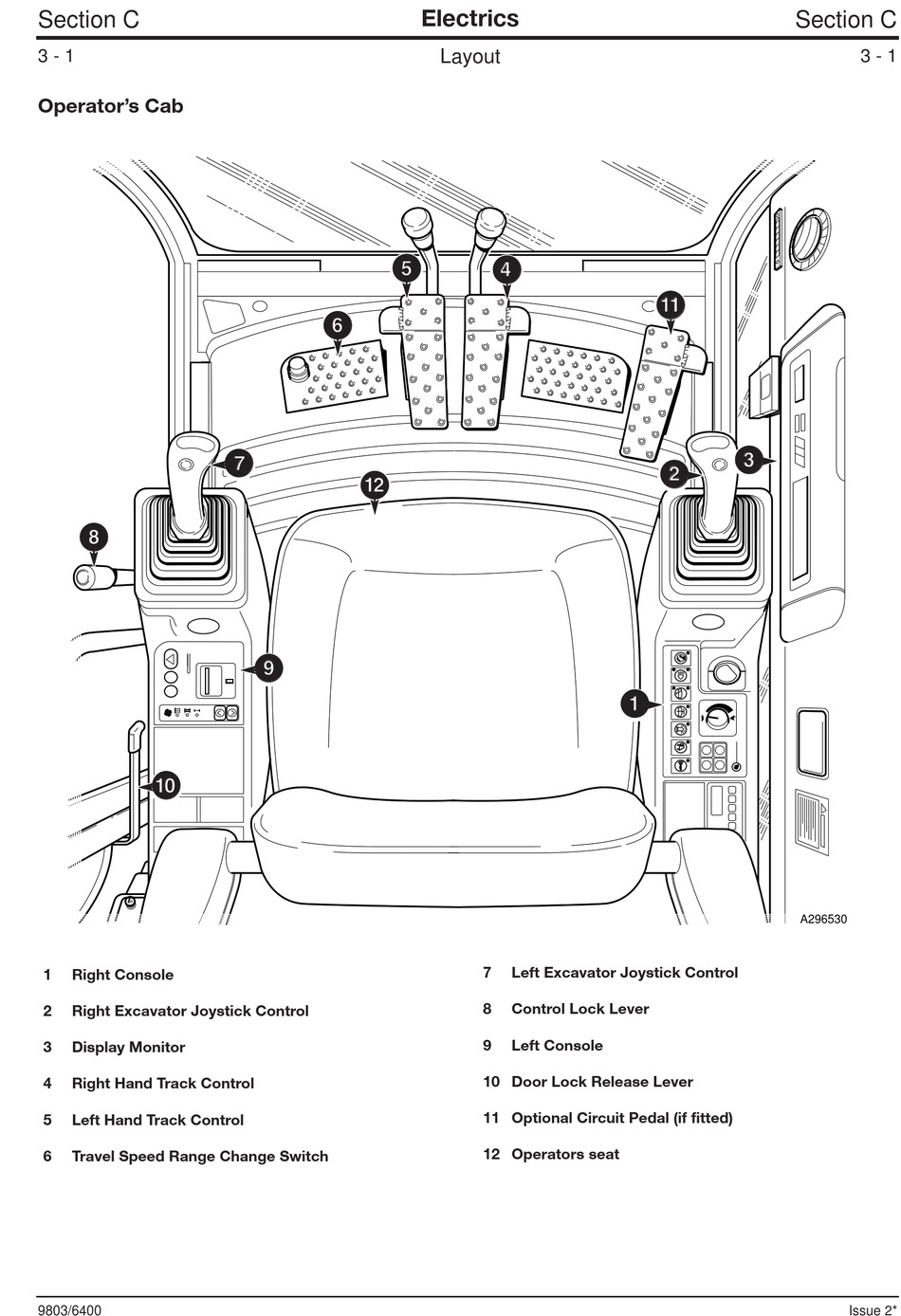

Operator's Cab

8 8
0 0
1 Right Console
2 Right Excavator Joystick Control
3 Display Monitor
4 Right Hand Track Control
5 Left Hand Track Control
6 Travel Speed Range Change Switch
9803/6400
5 5
6 6
7 7
@ @
9 9
Electrics
Layout
4 4
7 Left Excavator Joystick Control
8 Control Lock Lever
9 Left Console
10 Door Lock Release Lever
11 Optional Circuit Pedal (if fitted)
12 Operators seat
! !
3 3
2 2
1 1
Section C
3 - 1
A296530
Issue 2*
