Section E
23 - 3

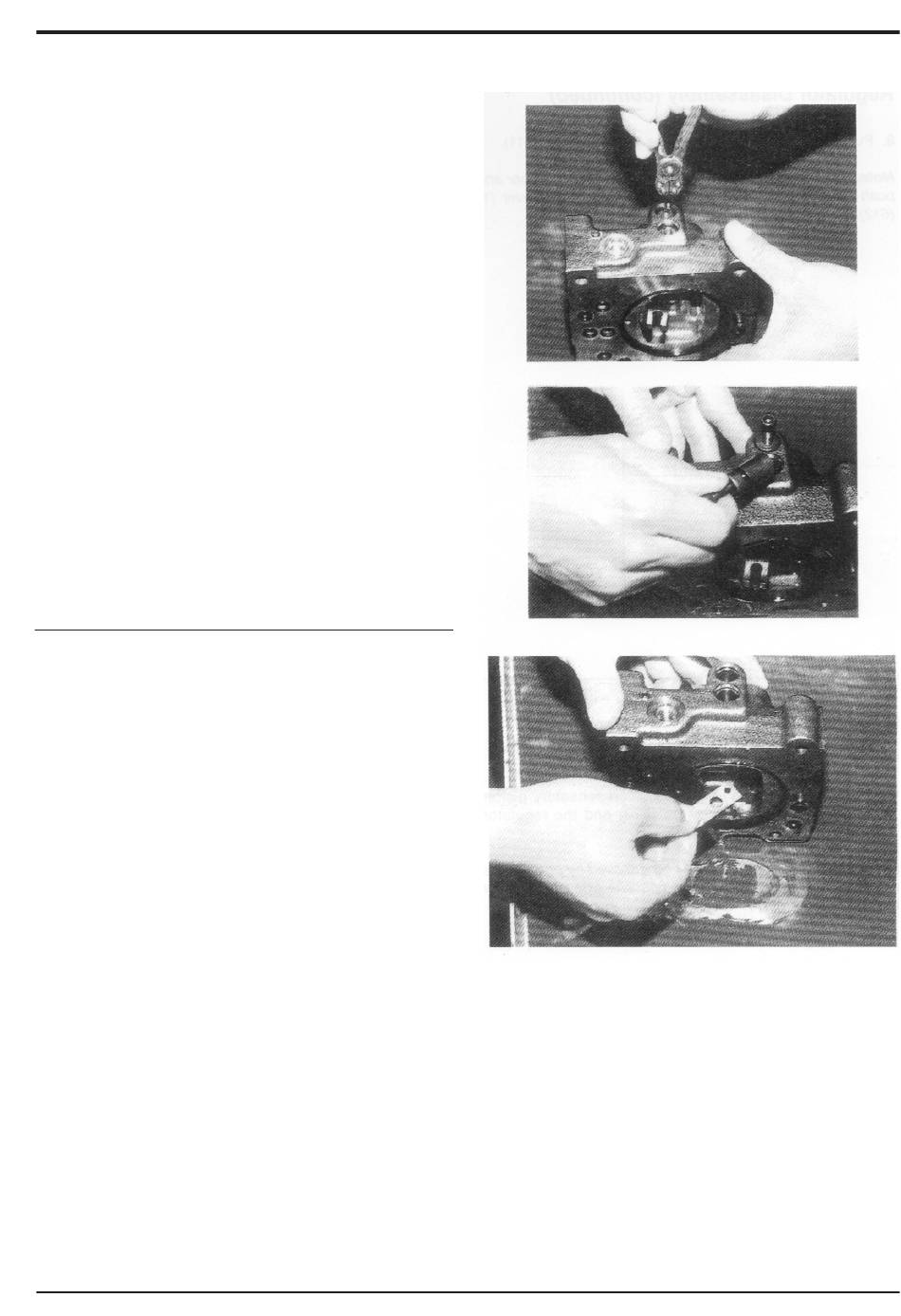

Regulator Disassembly (continued)
6.
Remove the locking ring (858) and remove the fulcrum
plug (614) and adjusting plug (615).
Note: For easy removal, use M6 bolt to pull out the fulcrum
plug (614) and adjusting plug (615).
7. Remove the lever (2) (613). Do not pull out the pin (875).
9803/6400
Hydraulics
Regulator JS200. JS240
Section E
23 - 3
Issue 1
