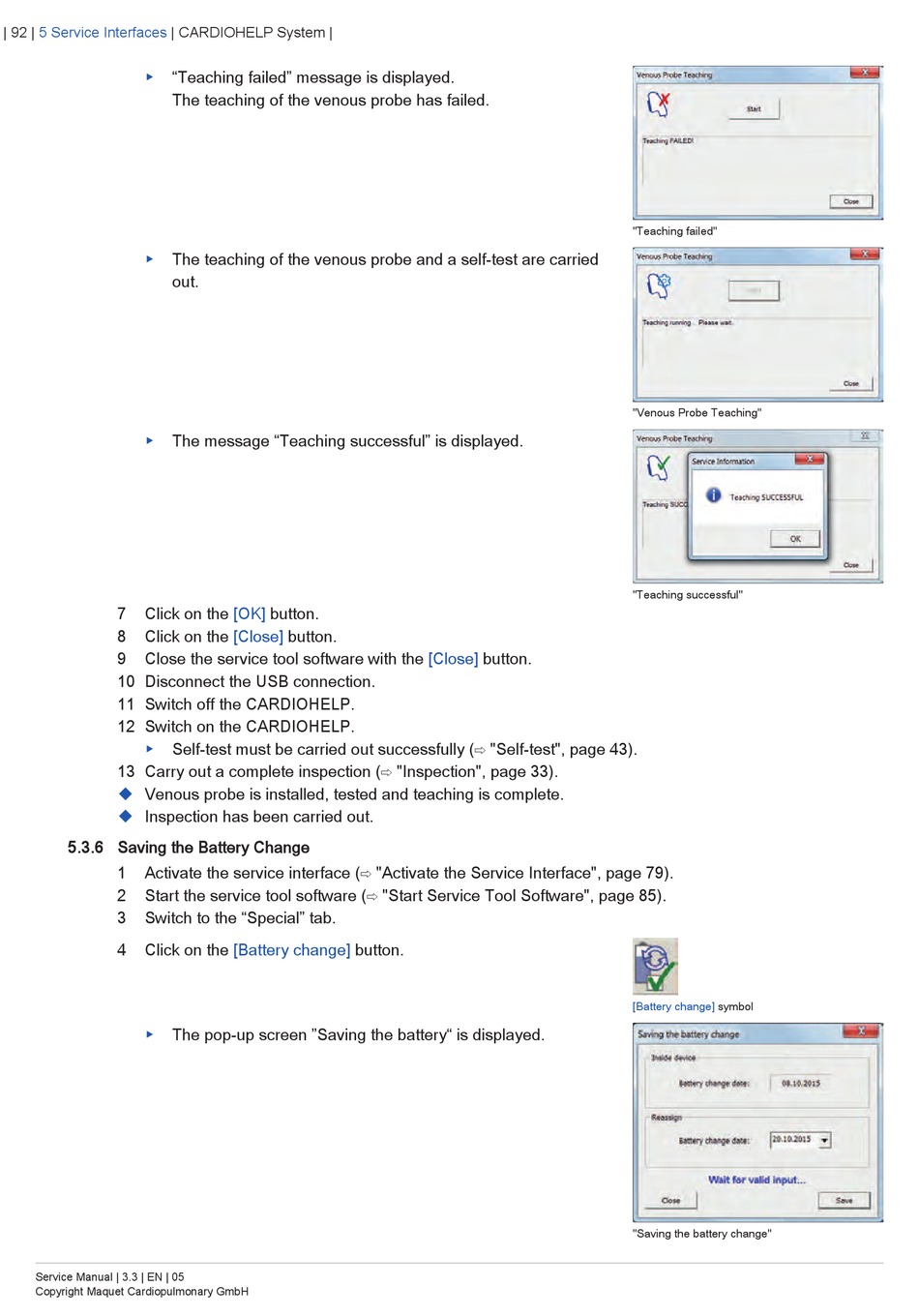

| 92 | 5 Service Interfaces | CARDIOHELP System |
▶ "Teaching failed" message is displayed.
The teaching of the venous probe has failed.
▶ The teaching of the venous probe and a self-test are carried
out.
▶ The message "Teaching successful" is displayed.
7 Click on the
8 Click on the
9 Close the service tool software with the
10 Disconnect the USB connection.
11 Switch off the CARDIOHELP.
12 Switch on the CARDIOHELP.
▶ Self-test must be carried out successfully (⇨ "Self-test", page 43).
13 Carry out a complete inspection (⇨ "Inspection", page 33).
u
Venous probe is installed, tested and teaching is complete.
u
Inspection has been carried out.

5.3.6 Saving the Battery Change

1 Activate the service interface (⇨ "Activate the Service Interface", page 79).
2 Start the service tool software (⇨ "Start Service Tool Software", page 85).
3 Switch to the "Special" tab.
4 Click on the
▶ The pop-up screen "Saving the battery" is displayed.
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
[OK] button.
[Close] button.
[Battery change] button.
[Close] button.
"Teaching failed"
"Venous Probe Teaching"
"Teaching successful"
[Battery change] symbol
"Saving the battery change"
