2 System Components
2.1 General Information
The CARDIOHELP System is a compact perfusion system, with which an extracorporeal circulation can be
driven, controlled, monitored and logged.
Further information is available in the CARDIOHELP System Instructions for Use.

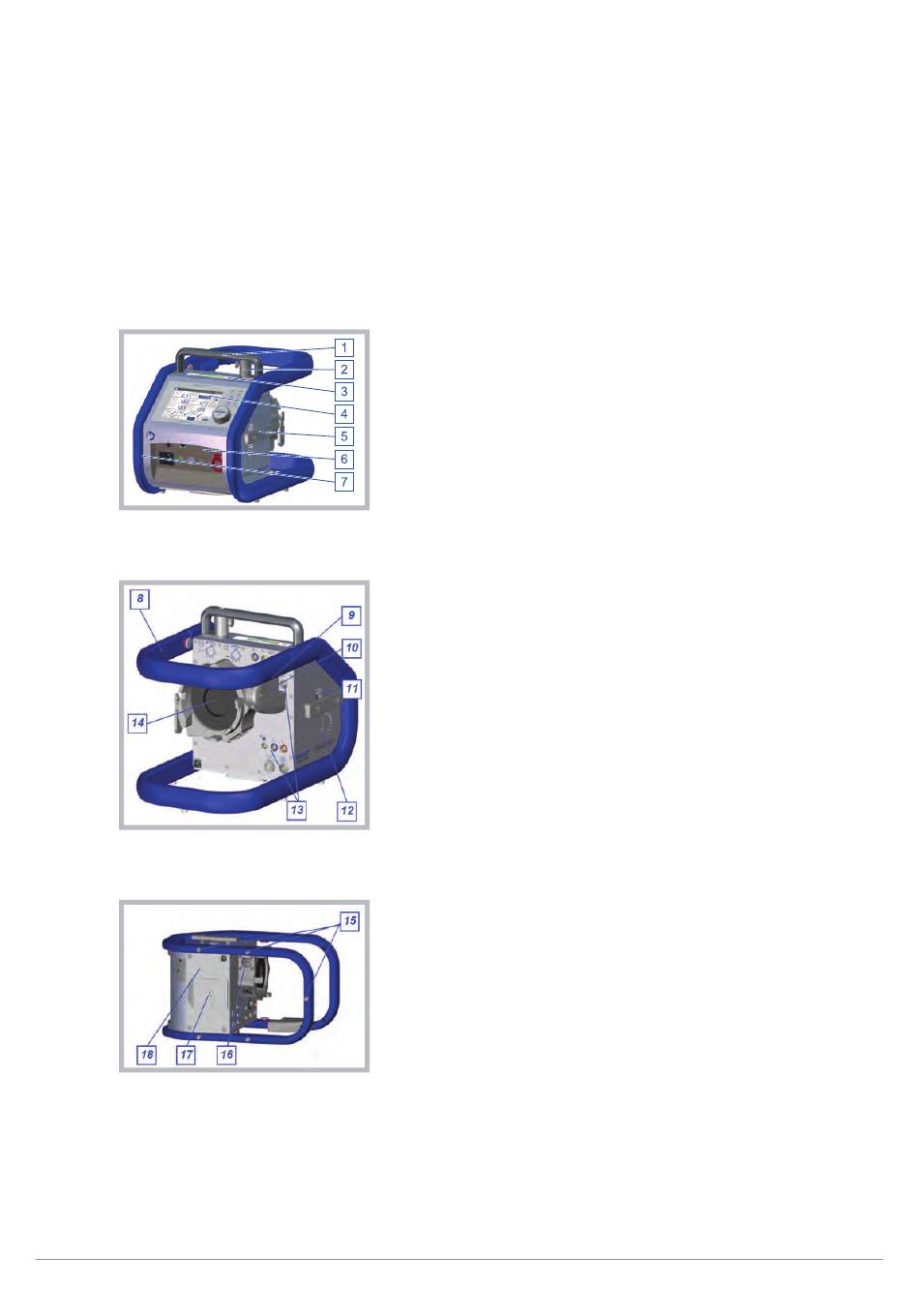

2.2 System Overview
Front
Front
Rear
Rear
Underside
Underside
1
Carrying handle
2
Holder for CARDIOHELP Emergency Drive
3
Speed indicator LED
4
Control panel
5
Standard slide rail
6
Front connections
7
Protective frame
8
Guard (unfolded)
9
Holder for venous probe
10
Venous Probe
11
Ventilation slots
12
Speaker opening
13
Sensor connections
14
Pump drive
15
Rubber feet
16
Fan drive
17
Sled
18
Battery cover
| CARDIOHELP System |
2 System Components
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| 17 |
