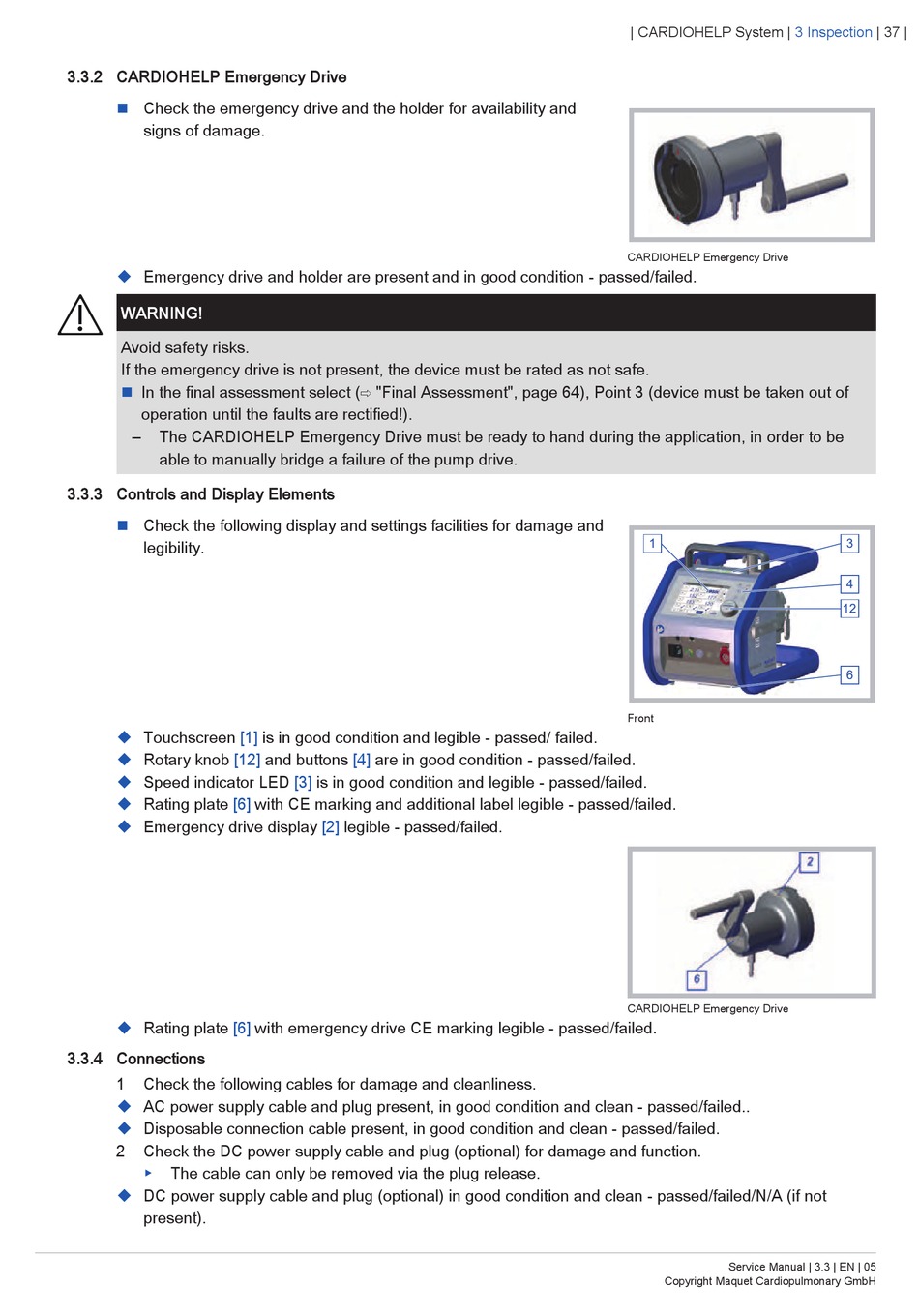

3.3.2 CARDIOHELP Emergency Drive

n
Check the emergency drive and the holder for availability and
signs of damage.
u
Emergency drive and holder are present and in good condition - passed/failed.
WARNING!
Avoid safety risks.
If the emergency drive is not present, the device must be rated as not safe.
n
In the final assessment select (⇨ "Final Assessment", page 64), Point 3 (device must be taken out of
operation until the faults are rectified!).
‒ The CARDIOHELP Emergency Drive must be ready to hand during the application, in order to be
able to manually bridge a failure of the pump drive.

3.3.3 Controls and Display Elements

n
Check the following display and settings facilities for damage and
legibility.
u Touchscreen
u
Rotary knob [12]
u
Speed indicator LED
u
Rating plate [6]
u Emergency drive display
u
Rating plate [6]

3.3.4 Connections

1 Check the following cables for damage and cleanliness.
u
AC power supply cable and plug present, in good condition and clean - passed/failed..
u
Disposable connection cable present, in good condition and clean - passed/failed.
2 Check the DC power supply cable and plug (optional) for damage and function.
▶ The cable can only be removed via the plug release.
u
DC power supply cable and plug (optional) in good condition and clean - passed/failed/N/A (if not
present).
[1] is in good condition and legible - passed/ failed.
and buttons [4] are in good condition - passed/failed.
[3] is in good condition and legible - passed/failed.
with CE marking and additional label legible - passed/failed.
[2] legible - passed/failed.
with emergency drive CE marking legible - passed/failed.
| CARDIOHELP System | 3 Inspection
CARDIOHELP Emergency Drive
Front
CARDIOHELP Emergency Drive
