Specification
Technical data
Impedance
Medium sound pressure level
Critical components
Membrane

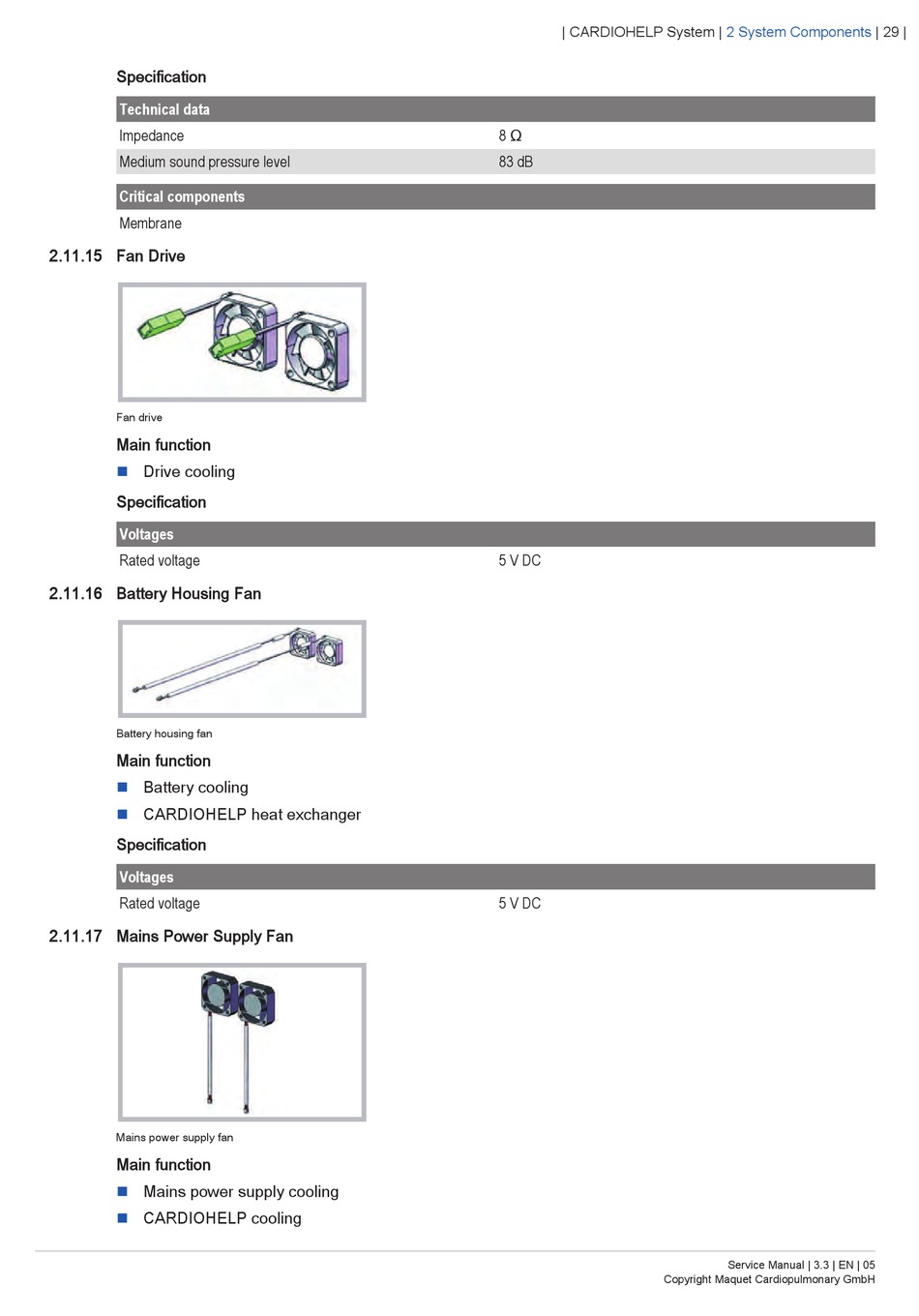

2.11.15 Fan Drive
Fan drive
Main function
n
Drive cooling
Specification
Voltages
Rated voltage
2.11.16 Battery Housing Fan
Battery housing fan
Main function
n
Battery cooling
n
CARDIOHELP heat exchanger
Specification
Voltages
Rated voltage
2.11.17 Mains Power Supply Fan
Mains power supply fan
Main function
n
Mains power supply cooling
n
CARDIOHELP cooling
| CARDIOHELP System |
8 Ω
83 dB
5 V DC
5 V DC
Copyright Maquet Cardiopulmonary GmbH
2 System Components
| 29 |
Service Manual | 3.3 | EN | 05
