| 110 | 6 Repair | CARDIOHELP System |

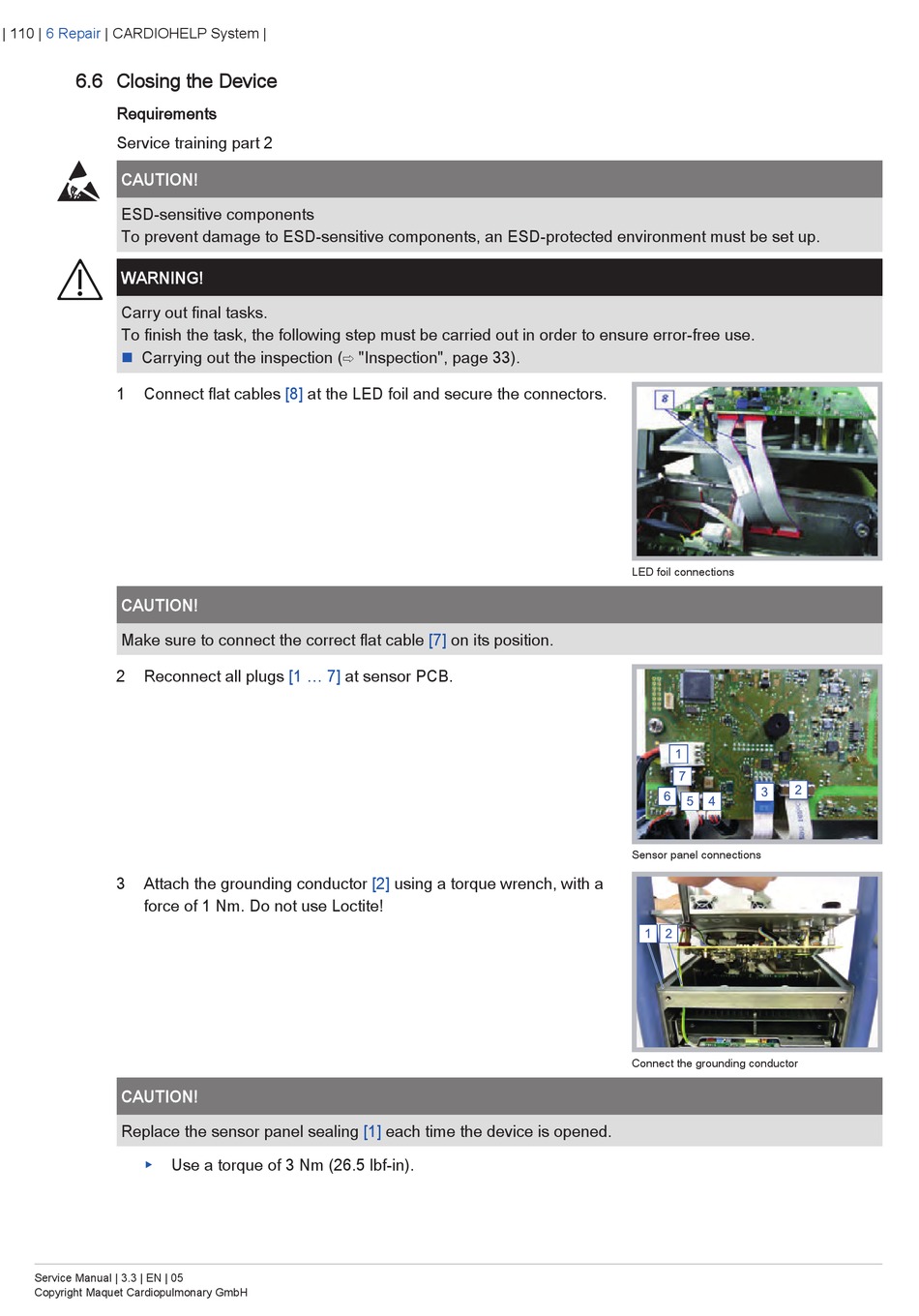

6.6 Closing the Device

Requirements
Service training part 2
CAUTION!
ESD-sensitive components
To prevent damage to ESD-sensitive components, an ESD-protected environment must be set up.
WARNING!
Carry out final tasks.
To finish the task, the following step must be carried out in order to ensure error-free use.
n
Carrying out the inspection (⇨ "Inspection", page 33).
1 Connect flat cables
CAUTION!
Make sure to connect the correct flat cable
2 Reconnect all plugs
3 Attach the grounding conductor
force of 1 Nm. Do not use Loctite!
CAUTION!
Replace the sensor panel sealing
▶ Use a torque of 3 Nm (26.5 lbf-in).
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
[8] at the LED foil and secure the connectors.
[7] on its position.
[1 ... 7] at sensor PCB.
[2] using a torque wrench, with a
[1] each time the device is opened.
LED foil connections
Sensor panel connections
Connect the grounding conductor
