10 Check the licensing on the CARDIOHELP (⇨ "Check Licensing
and Country Settings", page 44).
11 Replace the rotary knob cover according to the valid license.
12 Carry out the inspection (⇨ "Inspection", page 33).
u CARDIOHELP-i license key saved ____________.
u
Inspection has been carried out.

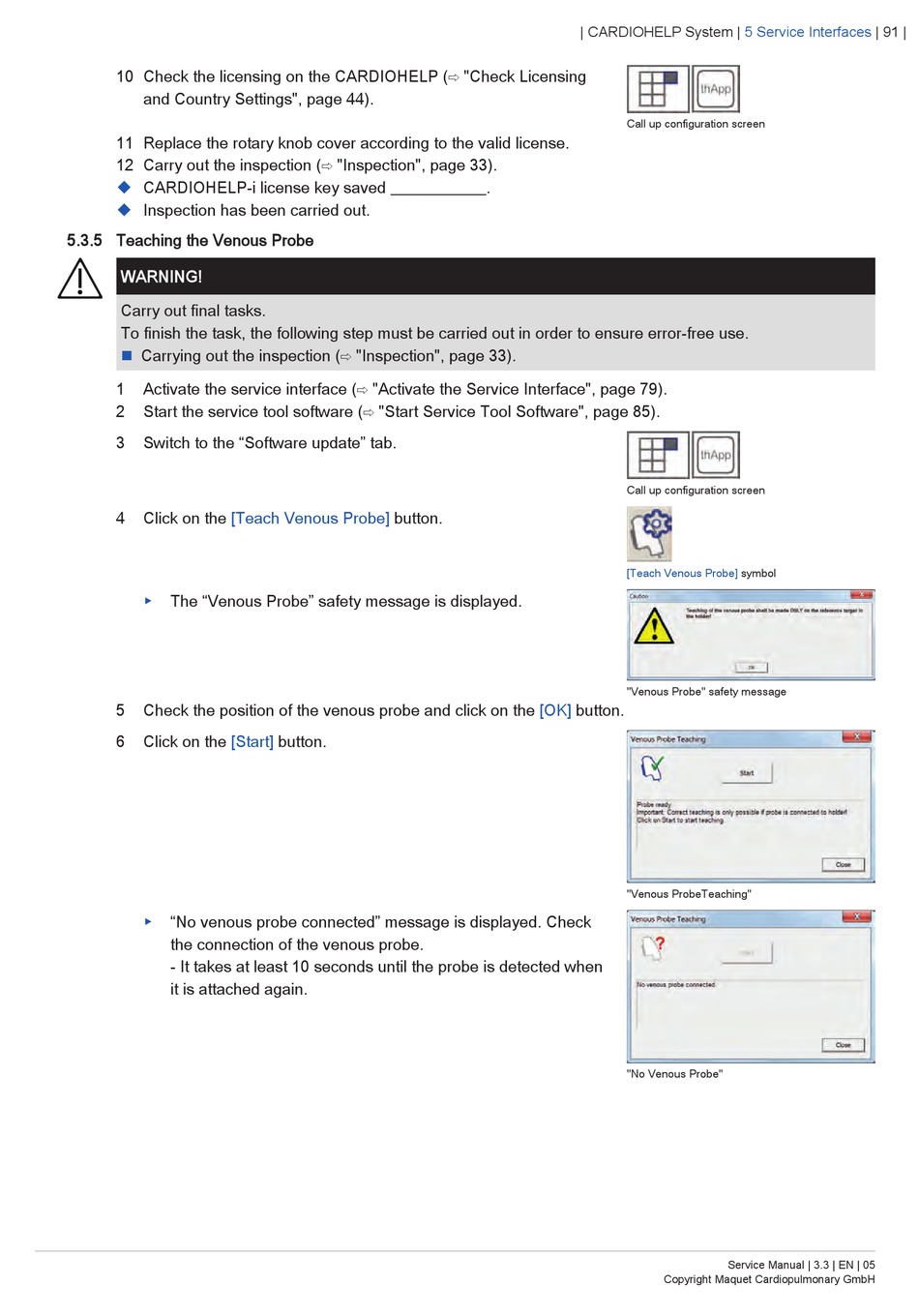

5.3.5 Teaching the Venous Probe

WARNING!
Carry out final tasks.
To finish the task, the following step must be carried out in order to ensure error-free use.
n
Carrying out the inspection (⇨ "Inspection", page 33).
1 Activate the service interface (⇨ "Activate the Service Interface", page 79).
2 Start the service tool software (⇨ "Start Service Tool Software", page 85).
3 Switch to the "Software update" tab.
4 Click on the [Teach Venous Probe]
▶ The "Venous Probe" safety message is displayed.
5 Check the position of the venous probe and click on the
6 Click on the [Start]
▶ "No venous probe connected" message is displayed. Check
the connection of the venous probe.
- It takes at least 10 seconds until the probe is detected when
it is attached again.
button.
button.
| CARDIOHELP System |
Call up configuration screen
Call up configuration screen
[Teach Venous Probe]
"Venous Probe" safety message
[OK] button.
"Venous ProbeTeaching"
"No Venous Probe"
Copyright Maquet Cardiopulmonary GmbH
5 Service Interfaces | 91 |
symbol
