Rear
Sensor connections

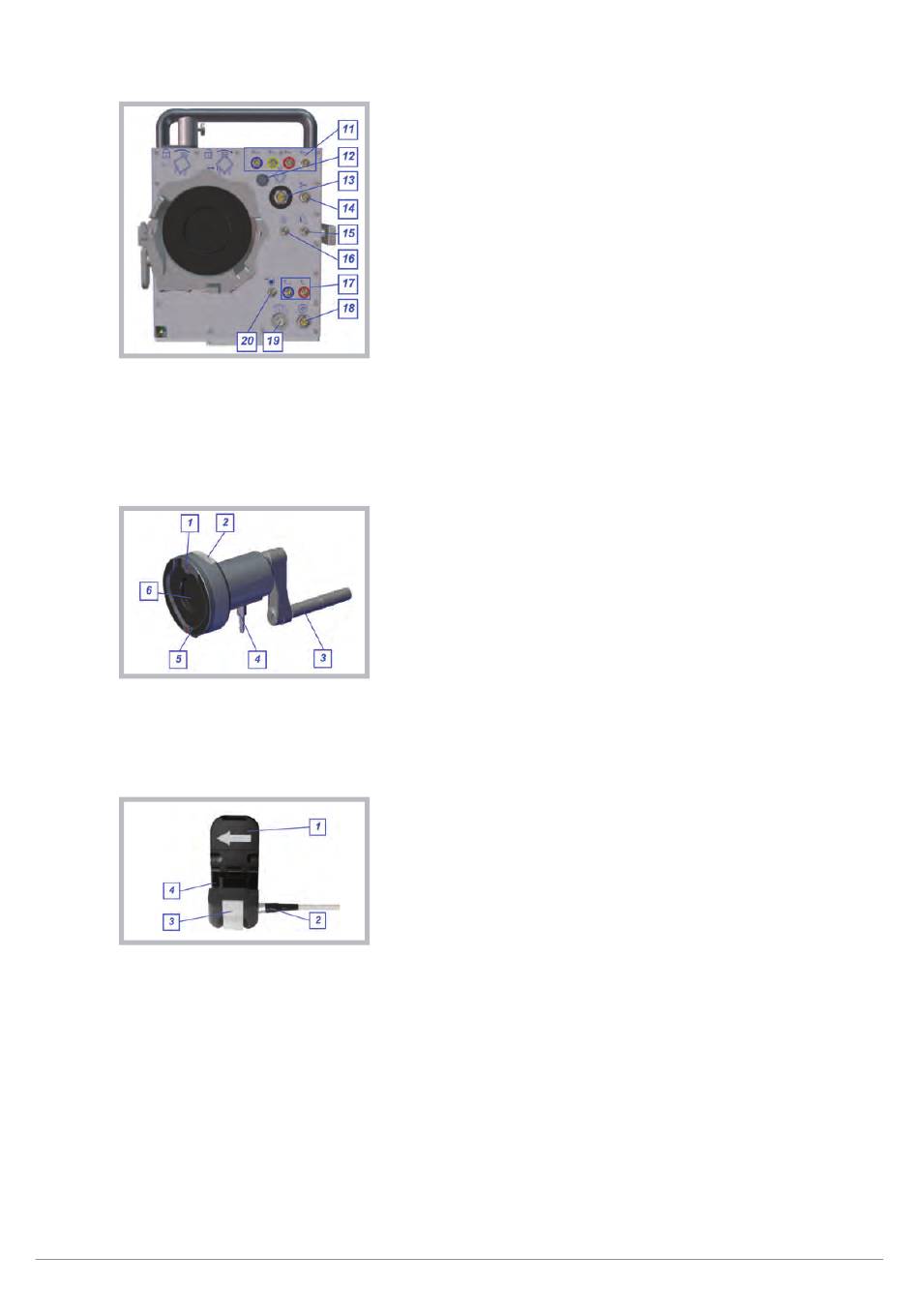

2.5 CARDIOHELP Emergency Drive
The CARDIOHELP Emergency Drive is the emergency drive for the CARDIOHELP System.
The term emergency drive will be used in the following descriptions.
CARDIOHELP Emergency Drive
2.6 Flow/Bubble Sensor
The combined flow/bubble sensor is for flow measurement and arterial bubble monitoring.
Flow/bubble sensor
11
Interfaces for external pressure sensors
12
Holder for connection cable of disposable
13
Interface for sensors of disposable
14
External clamp (no function)
15
Interface for venous probe
16
External bubble sensor
17
Interfaces for external temperature sensors
18
External drive (no function)
19
Interface for flow/bubble sensor
20
Interface for level sensor
1
Locating lug
2
Speed indicator LED
3
Hand crank (unfolded)
4
Fastening bolt
5
Locking device
6
Pump drive
1
Cover with flow direction indicator
2
"CARDIOHELP" connection
3
Locking device
4
Tube retainer
| CARDIOHELP System |
2 System Components
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| 19 |
