Getinge MAQUET CARDIOHELP Service Manual page 131

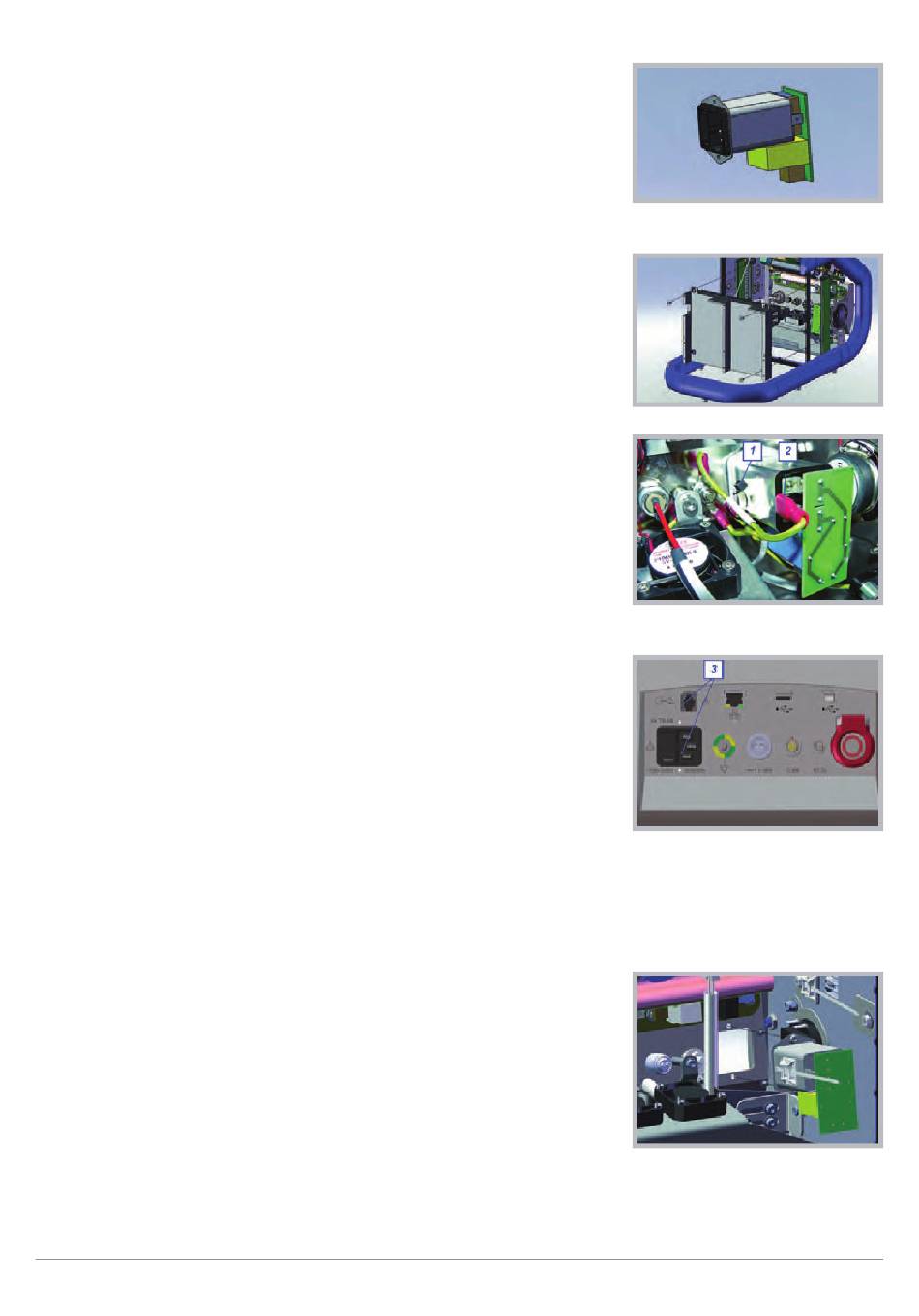

1 Open the device (⇨ "Opening the Device", page 108).
2 Remove the battery housing (⇨ "Removing Battery Housing",
page 116).
3 Cut the cable tie [1].
4 Disconnect the grounding wire [2].
5 Unscrew the two screws [3].
6 Disconnect the plug from AC connector PCB.
7 Replace the AC connector plug.
8 Connect plug at AC connector PCB.
9 Seal plug with a thin film of Hylomar.
10 Attach the AC connector plug with two screws
11 Connect grounding wire
12 Secure the wire with a new cable tie [1].
13 Assemble the battery housing (⇨ "Assemble Battery Housing", page 117).
14 Close the device (⇨ "Closing the Device", page 110).
[3]
[2] at AC connector plug.
| CARDIOHELP System |
AC connector plug
Battery housing
AC connector plug
Front connections
with a torque of 0.5 Nm and Loctite 270.
AC connector plug
Copyright Maquet Cardiopulmonary GmbH
6 Repair | 131 |
Service Manual | 3.3 | EN | 05
