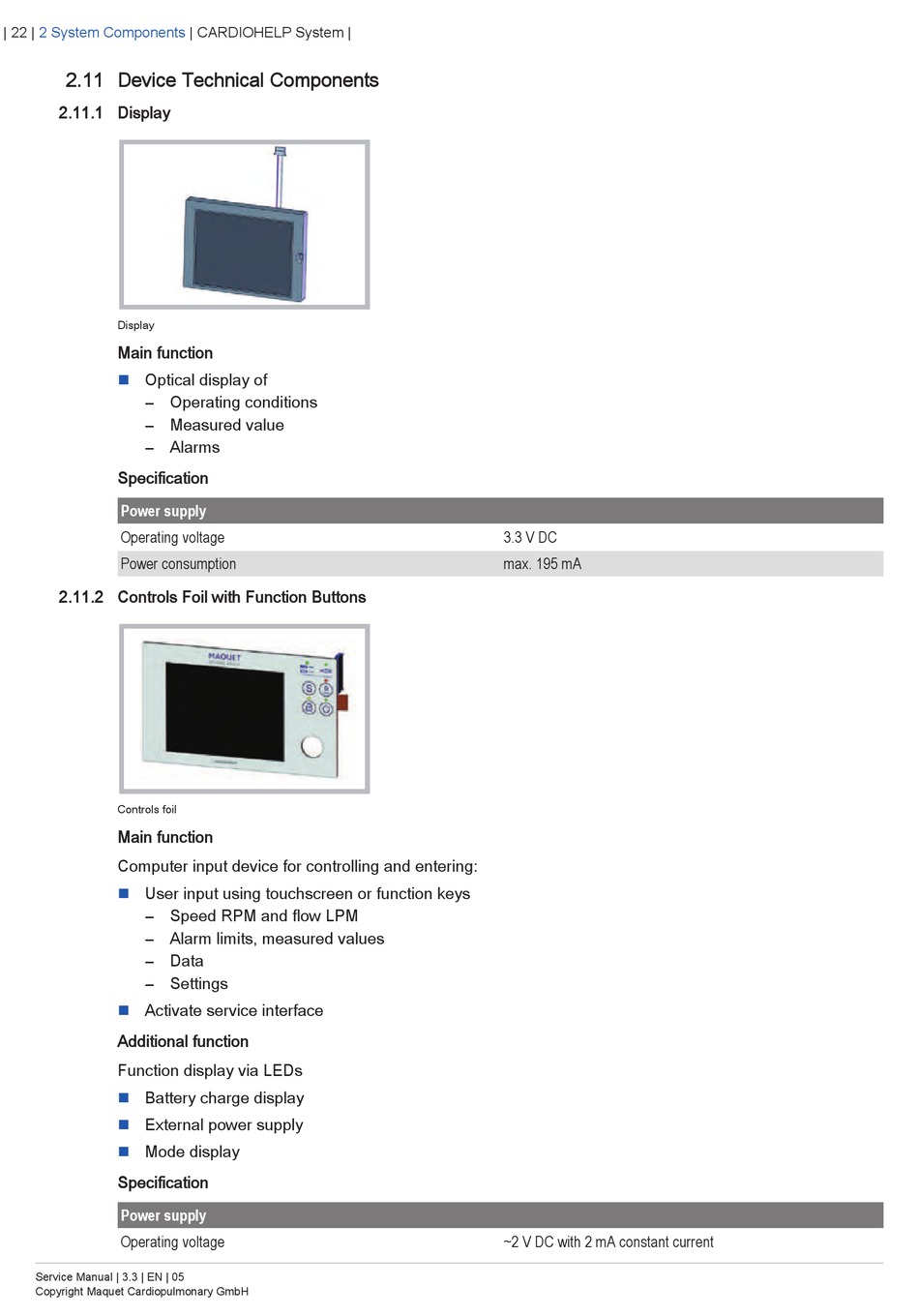

2.11 Device Technical Components

2.11.1 Display

Display
Main function
n
Optical display of
– Operating conditions
– Measured value
– Alarms
Specification
Power supply
Operating voltage
Power consumption

2.11.2 Controls Foil with Function Buttons

Controls foil
Main function
Computer input device for controlling and entering:
n User input using touchscreen or function keys
– Speed RPM and flow LPM
– Alarm limits, measured values
– Data
– Settings
n Activate service interface
Additional function
Function display via LEDs
n Battery charge display
n External power supply
n Mode display
Specification
Power supply
Operating voltage
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| CARDIOHELP System |
3.3 V DC
max. 195 mA
~2 V DC with 2 mA constant current
