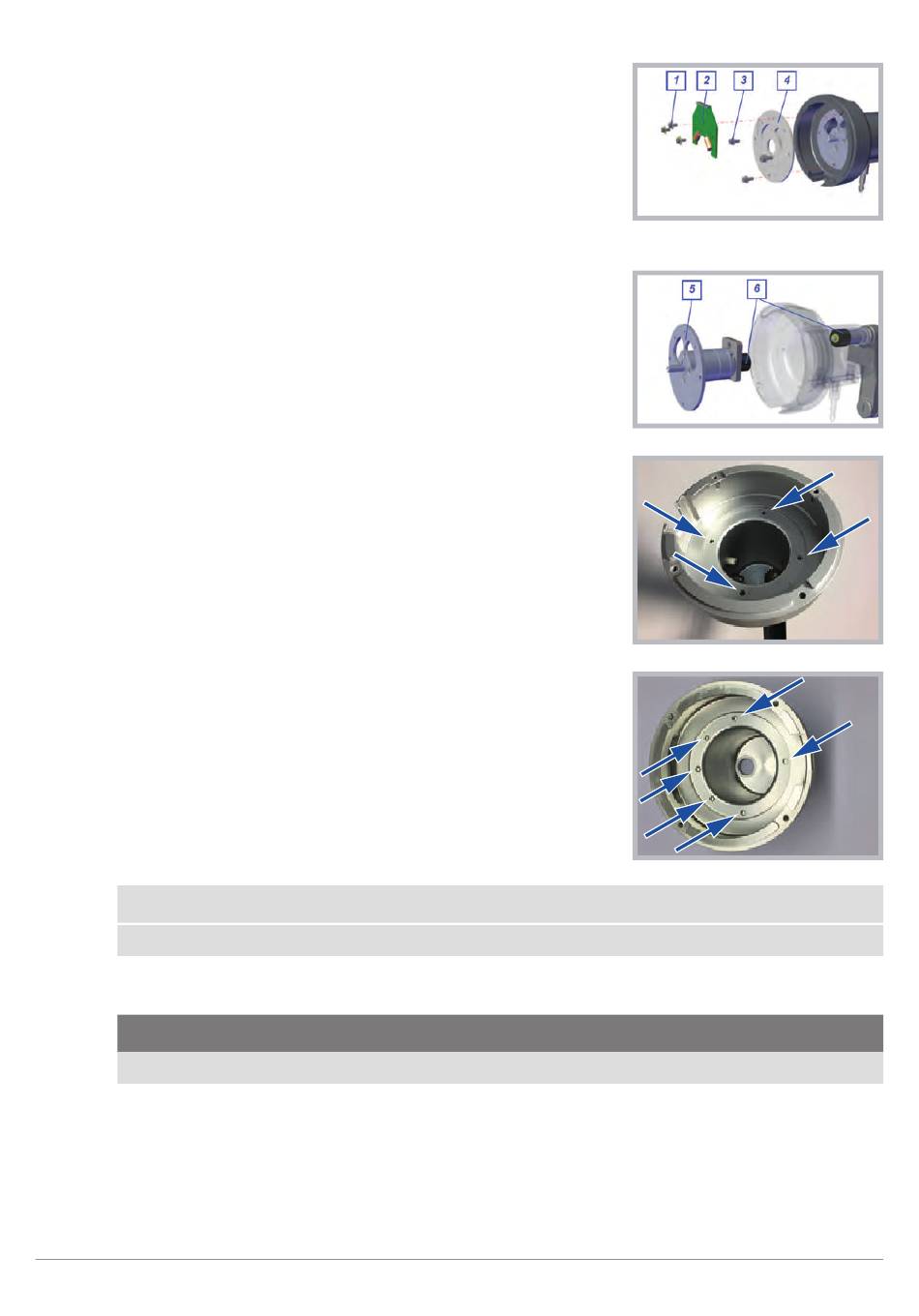

2 Unscrew the metal screws with plastic washer
emergency drive PCB [2].
3 Unscrew the screws with metal washer
4 Remove the sandwich plate with gear [5].
5 If the emergency drive does not have notches, use M3X6 mm
screws.
6 If the emergency drive has notches, use M3X8 mm screws.
NOTE
Please discard screws which are not used, from the transport case.
7 Clean the gear wheels [6].
8 Attach 4g of new Maquet Lubrication Grease to the gear wheels.
CAUTION!
Check the expiration date of the Maquet Lubrication Grease.
[1] and lift up the
[3] and lift up the guard plate [4].
| CARDIOHELP System |
Guard plate
Sandwich plate with gear
M3X6
M3X8
