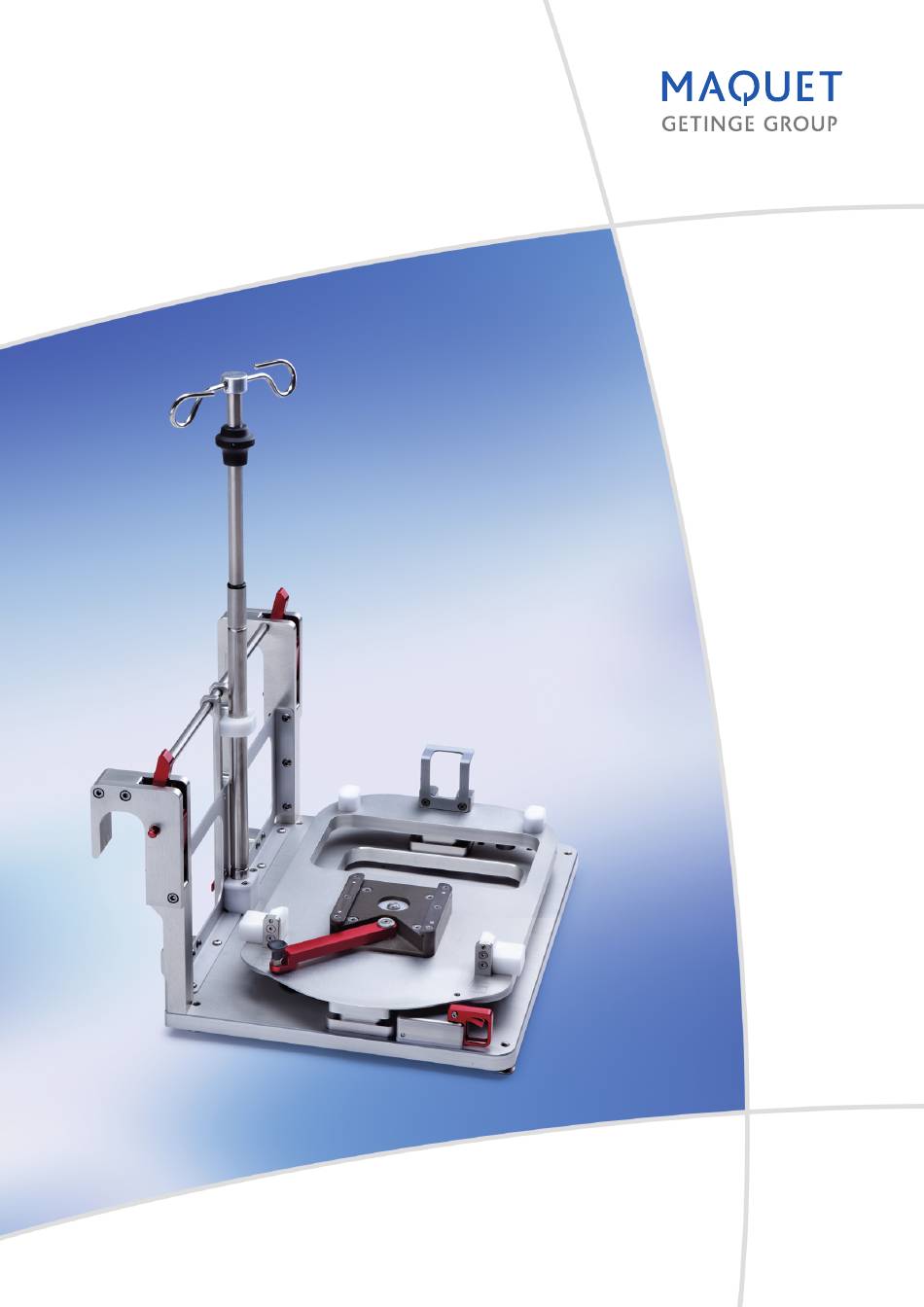

- Page 1 INSTRUCTIONS FOR USE INTRA-HOSPITAL PATIENT TRANSPORT...
- Page 2 Subject to technical changes Owing to our policy of continuous product development, the illustrations and technical data contained in this document may differ slightly from the current version of the device. Manufacturer Maquet Cardiopulmonary GmbH Kehler Strasse 31 76437 Rastatt GERMANY www.getinge.com info.cp@getinge.com...
- Page 3 | Accessories for Patient Transport | Table of Contents | 3 | Table of Contents English Description Safety System Components Installation and Operation Cleaning and Disinfection After Every Use | 11 Maintenance | 12 Technical Data | 12 Instructions for Use | 2.2 | en | 06 Copyright Maquet Cardiopulmonary GmbH...
- Page 4 | 4 | 1 Description | Accessories for Patient Transport | Accessories for Patient Transport 1 Description The following components are accessories for the CARDIOHELP System for intra-hospital patient transport. Intra-hospital patient transport is conveyance of the patient within the hospital. Transport guard (Transport Guard for CARDIOHELP Disposables) The transport guard secures a HLS Set Advanced.
- Page 5 | Accessories for Patient Transport | 2 Safety | 5 | WARNING! Follow the instructions supplied with other components of the system and the holders used. WARNING! An inadequate power supply can put the CARDIOHELP-i out of service. Therefore, please note: Only ever start the application when the batteries of the CARDIOHELP-i are fully charged and calibrated.
- Page 6 | 6 | 3 System Components | Accessories for Patient Transport | WARNING! The entire CARDIOHELP System can tolerate ESD pulses of up to ± 15 kV. The controls (touchscreen, rotary knob, buttons) can withstand ESD impulses up to ± 15 kV. To avoid damaging the device, the user should discharge his/her body by touching a large or grounded piece of metal before he/she touches the patient or connects/disconnects sensors.
- Page 7 | Accessories for Patient Transport | 4 Installation and Operation | 7 | Date of manufacture: Month-Year in which the device was made. Manufacturer as defined by Directive 93/42/EEC concerning medical devices. 4 Installation and Operation WARNING! All components must be installed in such a way that the user can monitor and operate them during patient transport.
- Page 8 | 8 | 4 Installation and Operation | Accessories for Patient Transport | 4.1.1 Removing the Transport Guard for CARDIOHELP Disposables Open the fastener of the Transport Guard for CARDIOHELP Disposables and remove the fixing hooks from the openings. 4.2 Attaching the CARDIOHELP to the Mobile Holder HKH 8860 CAUTION! The Cardiohelp Mobile Holder HKH 8860 is mounted on the left-hand side on delivery: The position of operation of the CARDIOHELP-i is on the left side of the mobile holder.
- Page 9 | Accessories for Patient Transport | 4 Installation and Operation | 9 | Fig. 3: Mobile holder on left - Note: In order to avoid safety risks. Secure all screws with thread-locking adhesive to prevent them from becoming loose. Note: All screws are additionally secured. As such, additional force may be required to release the screws. Holding plate Holder Vibration absorbers...
- Page 10 | 10 | 4 Installation and Operation | Accessories for Patient Transport | Position the holding plate [1] on the vibration absorbers as per Figure 7. Fig. 7: Mounting the holding plate Secure the holding plate [1] with 4 socket screws (M6; TX30) with the corresponding tightening torque (9 Nm).
- Page 11 | Accessories for Patient Transport | 5 Cleaning and Disinfection After Every Use | 11 | Set the upper part of the mast to the desired height and release the plastic ring. Make sure that the upper part of the mast has engaged. 4.4 Attaching the Mobile Holder to a Stretcher You can attach the mobile holder to a stretcher using the two lockable hooks.
- Page 12 Repairs may only be carried out by a service technician authorized by Maquet Cardiopulmonary. 6.1 Authorized Service For inspection or repair, contact your local service point. This can be found on the Getinge website (http://www.getinge.com). Select your country or region. Click on "Contact" and fill out the contact form. 7 Technical Data 7.1 Accessories for Intra-Hospital Patient Transport...
- Page 14 Maquet Cardiopulmonary GmbH Kehler Strasse 31 76437 Rastatt GERMANY www.getinge.com info.cp@getinge.com...
