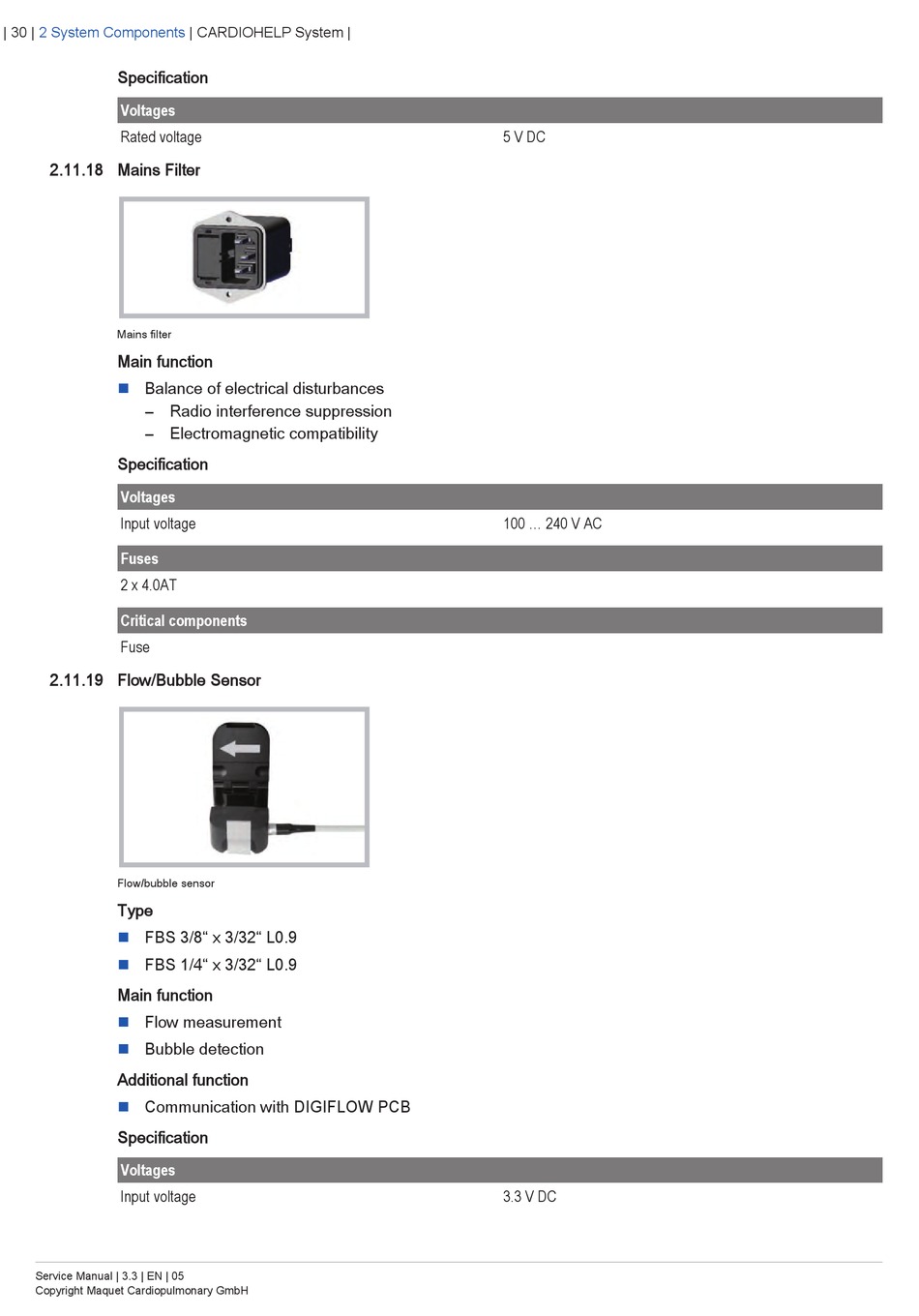

2 System Components
Specification
Voltages
Rated voltage
2.11.18 Mains Filter
Mains filter
Main function
n
Balance of electrical disturbances
– Radio interference suppression
– Electromagnetic compatibility
Specification
Voltages
Input voltage
Fuses
2 x 4.0AT
Critical components
Fuse
2.11.19 Flow/Bubble Sensor
Flow/bubble sensor
Type
n
FBS 3/8" x 3/32" L0.9
n
FBS 1/4" x 3/32" L0.9
Main function
n
Flow measurement
n
Bubble detection
Additional function
n
Communication with DIGIFLOW PCB
Specification
Voltages
Input voltage
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| CARDIOHELP System |
5 V DC
100 ... 240 V AC
3.3 V DC
