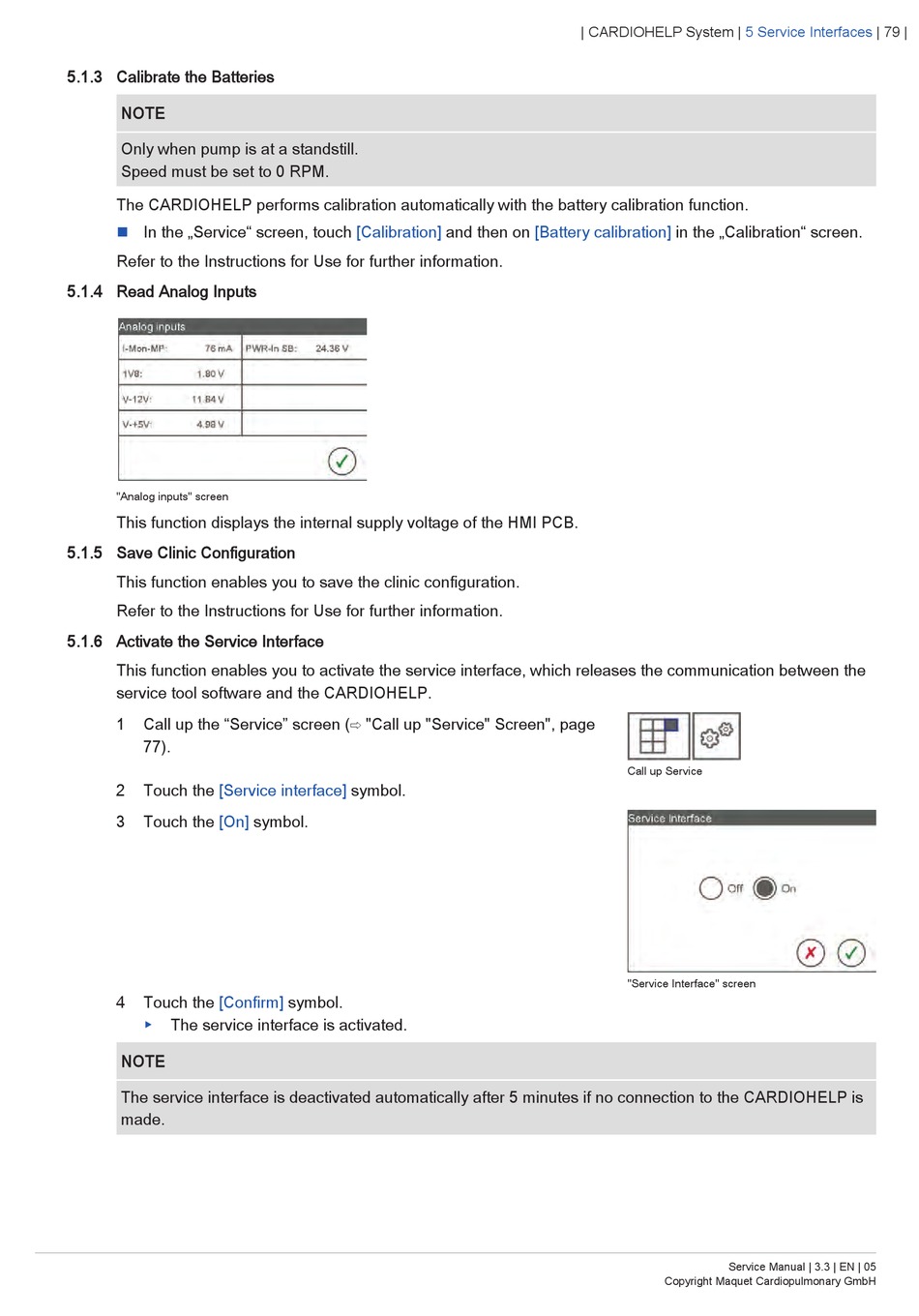

5.1.3 Calibrate the Batteries

NOTE
Only when pump is at a standstill.
Speed must be set to 0 RPM.
The CARDIOHELP performs calibration automatically with the battery calibration function.
n
In the „Service" screen, touch
Refer to the Instructions for Use for further information.

5.1.4 Read Analog Inputs

"Analog inputs" screen
This function displays the internal supply voltage of the HMI PCB.

5.1.5 Save Clinic Configuration

This function enables you to save the clinic configuration.
Refer to the Instructions for Use for further information.

5.1.6 Activate the Service Interface

This function enables you to activate the service interface, which releases the communication between the
service tool software and the CARDIOHELP.
1 Call up the "Service" screen (⇨ "Call up "Service" Screen", page
77).
2 Touch the [Service interface]
3 Touch the [On]
4 Touch the [Confirm]
▶ The service interface is activated.
NOTE
The service interface is deactivated automatically after 5 minutes if no connection to the CARDIOHELP is
made.
[Calibration]
symbol.
symbol.
symbol.
