| 24 | 2 System Components
Specification
Power supply
Input voltage
Power consumption

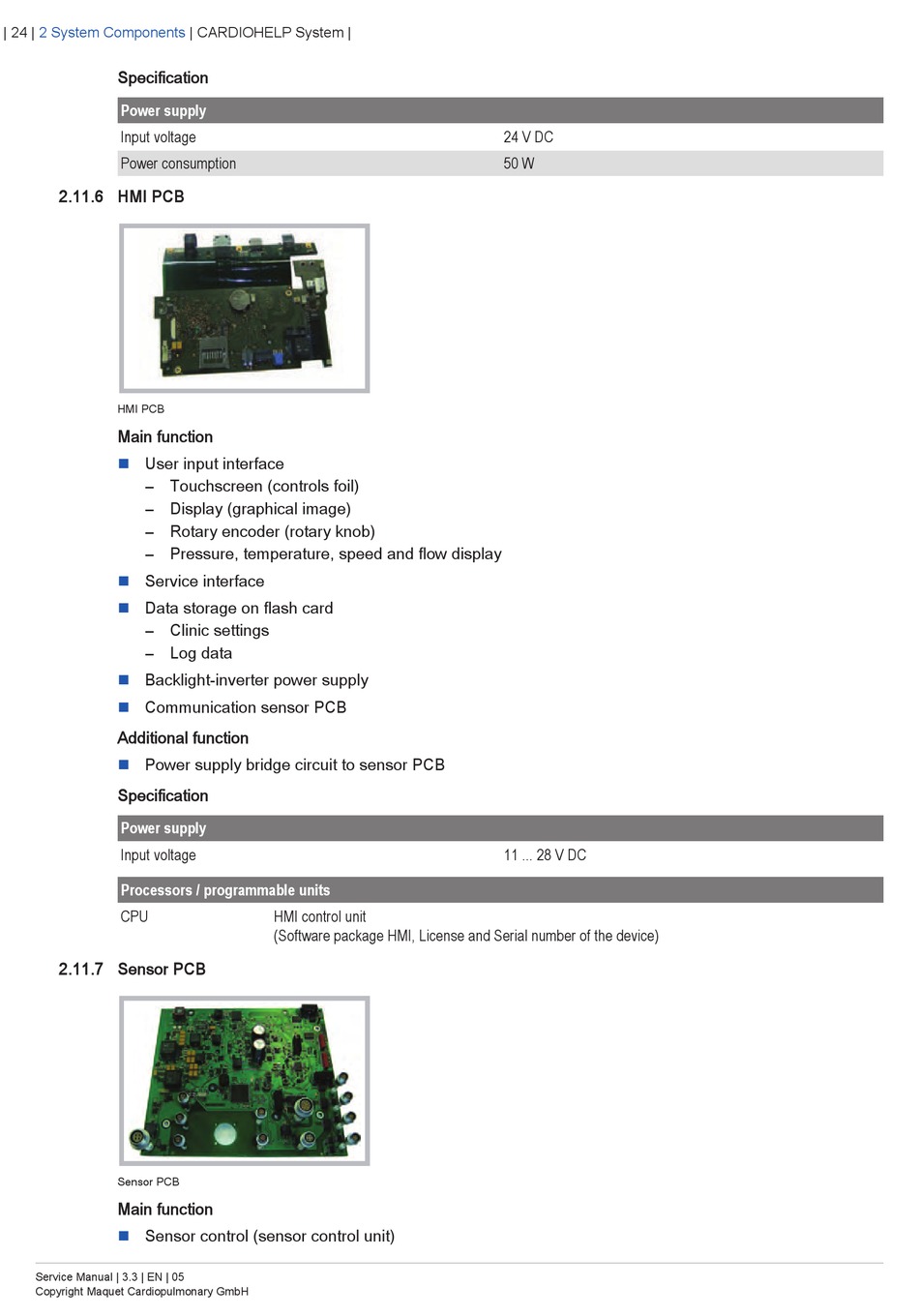

2.11.6 HMI PCB

HMI PCB
Main function
n User input interface
– Touchscreen (controls foil)
– Display (graphical image)
– Rotary encoder (rotary knob)
– Pressure, temperature, speed and flow display
n Service interface
n Data storage on flash card
– Clinic settings
– Log data
n
Backlight-inverter power supply
n
Communication sensor PCB
Additional function
n
Power supply bridge circuit to sensor PCB
Specification
Power supply
Input voltage
Processors / programmable units
CPU

2.11.7 Sensor PCB

Sensor PCB
Main function
n Sensor control (sensor control unit)
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| CARDIOHELP System |
HMI control unit
(Software package HMI, License and Serial number of the device)
24 V DC
50 W
11 ... 28 V DC
