9 Diagrams
| CARDIOHELP System |
9 Diagrams

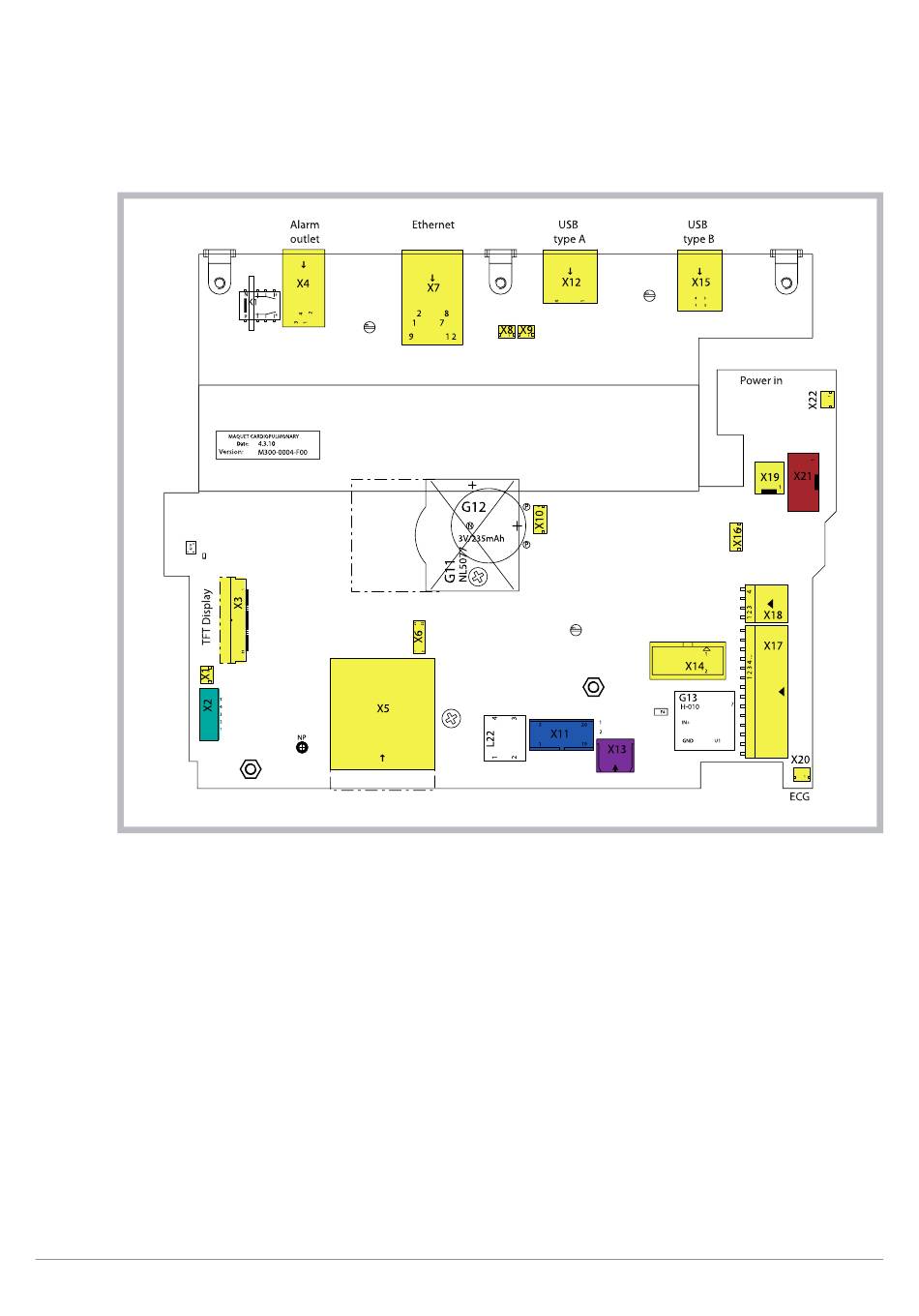

9.1 Access Layout
9.1.1 HMI PCB
HMI PCB
X1
Speaker
X2
Backlight inverter
X3
Display
X4
Alarm output
X5
SD card
X6
--
X7
Ethernet
X8
Power supply fan 1
X9
Power supply fan 2
X10 CAN input
X11 Connection sensor PCB
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
X12 USB stick
X13 Power for sensor PCB
X14 Rotary knob encoder
X15 USB type B
X16 Emergency button
X17 Touchpanel buttons
X18 Touchscreen
X19 DC input
X20 ECG signal to sensor PCB
X21 Power supply 24 VDC
X22 ECG signal input
