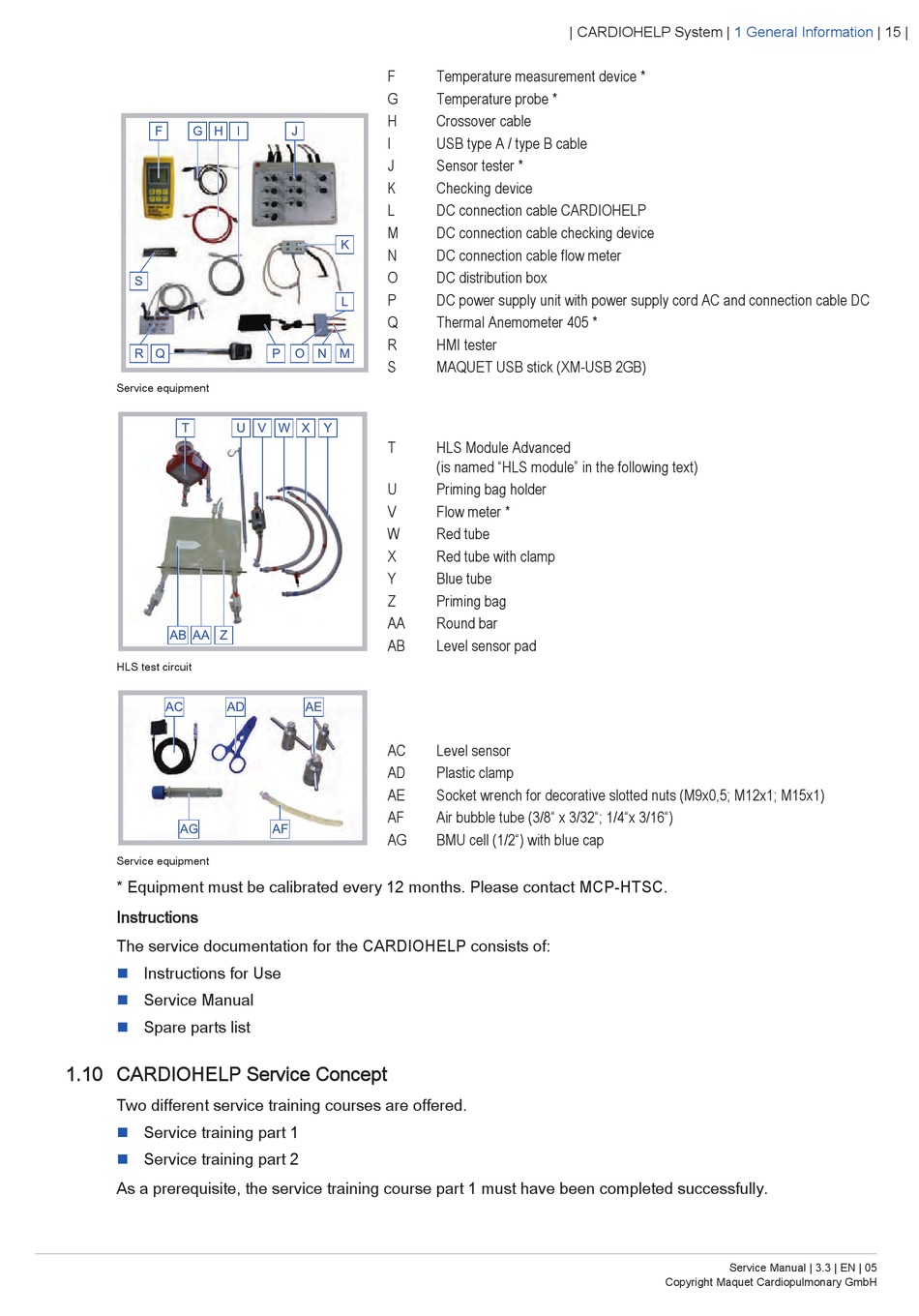

Service equipment
HLS test circuit
Service equipment
* Equipment must be calibrated every 12 months. Please contact MCP-HTSC.
Instructions
The service documentation for the CARDIOHELP consists of:
n
Instructions for Use
n
Service Manual
n
Spare parts list

1.10 CARDIOHELP Service Concept

Two different service training courses are offered.
n
Service training part 1
n
Service training part 2
As a prerequisite, the service training course part 1 must have been completed successfully.
F Temperature measurement device *
G Temperature probe *
H Crossover cable
I USB type A / type B cable
J Sensor tester *
K Checking device
L DC connection cable CARDIOHELP
M DC connection cable checking device
N DC connection cable flow meter
O DC distribution box
P DC power supply unit with power supply cord AC and connection cable DC
Q Thermal Anemometer 405 *
R HMI tester
S MAQUET USB stick (XM-USB 2GB)
T HLS Module Advanced
(is named "HLS module" in the following text)
U Priming bag holder
V Flow meter *
W Red tube
X Red tube with clamp
Y Blue tube
Z Priming bag
AA Round bar
AB Level sensor pad
AC Level sensor
AD Plastic clamp
AE Socket wrench for decorative slotted nuts (M9x0,5; M12x1; M15x1)
AF Air bubble tube (3/8" x 3/32"; 1/4"x 3/16")
AG BMU cell (1/2") with blue cap
| CARDIOHELP System | 1 General Information
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
| 15 |
