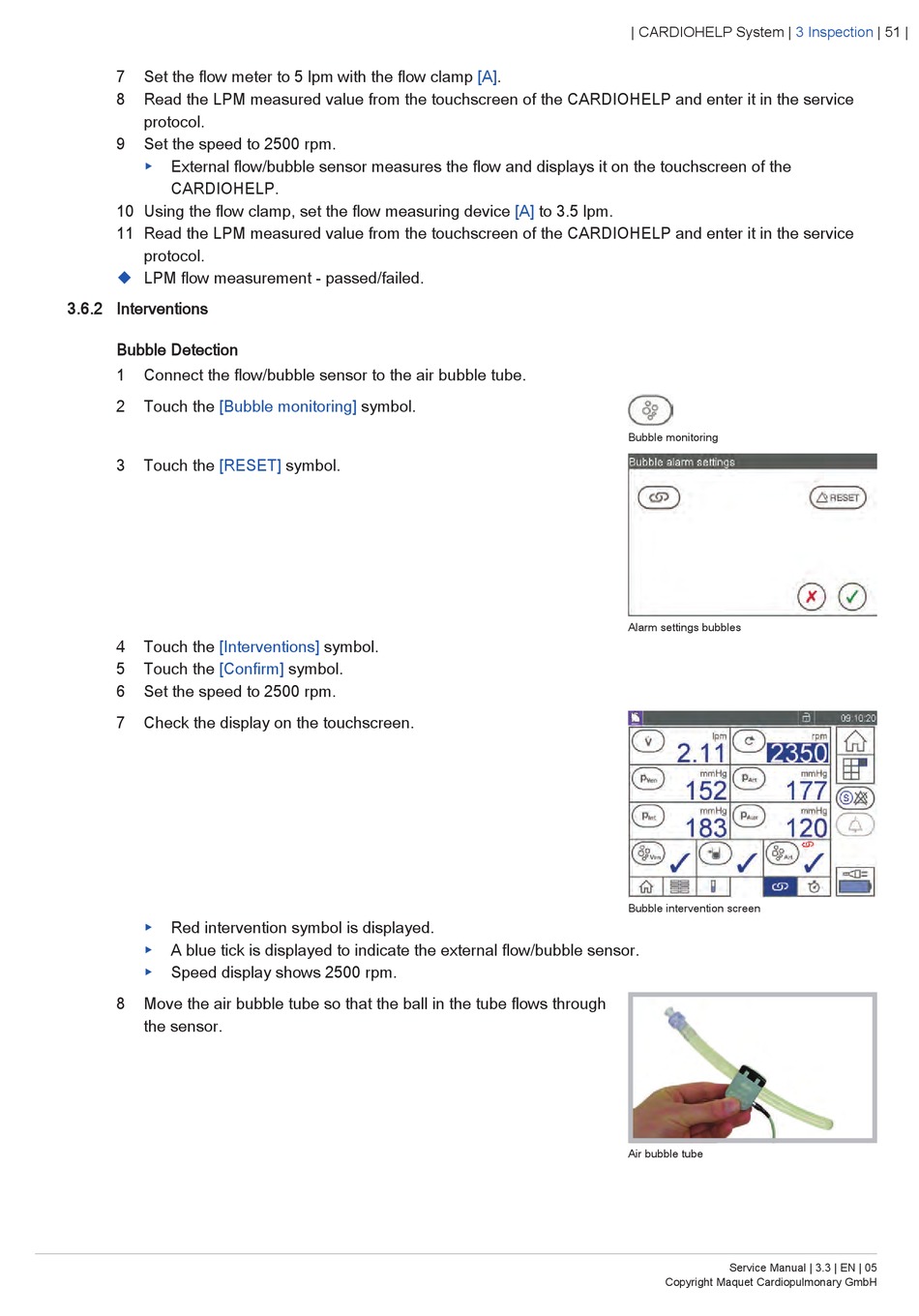

7 Set the flow meter to 5 lpm with the flow clamp [A].
8 Read the LPM measured value from the touchscreen of the CARDIOHELP and enter it in the service
protocol.
9 Set the speed to 2500 rpm.
▶ External flow/bubble sensor measures the flow and displays it on the touchscreen of the
CARDIOHELP.
10 Using the flow clamp, set the flow measuring device
11 Read the LPM measured value from the touchscreen of the CARDIOHELP and enter it in the service
protocol.
u
LPM flow measurement - passed/failed.

3.6.2 Interventions

Bubble Detection
1 Connect the flow/bubble sensor to the air bubble tube.
2 Touch the [Bubble monitoring]
3 Touch the [RESET]
4 Touch the [Interventions]
5 Touch the [Confirm]
6 Set the speed to 2500 rpm.
7 Check the display on the touchscreen.
▶ Red intervention symbol is displayed.
▶ A blue tick is displayed to indicate the external flow/bubble sensor.
▶ Speed display shows 2500 rpm.
8 Move the air bubble tube so that the ball in the tube flows through
the sensor.
symbol.
symbol.
symbol.
symbol.
| CARDIOHELP System |
[A] to 3.5 lpm.
Bubble monitoring
Alarm settings bubbles
Bubble intervention screen
Air bubble tube
