Getinge MAQUET CARDIOHELP Service Manual page 38

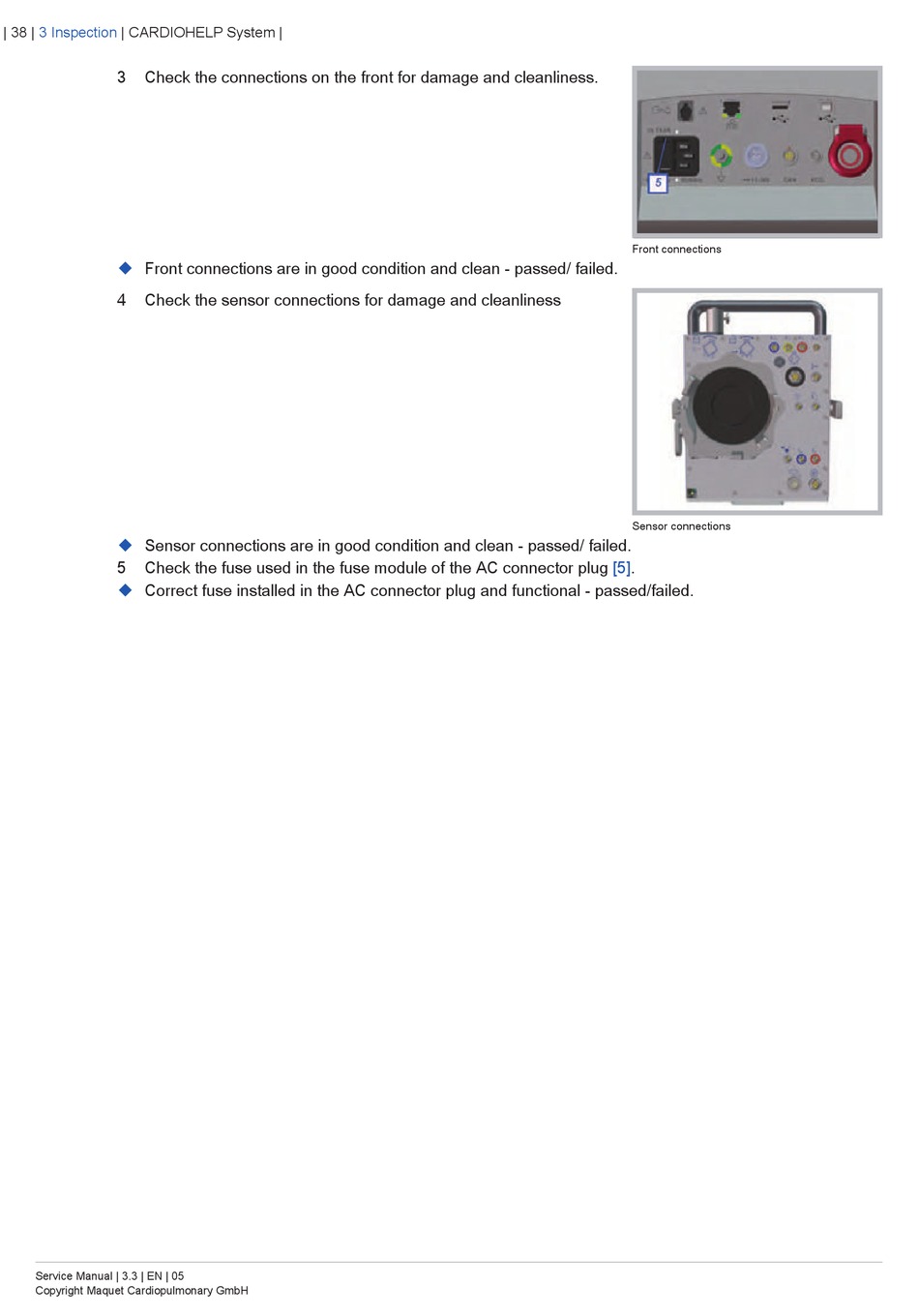

| 38 | 3 Inspection | CARDIOHELP System |
3 Check the connections on the front for damage and cleanliness.
u
Front connections are in good condition and clean - passed/ failed.
4 Check the sensor connections for damage and cleanliness
u Sensor connections are in good condition and clean - passed/ failed.
5 Check the fuse used in the fuse module of the AC connector plug [5].
u
Correct fuse installed in the AC connector plug and functional - passed/failed.
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
Front connections
Sensor connections
