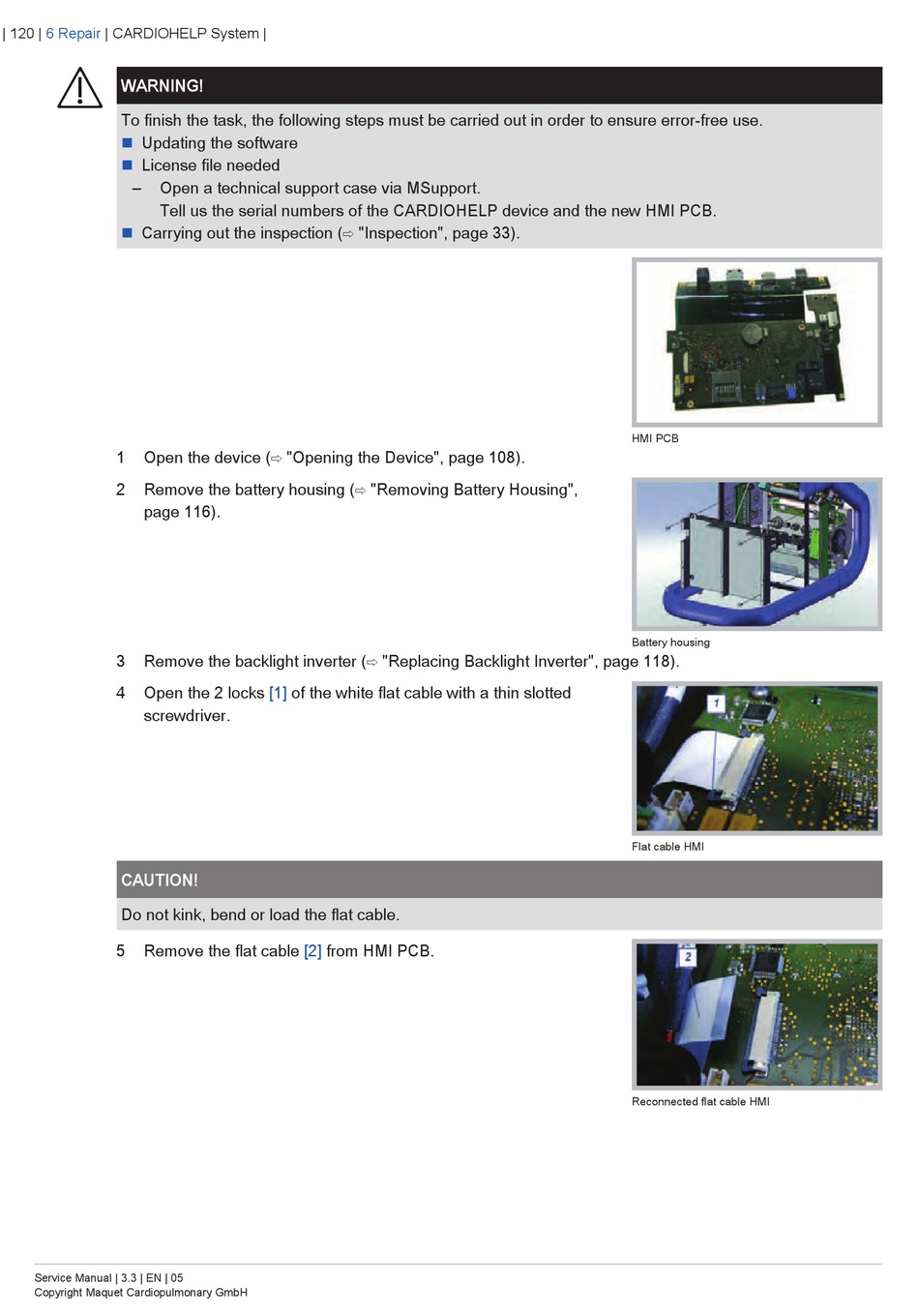

| 120 |
6 Repair
| CARDIOHELP System |
WARNING!
To finish the task, the following steps must be carried out in order to ensure error-free use.
n
Updating the software
n
License file needed
Open a technical support case via MSupport.
Tell us the serial numbers of the CARDIOHELP device and the new HMI PCB.
n
Carrying out the inspection (⇨ "Inspection", page 33).
1
Open the device (⇨ "Opening the Device", page 108).
2
Remove the battery housing (⇨ "Removing Battery Housing",
page 116).
3
Remove the backlight inverter (⇨ "Replacing Backlight Inverter", page 118).
4
Open the 2 locks
screwdriver.
CAUTION!
Do not kink, bend or load the flat cable.
5
Remove the flat cable
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
[1]
of the white flat cable with a thin slotted
[2]
from HMI PCB.
HMI PCB
Battery housing
Flat cable HMI
Reconnected flat cable HMI
