GNSS Compass Reference Manual • Getting Started with GNSS Compass

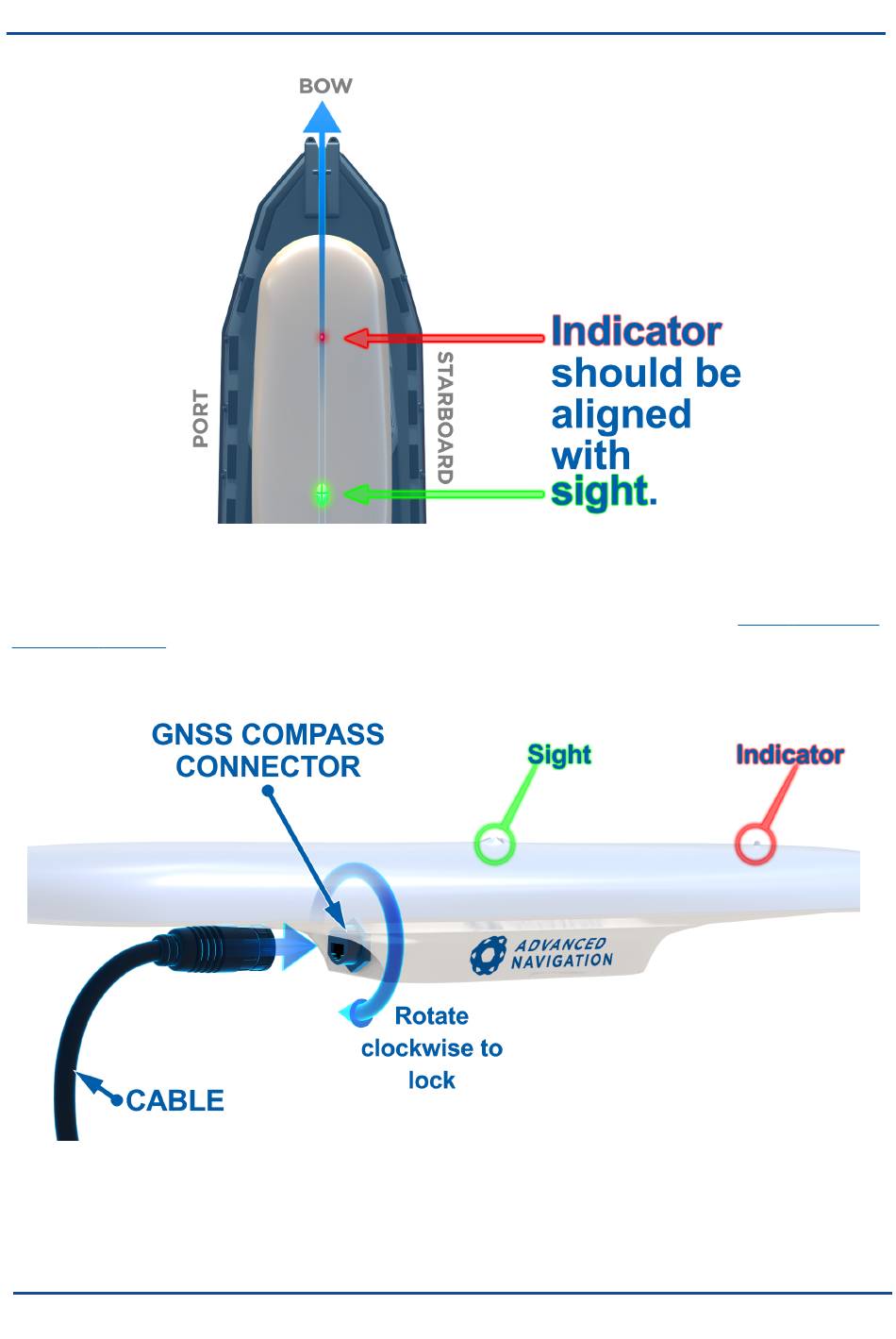

Figure 3: GNSS Compass alignment
3. Plug the cable into the GNSS Compass and rotate the nut clockwise to lock it in place. See
connector locking
Figure 4: GNSS Compass connector locking
v2.0
Page 5
GNSS Compass
04 Nov 2021
