GNSS Compass Reference Manual • Installing GNSS Compass

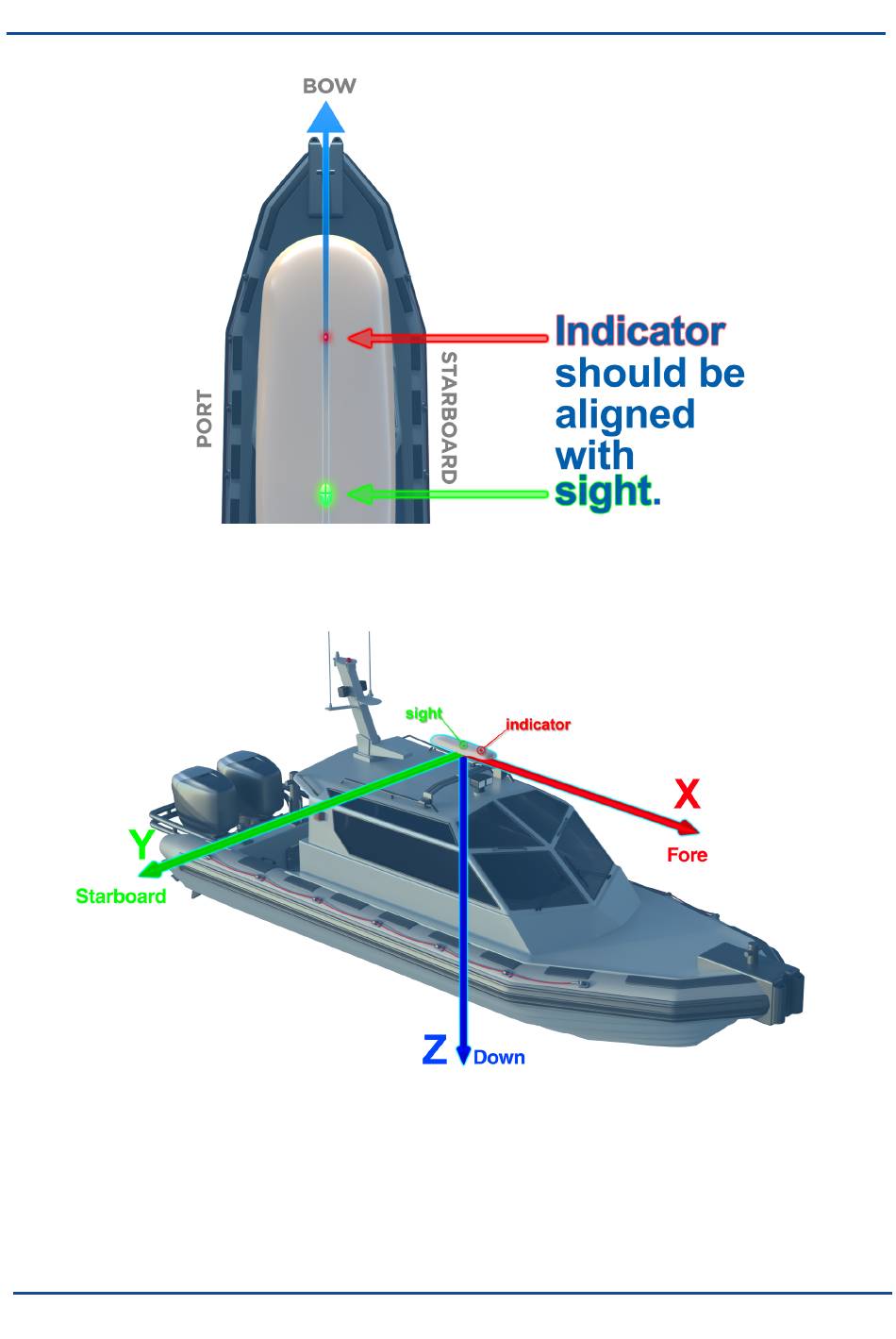

Figure 12: GNSS Compass alignment
Install the unit such that the X+ axis points forward towards the front of the vehicle and the Z+ axis points
straight down towards the ground as shown below.
Figure 13: Alignment on a boat
v2.0
Page 26
04 Nov 2021
