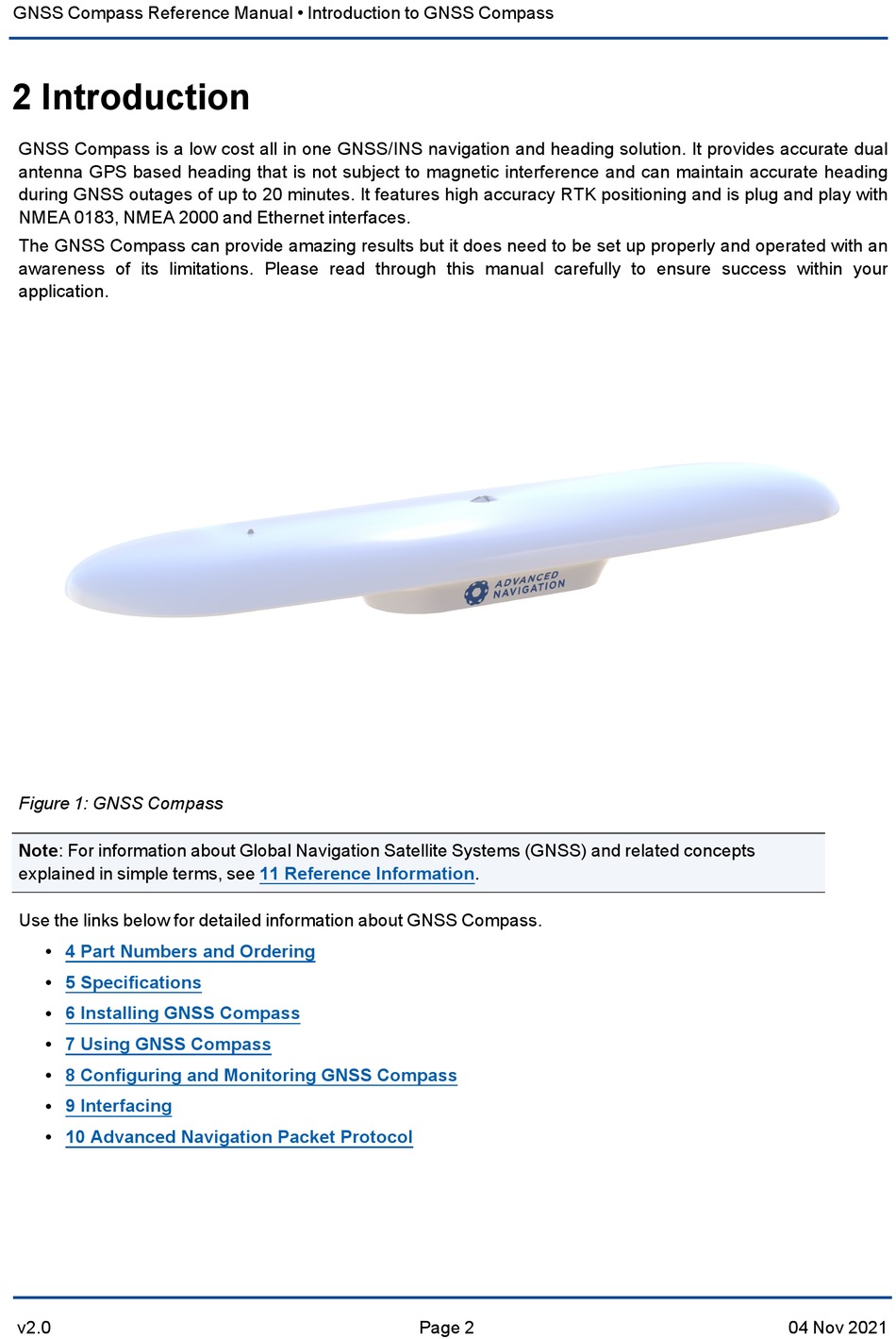

2 Introduction

GNSS Compass is a low cost all in one GNSS/INS navigation and heading solution. It provides accurate dual
antenna GPS based heading that is not subject to magnetic interference and can maintain accurate heading
during GNSS outages of up to 20 minutes. It features high accuracy RTK positioning and is plug and play with
NMEA 0183, NMEA 2000 and Ethernet interfaces.
The GNSS Compass can provide amazing results but it does need to be set up properly and operated with an
awareness of its limitations. Please read through this manual carefully to ensure success within your
application.
Figure 1: GNSS Compass
Note: For information about Global Navigation Satellite Systems (GNSS) and related concepts
explained in simple terms, see
Use the links below for detailed information about GNSS Compass.
4 Part Numbers and Ordering
l
5 Specifications
l
6 Installing GNSS Compass
l
7 Using GNSS Compass
l
8 Configuring and Monitoring GNSS Compass
l
9 Interfacing
l
10 Advanced Navigation Packet Protocol
l
v2.0
11 Reference Information.
