Mount the unit at least 10 cm away (and preferably as far as possible) from sources of dynamic magnetic
l
interference such as high current wiring or large motors for best performance.

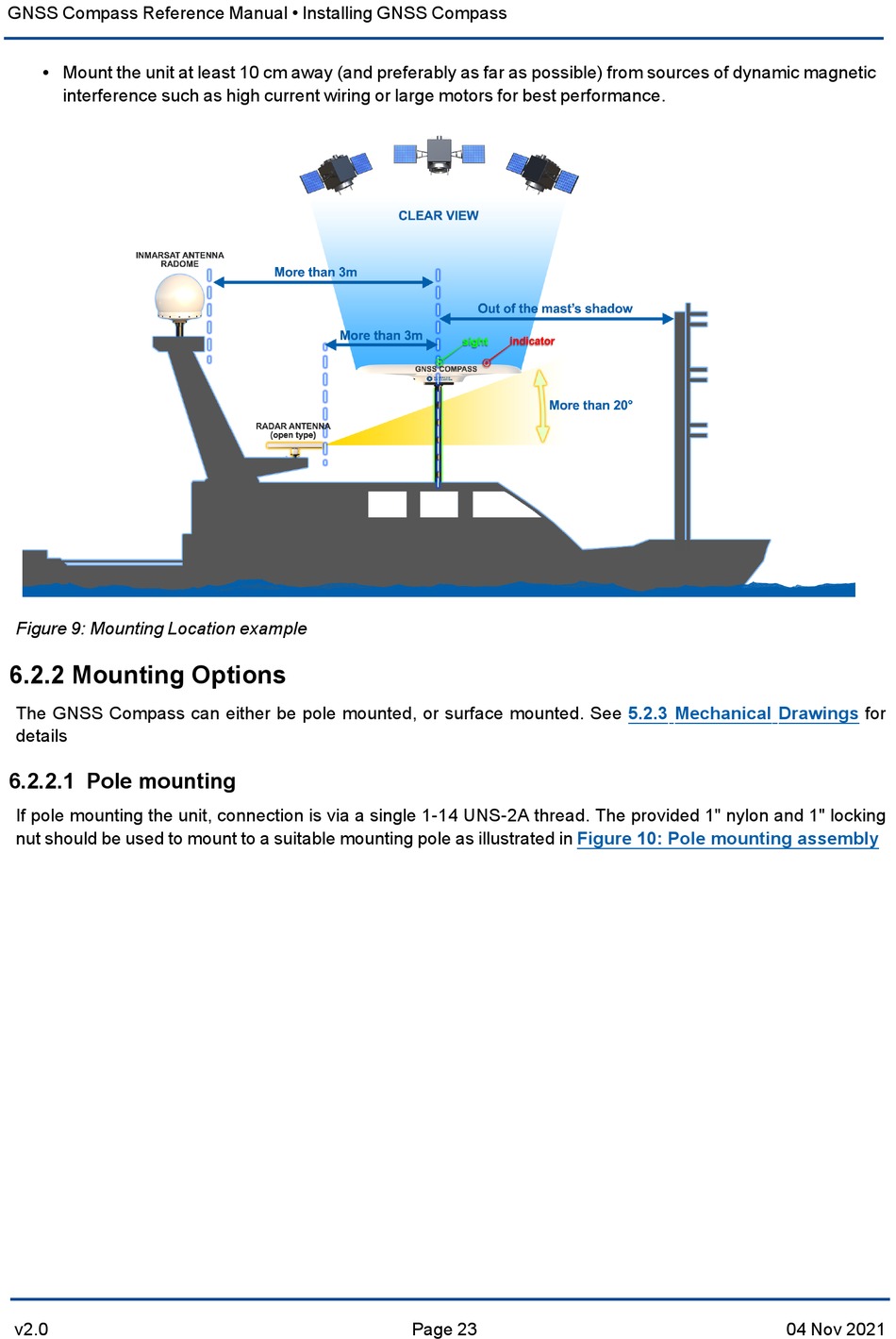

Figure 9: Mounting Location example
6.2.2 Mounting Options
The GNSS Compass can either be pole mounted, or surface mounted. See
details
6.2.2.1 Pole mounting
If pole mounting the unit, connection is via a single 1-14 UNS-2A thread. The provided 1" nylon and 1" locking
nut should be used to mount to a suitable mounting pole as illustrated in
v2.0
Figure 10: Pole mounting assembly
