GNSS Compass Reference Manual • Configuring and Monitoring GNSS Compass

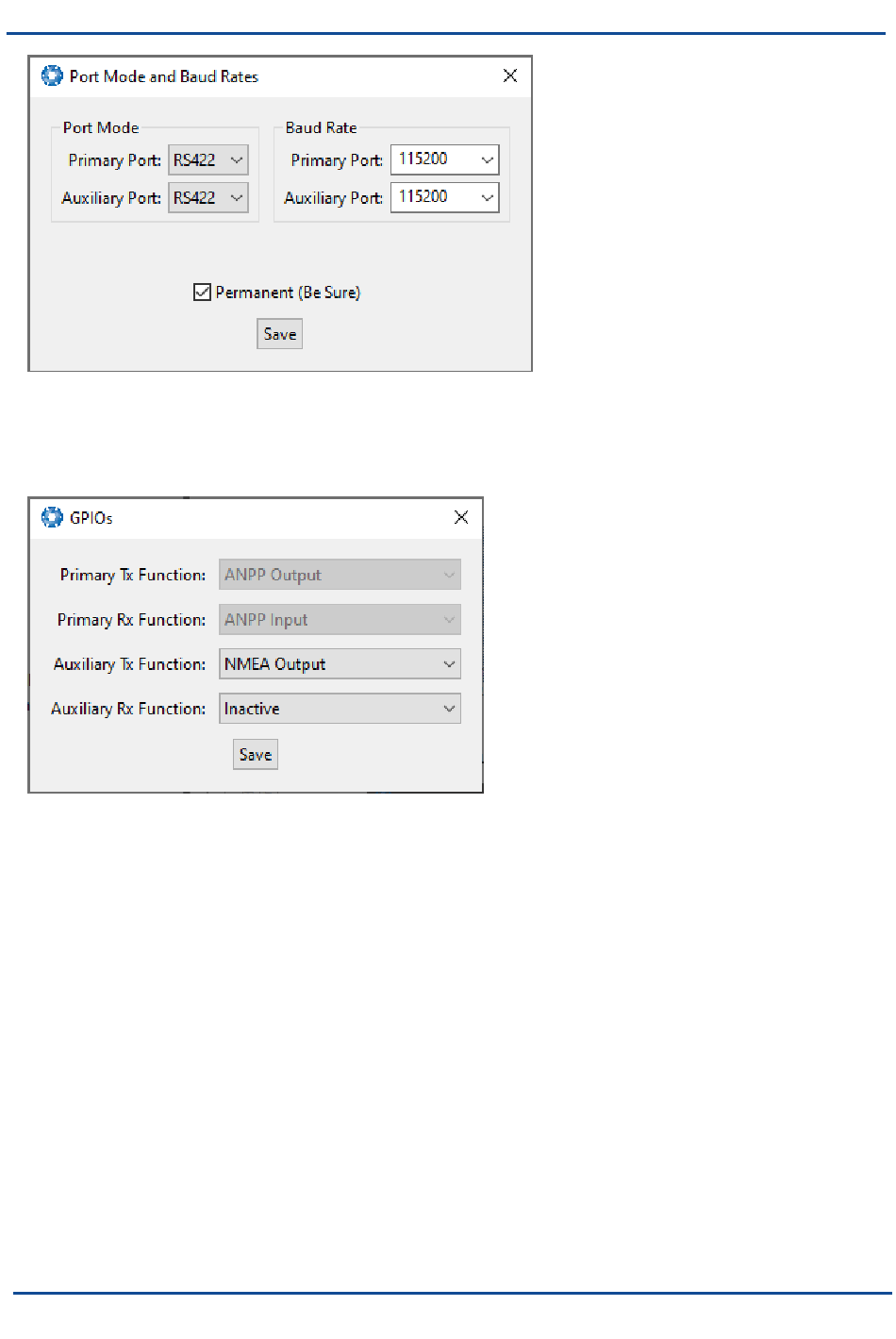

Figure 44: GNSS Compass Manager Baud Rates Dialogue
8.2.7.4 GPIO
This allows the user to set the functionality of the auxiliary ports.
Figure 45: GNSS Compass Manager GPIO configuration Dialogue
8.2.7.5 GPIO Output
The GPIO output configuration dialogue allows the user to configure the output rates for the Auxiliary
RS232/RS422 data functions NMEA, TSS and PASHR.
v2.0
Page 60
04 Nov 2021
