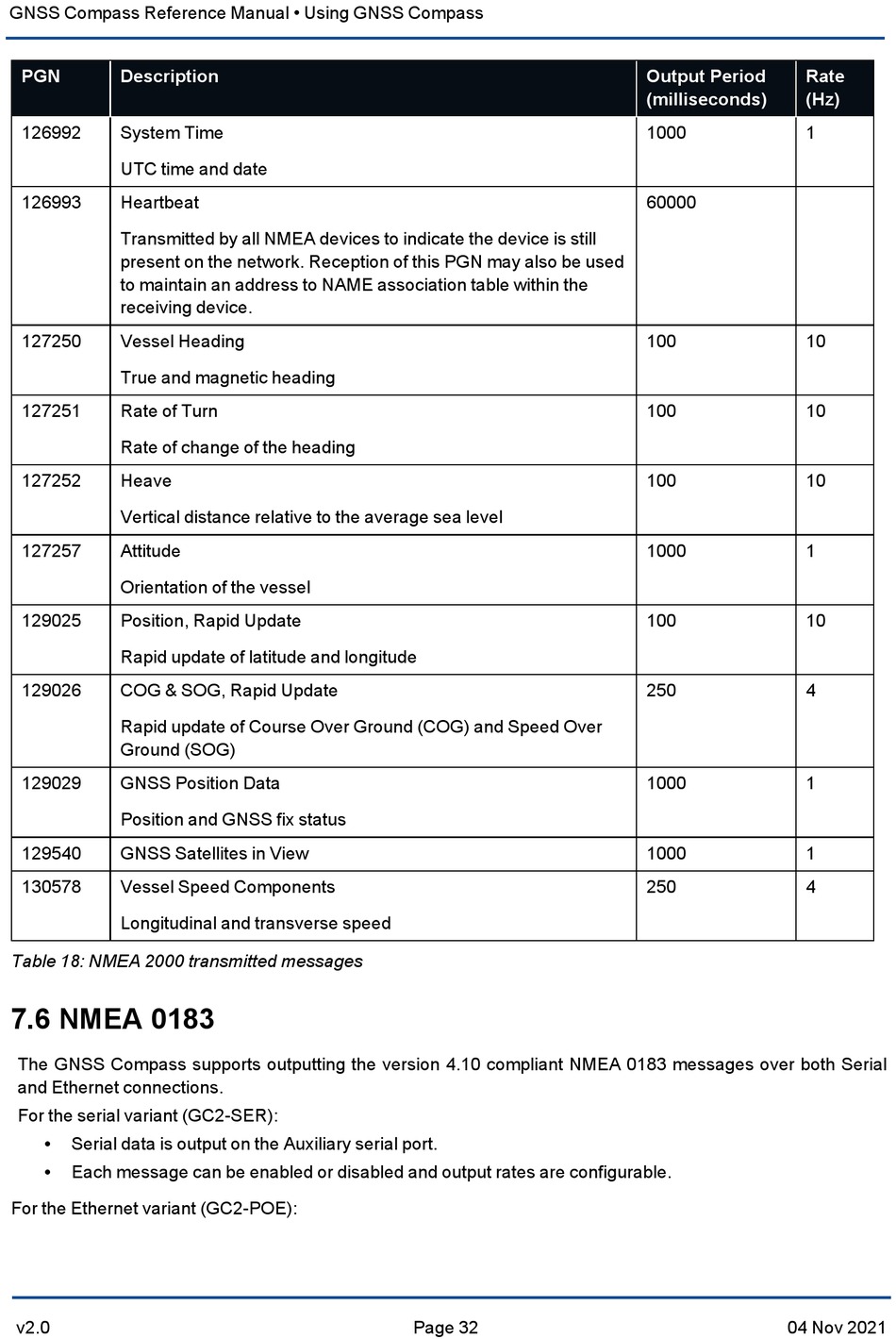

GNSS Compass Reference Manual • Using GNSS Compass
PGN
Description
126992
System Time
UTC time and date
126993
Heartbeat
Transmitted by all NMEA devices to indicate the device is still
present on the network. Reception of this PGN may also be used
to maintain an address to NAME association table within the
receiving device.
127250
Vessel Heading
True and magnetic heading
127251
Rate of Turn
Rate of change of the heading
127252
Heave
Vertical distance relative to the average sea level
127257
Attitude
Orientation of the vessel
129025
Position, Rapid Update
Rapid update of latitude and longitude
129026
COG & SOG, Rapid Update
Rapid update of Course Over Ground (COG) and Speed Over
Ground (SOG)
129029
GNSS Position Data
Position and GNSS fix status
129540
GNSS Satellites in View
130578
Vessel Speed Components
Longitudinal and transverse speed
Table 18: NMEA 2000 transmitted messages
7.6 NMEA 0183
The GNSS Compass supports outputting the version 4.10 compliant NMEA 0183 messages over both Serial
and Ethernet connections.
For the serial variant (GC2-SER):
Serial data is output on the Auxiliary serial port.
l
Each message can be enabled or disabled and output rates are configurable.
l
For the Ethernet variant (GC2-POE):
v2.0
Page 32
Output Period
Rate
(milliseconds)
(Hz)
1000
1
60000
100
10
100
10
100
10
1000
1
100
10
250
4
1000
1
1000
1
250
4
04 Nov 2021
