8.1.1 Main View
The Home Page is accessible from other pages via the Map menu item under the View menu.

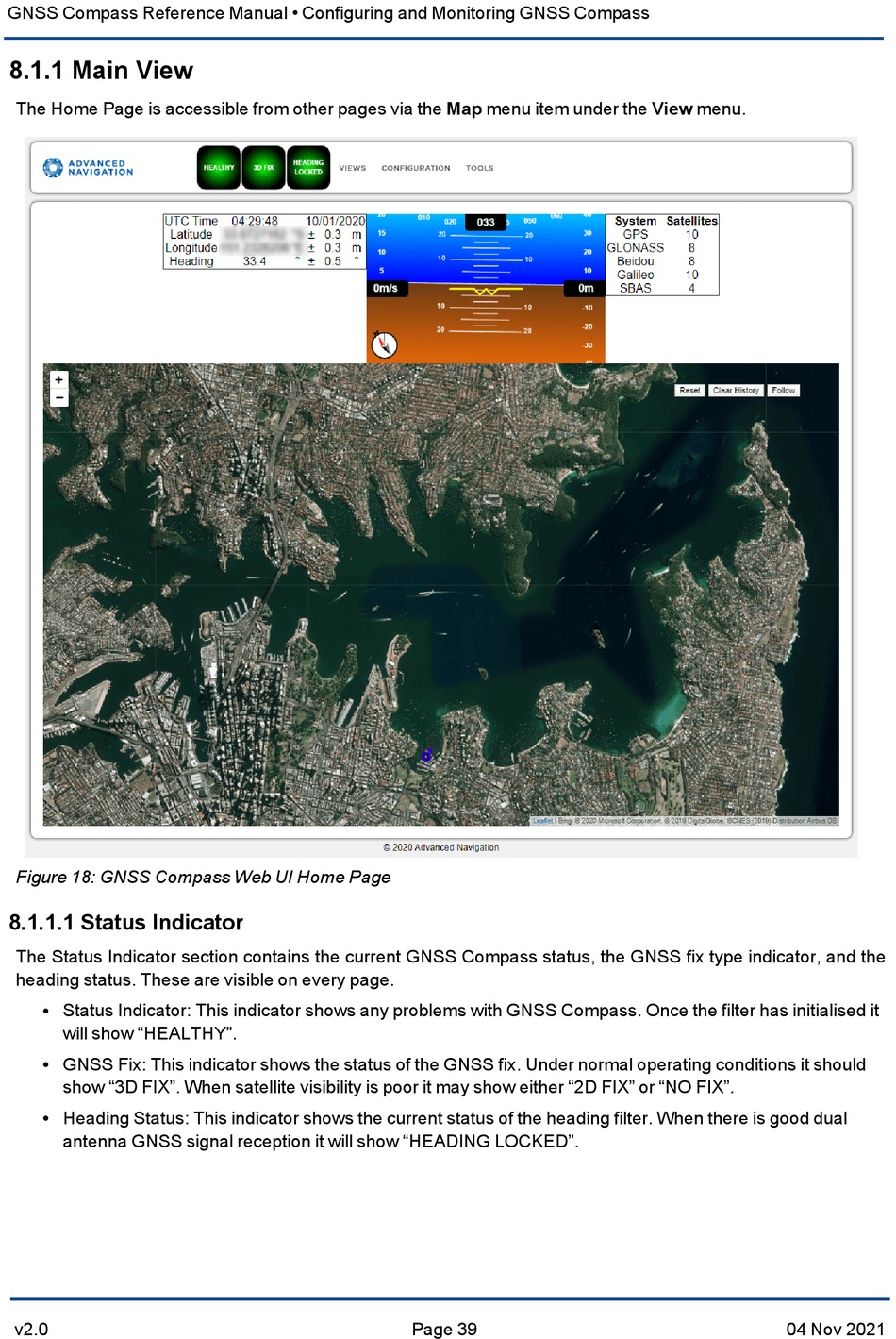

Figure 18: GNSS Compass Web UI Home Page
8.1.1.1 Status Indicator
The Status Indicator section contains the current GNSS Compass status, the GNSS fix type indicator, and the
heading status. These are visible on every page.
Status Indicator: This indicator shows any problems with GNSS Compass. Once the filter has initialised it
l
will show "HEALTHY".
GNSS Fix: This indicator shows the status of the GNSS fix. Under normal operating conditions it should
l
show "3D FIX". When satellite visibility is poor it may show either "2D FIX" or "NO FIX".
Heading Status: This indicator shows the current status of the heading filter. When there is good dual
l
antenna GNSS signal reception it will show "HEADING LOCKED".
