GNSS Compass Reference Manual • Specifications

5.2.4 Axes

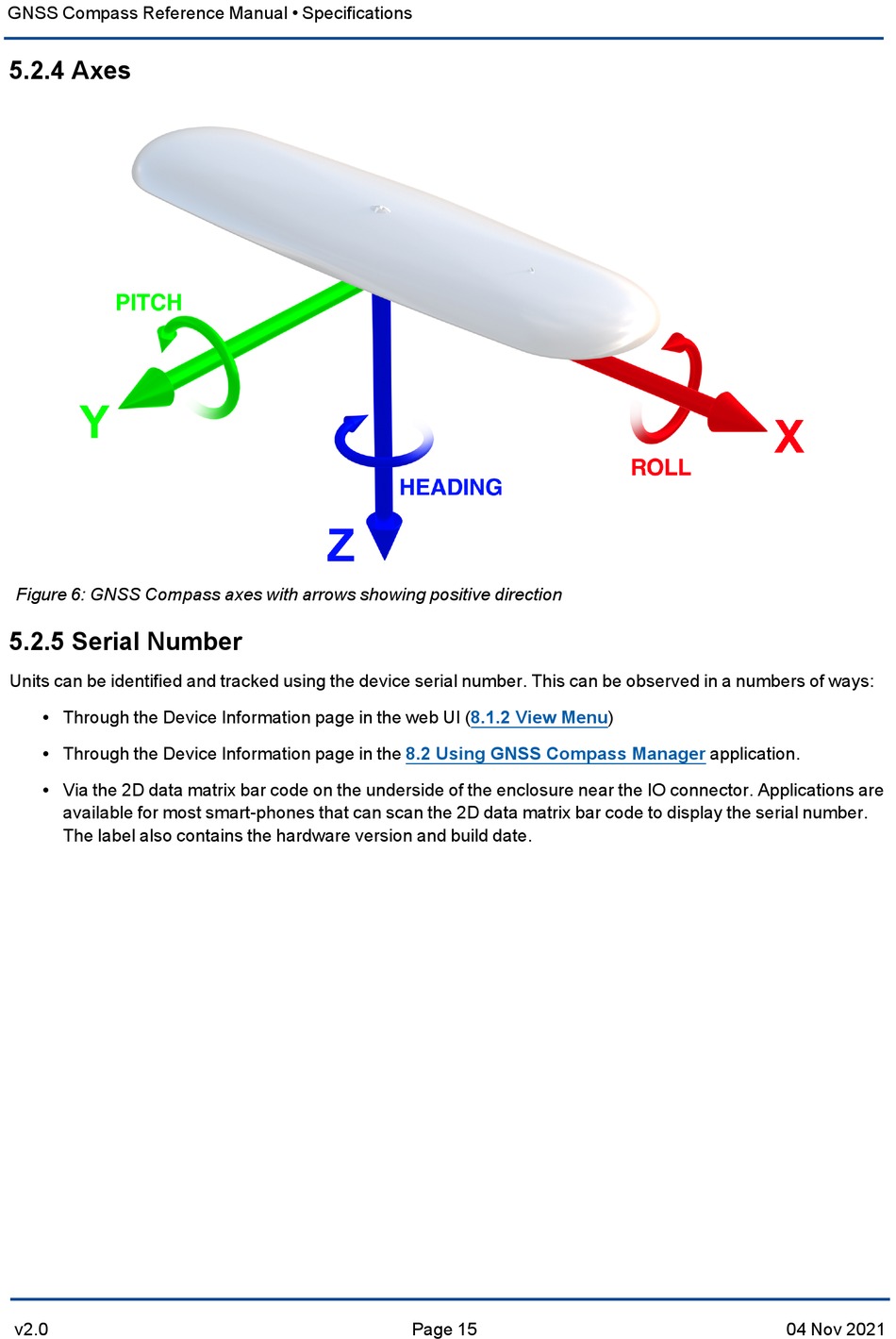

Figure 6: GNSS Compass axes with arrows showing positive direction

5.2.5 Serial Number

Units can be identified and tracked using the device serial number. This can be observed in a numbers of ways:
Through the Device Information page in the web UI
l
Through the Device Information page in the
l
Via the 2D data matrix bar code on the underside of the enclosure near the IO connector. Applications are
l
available for most smart-phones that can scan the 2D data matrix bar code to display the serial number.
The label also contains the hardware version and build date.
v2.0
(8.1.2 View Menu)
8.2 Using GNSS Compass Manager
Page 15
application.
04 Nov 2021
