maximum of 28 satellites will be displayed, even if more are accessible. This plot shows the SNR of each
satellite at the primary and secondary antenna. As a guideline, these should be within 5-10 dB of each other in
the absence of cable or antenna faults

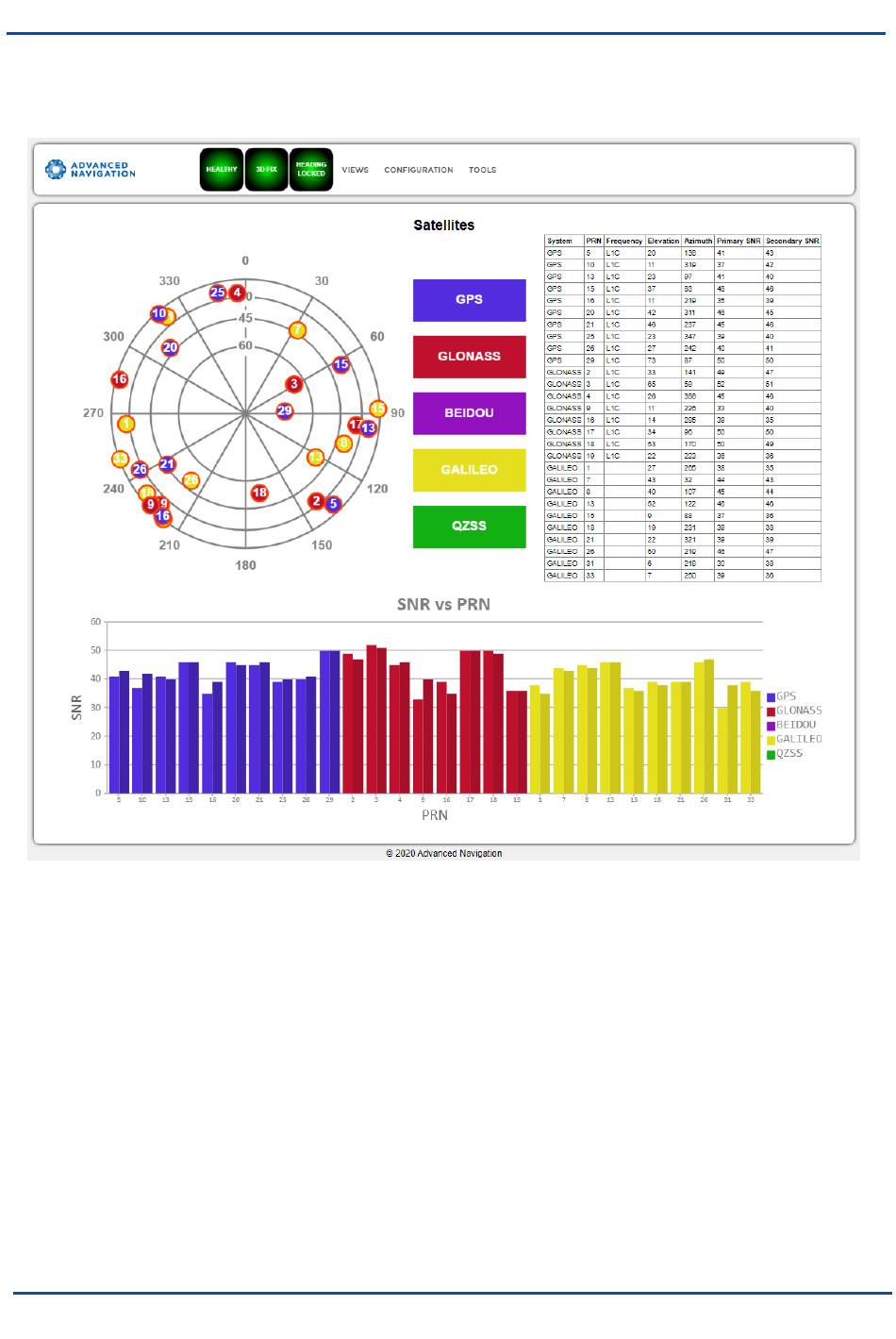

Figure 21: GNSS Compass Web UI Satellites Page
8.1.2.5 Raw Sensors
The Raw Sensors page shows the raw IMU sensor values.
In the lower plot only the air pressure is plotted. The current value from the internal temperature sensors are
given on the right. These do not provide general environmental temperature.
