GNSS Compass Reference Manual • Installing GNSS Compass

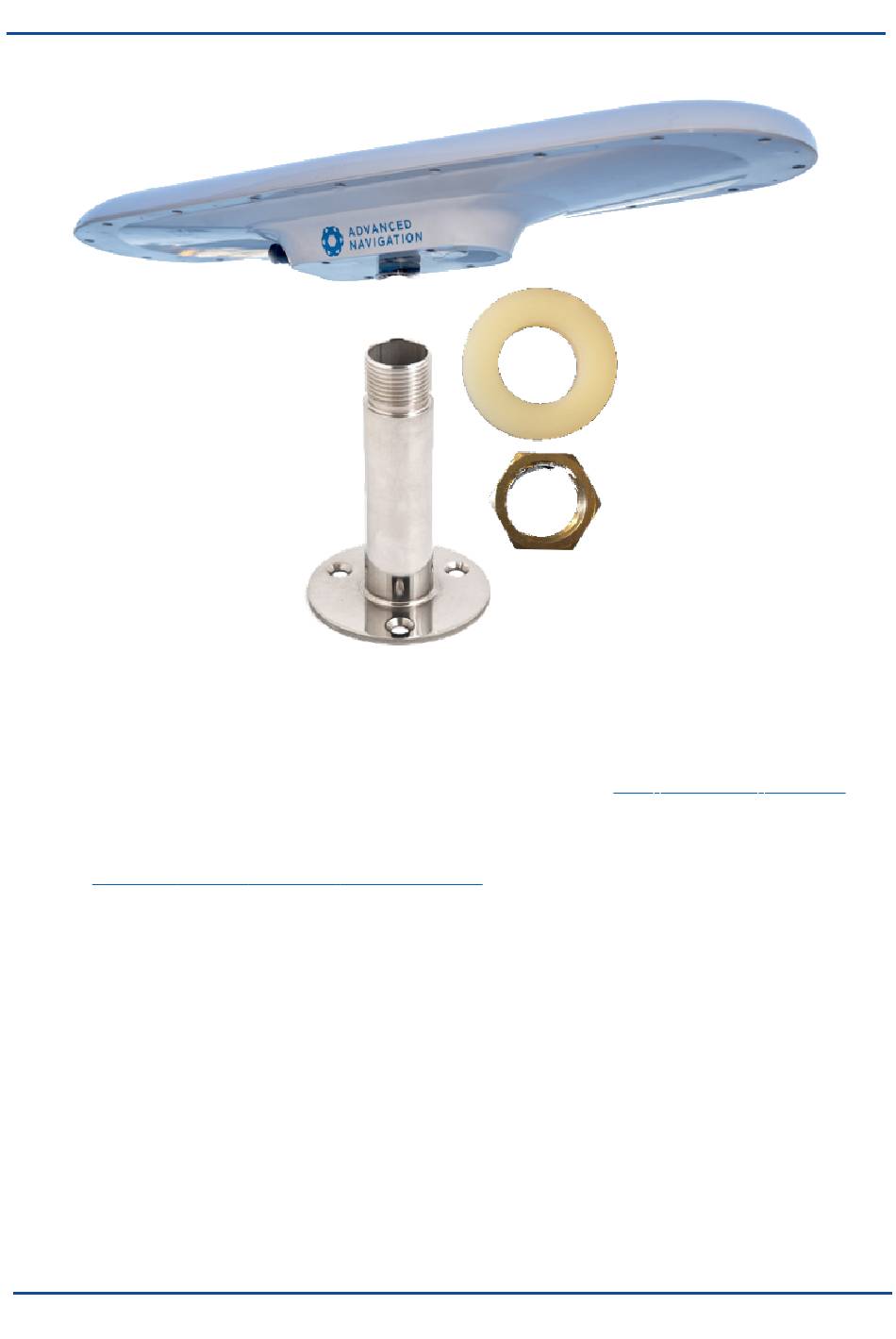

Figure 10: Pole mounting assembly
6.2.2.2 Surface mounting
If mounting on a surface, use the 4 x M8 fixing holes as indicated in the
5.2.3 Mechanical
Drawings. It is
strongly recommended to use the included shoulder washers to provide a small gap between the GNSS
Compass and the mounting surface. This will help protect against warping or cracking of the unit on slightly
uneven surfaces. Note the shoulder washers will require a nominal 10mm hole in the mounting surface as
shown in
Figure 11: Surface mounting shoulder
washer.
v2.0
Page 24
04 Nov 2021
