7. DISASSEMBLY AND ADJUSTMENT

7.3.2 Registration Mark Sensor

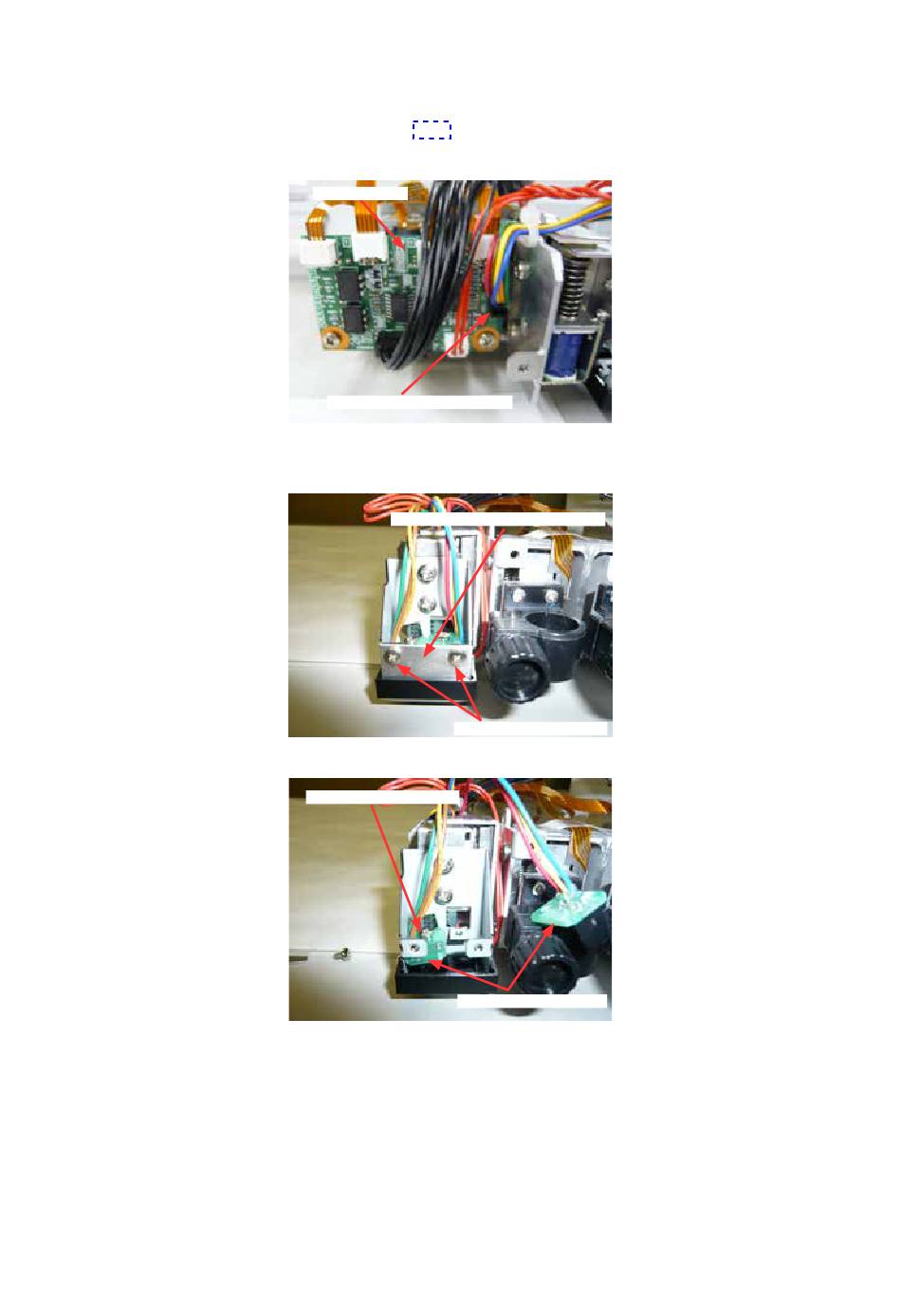

How to detach the registration mark sensor
(1) Detach the pen block cover (See the section 7.1.5).
(2) Disconnect the registration mark sensor cable from the pen relay board.
Pen relay board
Registration mark sensor cable
(3) Remove the two M2L4 binding head screws holding the registration mark sensor blind plate, and then
detach it.
Registration mark sensor blind plate
M2L4 binding head screw
(4) Remove the two M2L4 binding head screws holding the registration mark sensor, and then detach it.
M2L4 binding head screw
Registration mark sensor
FC2250-UM-251-9370 7-29
