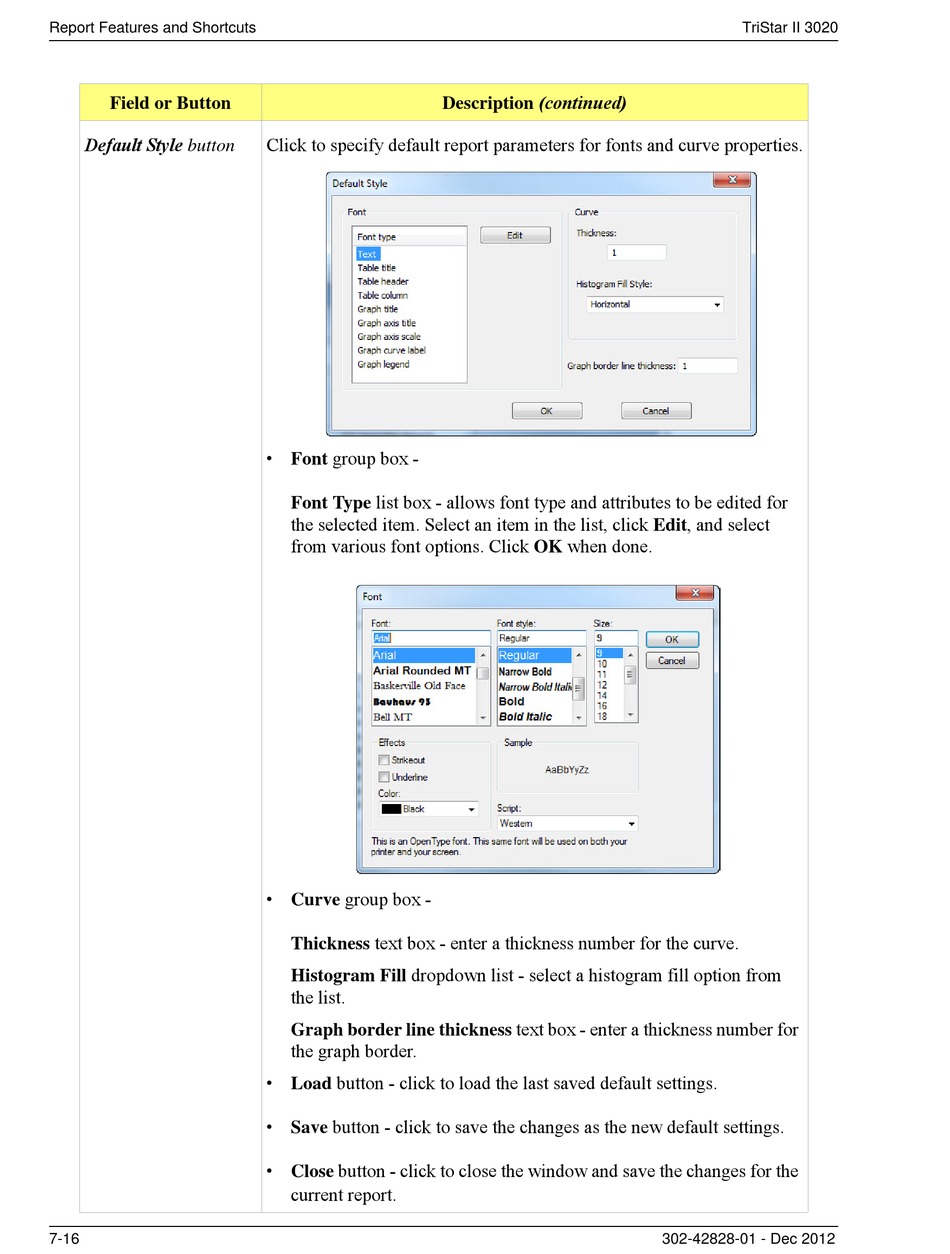

Micromeritics TriStar II 3020 Operator's Manual page 214

Report Features and Shortcuts
Field or Button
Default Style button
7-16
Description (continued)
Click to specify default report parameters for fonts and curve properties.
• Font group box -
Font Type list box - allows font type and attributes to be edited for
the selected item. Select an item in the list, click Edit, and select
from various font options. Click OK when done.
• Curve group box -
Thickness text box - enter a thickness number for the curve.
Histogram Fill dropdown list - select a histogram fill option from
the list.
Graph border line thickness text box - enter a thickness number for
the graph border.
• Load button - click to load the last saved default settings.
• Save button - click to save the changes as the new default settings.
• Close button - click to close the window and save the changes for the
current report.
TriStar II 3020
302-42828-01 - Dec 2012
