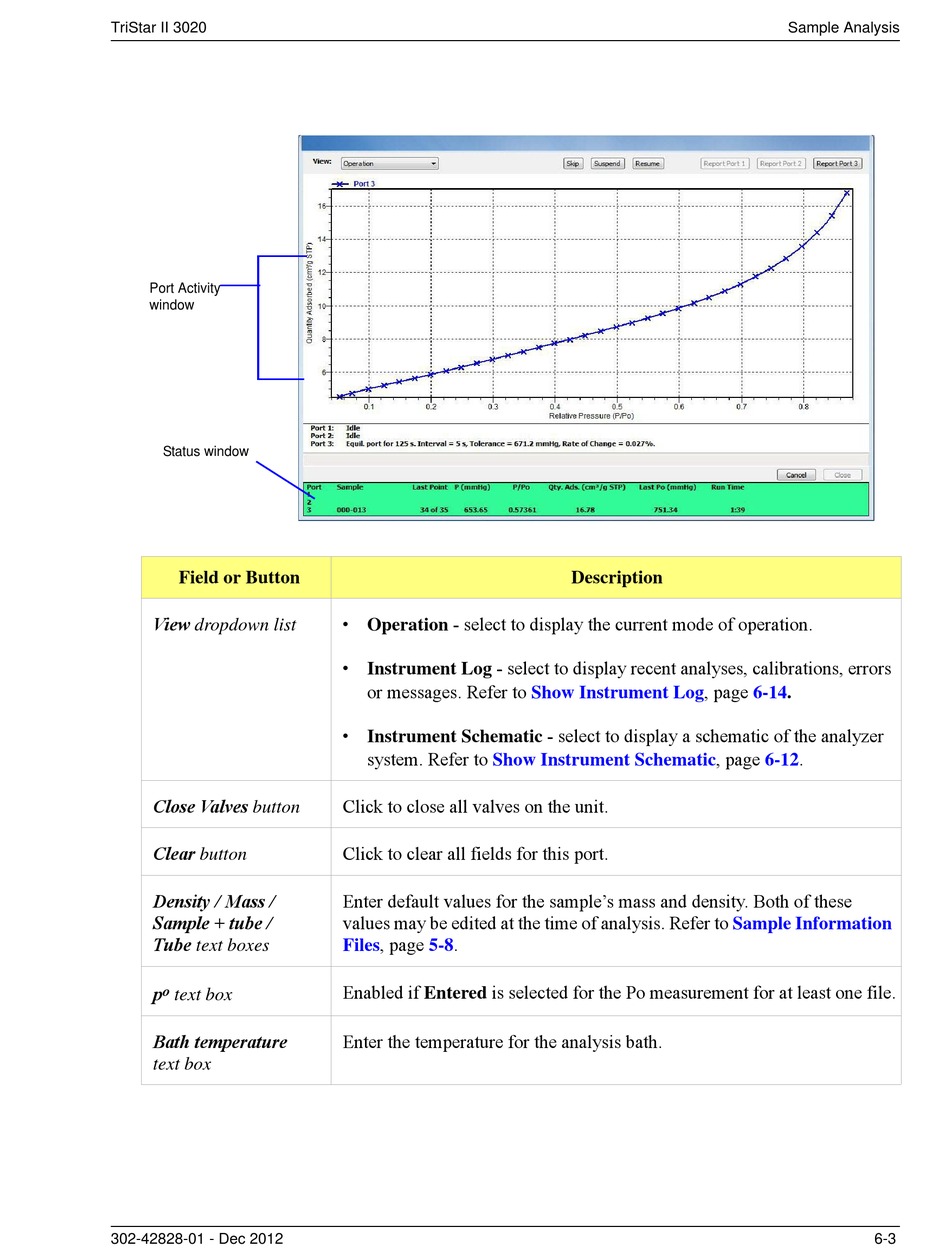

TriStar II 3020
Port Activity
window
Status window
Field or Button
View dropdown list
Close Valves button
Clear button

Density / Mass /

Sample + tube /
Tube text boxes
o
p
text box

Bath temperature
text box
302-42828-01 - Dec 2012
• Operation - select to display the current mode of operation.
• Instrument Log - select to display recent analyses, calibrations, errors
or messages. Refer to
• Instrument Schematic - select to display a schematic of the analyzer
system. Refer to
Show Instrument
Click to close all valves on the unit.
Click to clear all fields for this port.
Enter default values for the sample's mass and density. Both of these
values may be edited at the time of analysis. Refer to
Files, page 5-8.
Enabled if Entered is selected for the Po measurement for at least one file.
Enter the temperature for the analysis bath.
Description
Log, page 6-14.
Show Instrument
Schematic, page 6-12.
Sample Analysis
Sample Information
6-3
