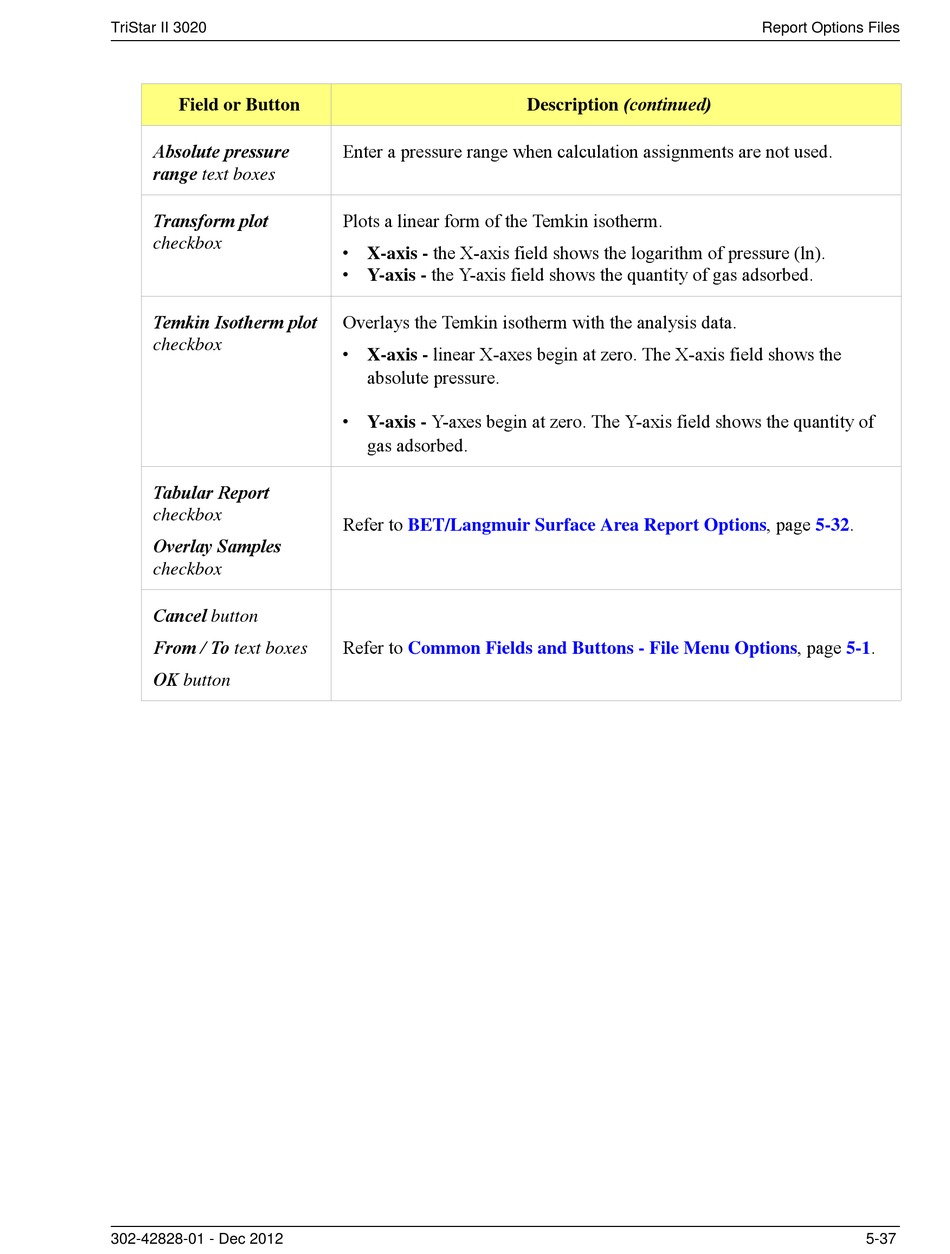

Micromeritics TriStar II 3020 Operator's Manual page 147

TriStar II 3020
Field or Button
Absolute pressure
range text boxes
Transform plot
checkbox
Temkin Isotherm plot
checkbox
Tabular Report
checkbox
Overlay Samples
checkbox
Cancel button
From / To text boxes
OK button
302-42828-01 - Dec 2012

Enter a pressure range when calculation assignments are not used.
Plots a linear form of the Temkin isotherm.
• X-axis - the X-axis field shows the logarithm of pressure (ln).
• Y-axis - the Y-axis field shows the quantity of gas adsorbed.
Overlays the Temkin isotherm with the analysis data.
• X-axis - linear X-axes begin at zero. The X-axis field shows the
absolute pressure.
• Y-axis - Y-axes begin at zero. The Y-axis field shows the quantity of
gas adsorbed.
Refer to
BET/Langmuir Surface Area Report
Refer to
Common Fields and Buttons - File Menu
Description (continued)
Options, page 5-32.
Report Options Files
Options, page 5-1.
5-37
