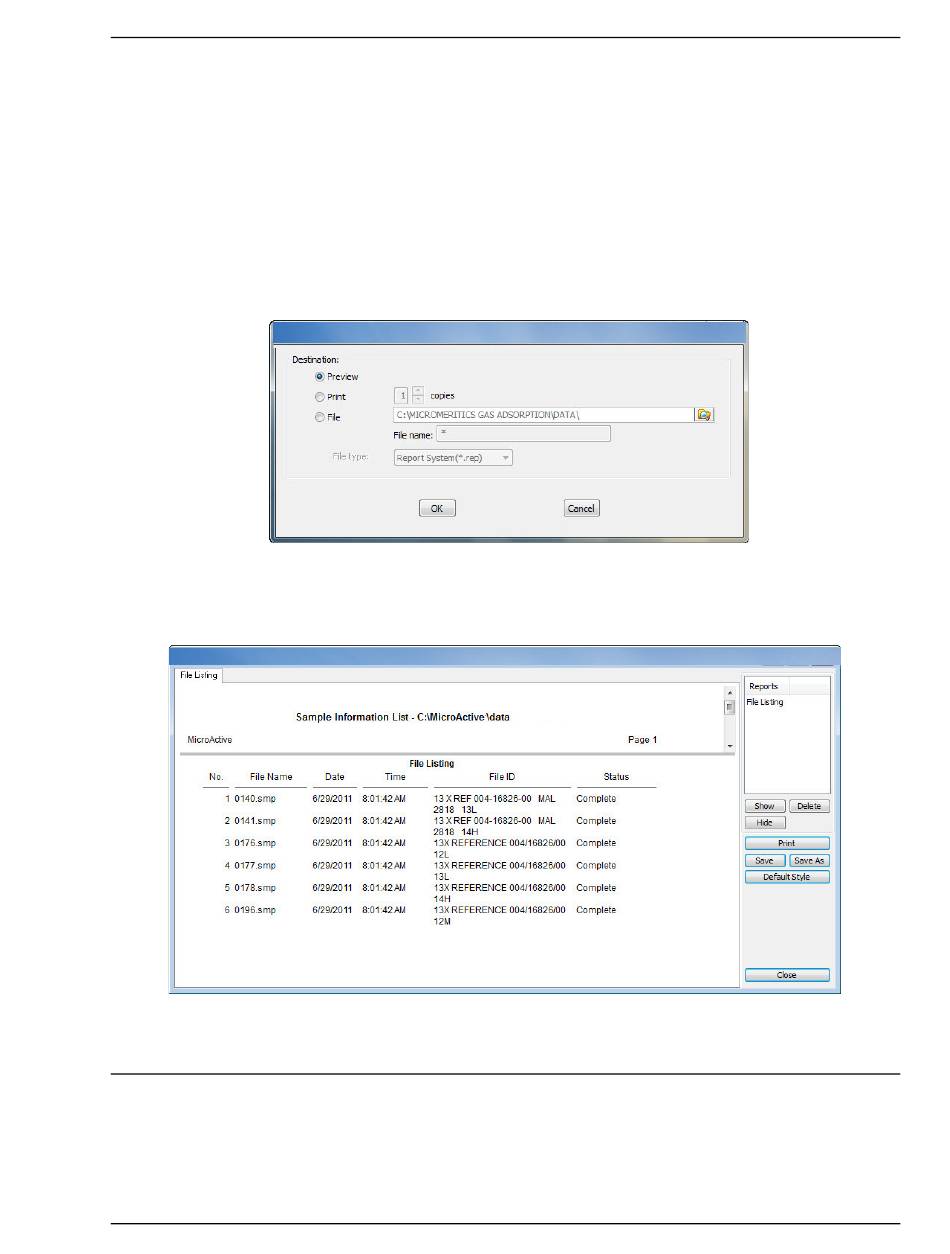

4. In the Report Settings window, select one of the following:
• Preview - to send the file to the screen.
• Print - to send the file to the default printer.
• Copies - select the number of copies to print. This field is only enabled when Print is selected.
• File - select the destination directory and enter a file name in the File name text box. Select to
save the file as a .REP, .XLS, or .TXT file format.
5. Click OK. The following example shows a sample information file printed to the screen.

Exporting Isotherm Data

Provides the option to export isotherm data in a.TXT or .XLS file format. When saved to a file, the
data can be imported into other applications that read .TXT or .XLS file formats. The output file con-
tains elapsed time, absolute pressure, relative pressure and specific quantity adsorbed.
