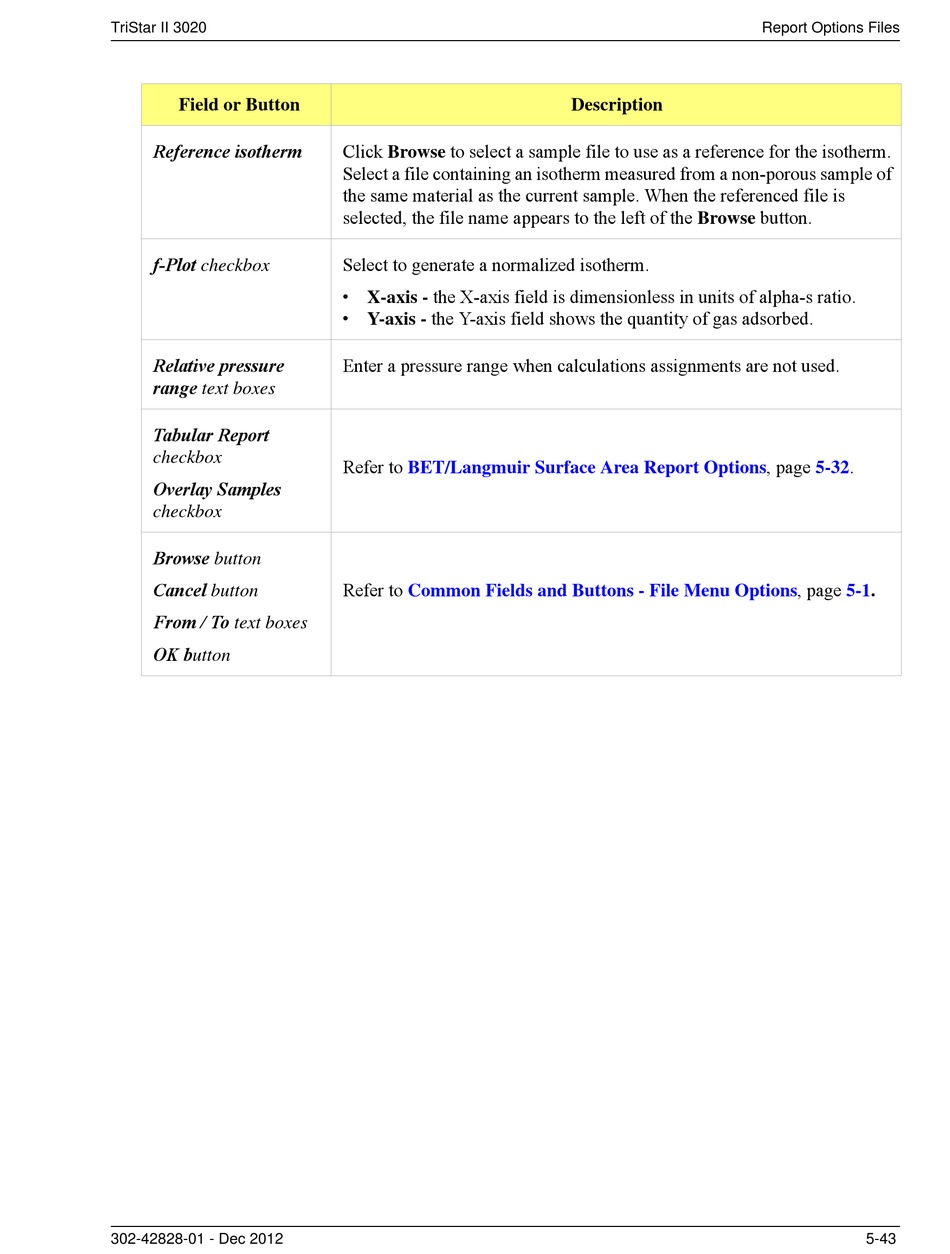

TriStar II 3020
Field or Button
Reference isotherm
f-Plot checkbox

Relative pressure
range text boxes
Tabular Report
checkbox
Overlay Samples
checkbox
Browse button
Cancel button
From / To text boxes
OK button
302-42828-01 - Dec 2012
Click Browse to select a sample file to use as a reference for the isotherm.
Select a file containing an isotherm measured from a non-porous sample of
the same material as the current sample. When the referenced file is
selected, the file name appears to the left of the Browse button.
Select to generate a normalized isotherm.
• X-axis - the X-axis field is dimensionless in units of alpha-s ratio.
• Y-axis - the Y-axis field shows the quantity of gas adsorbed.
Enter a pressure range when calculations assignments are not used.
Refer to
BET/Langmuir Surface Area Report
Refer to
Common Fields and Buttons - File Menu
Description
Options, page 5-32.
Options, page 5-1.
Report Options Files
5-43
