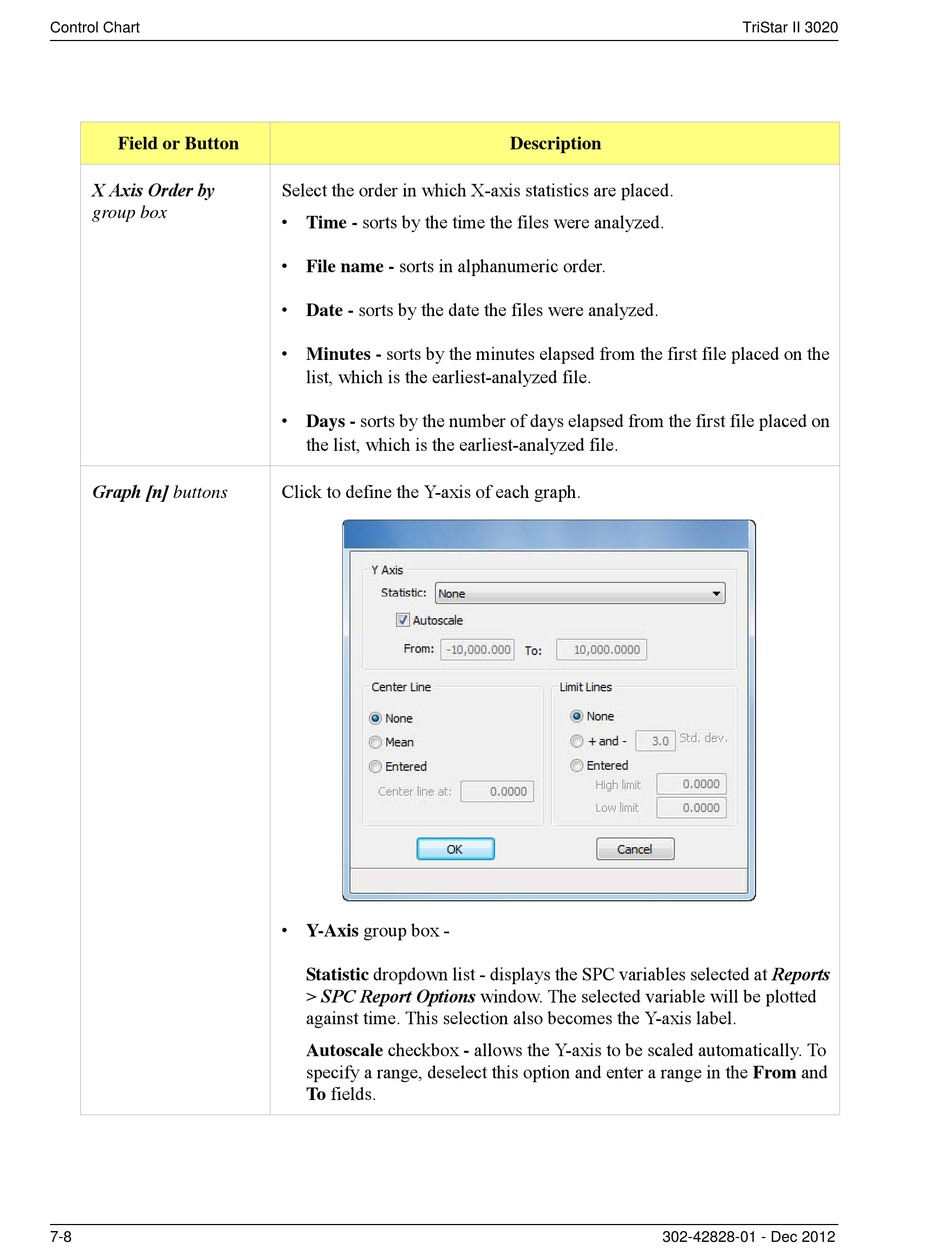

Micromeritics TriStar II 3020 Operator's Manual page 206

Control Chart
Field or Button

X Axis Order by
group box
Graph [n] buttons
7-8
Select the order in which X-axis statistics are placed.
• Time - sorts by the time the files were analyzed.
• File name - sorts in alphanumeric order.
• Date - sorts by the date the files were analyzed.
• Minutes - sorts by the minutes elapsed from the first file placed on the
list, which is the earliest-analyzed file.
• Days - sorts by the number of days elapsed from the first file placed on
the list, which is the earliest-analyzed file.
Click to define the Y-axis of each graph.
• Y-Axis group box -
Statistic dropdown list - displays the SPC variables selected at Reports
> SPC Report Options window. The selected variable will be plotted
against time. This selection also becomes the Y-axis label.
Autoscale checkbox - allows the Y-axis to be scaled automatically. To
specify a range, deselect this option and enter a range in the From and
To fields.
Description
302-42828-01 - Dec 2012
TriStar II 3020
