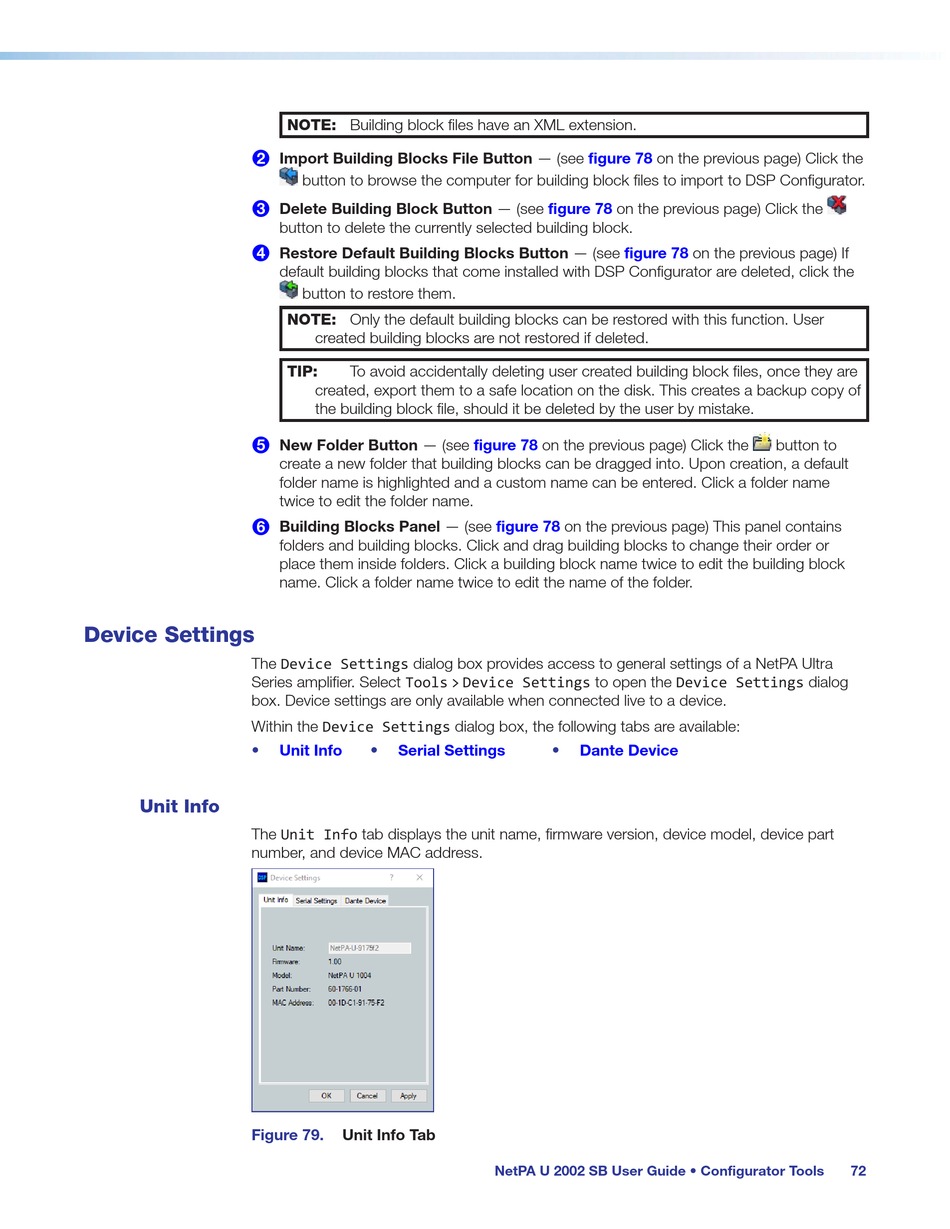

Device Settings

The Device Settings dialog box provides access to general settings of a NetPA Ultra
Series amplifier. Select Tools > Device Settings to open the Device Settings dialog
box. Device settings are only available when connected live to a device.
Within the Device Settings dialog box, the following tabs are available:
•

Unit Info

The Unit Info tab displays the unit name, firmware version, device model, device part
number, and device MAC address.
Figure 79.
NOTE: Building block files have an XML extension.
Import Building Blocks File Button — (see
button to browse the computer for building block files to import to DSP Configurator.
Delete Building Block Button — (see
button to delete the currently selected building block.
Restore Default Building Blocks Button — (see
default building blocks that come installed with DSP Configurator are deleted, click the
button to restore them.
NOTE: Only the default building blocks can be restored with this function. User
created building blocks are not restored if deleted.
TIP: To avoid accidentally deleting user created building block files, once they are
created, export them to a safe location on the disk. This creates a backup copy of
the building block file, should it be deleted by the user by mistake.
New Folder Button — (see
create a new folder that building blocks can be dragged into. Upon creation, a default
folder name is highlighted and a custom name can be entered. Click a folder name
twice to edit the folder name.
Building Blocks Panel — (see
folders and building blocks. Click and drag building blocks to change their order or
place them inside folders. Click a building block name twice to edit the building block
name. Click a folder name twice to edit the name of the folder.
Unit Info • Serial Settings
Unit Info Tab
figure 78
figure 78 on the previous page) Click the
figure 78
figure 78 on the previous page) Click the
figure 78 on the previous page) This panel contains
• Dante Device
NetPA U 2002 SB User Guide • Configurator Tools
on the previous page) Click the
on the previous page) If
button to
