To connect via RS-232:
•
Click the RS-232 tab in the dialog box. Select the unit connected via RS-232 from
the Com Port drop-down list, and then select the correct Baud Rate, Parity
Bit, Data Bit, and Stop Bit.

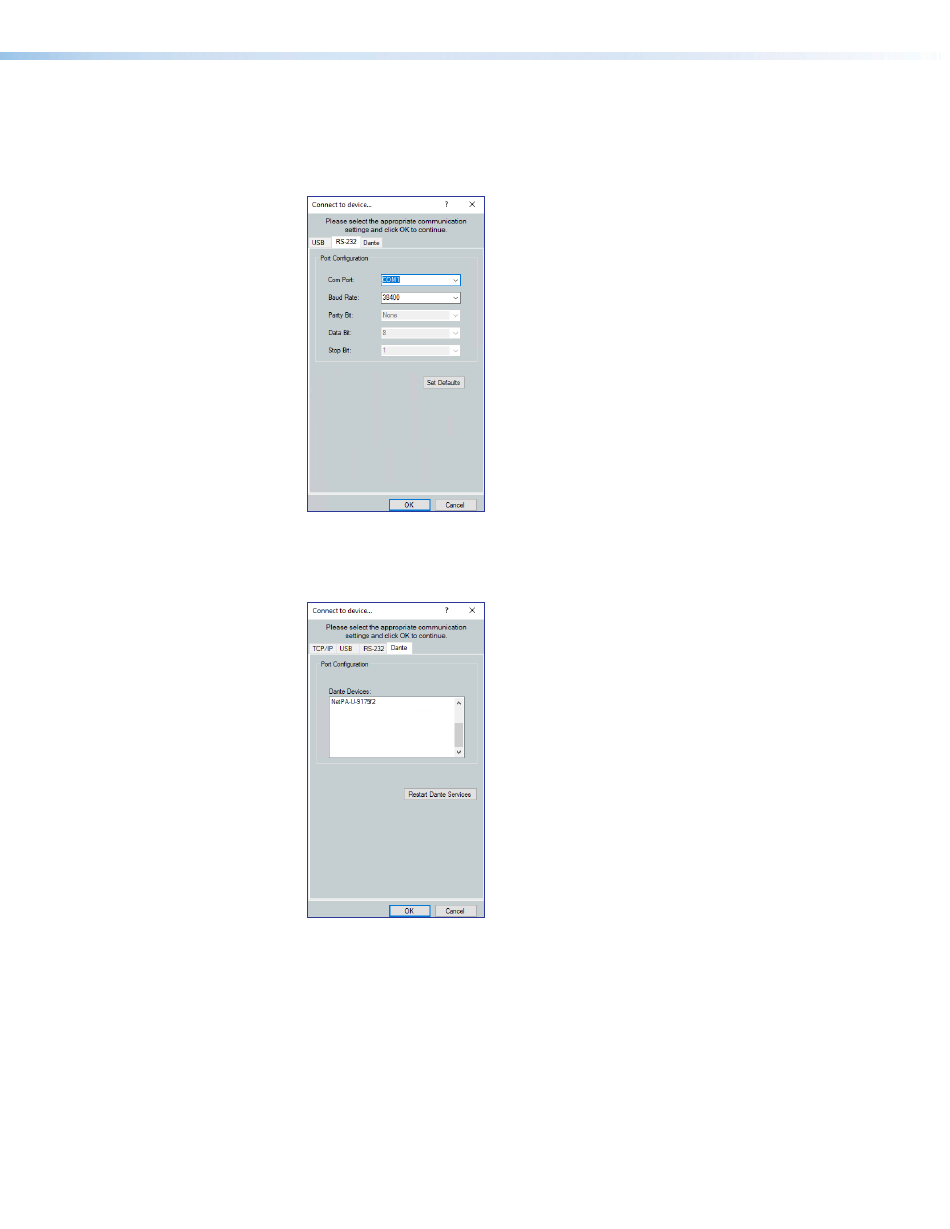

Figure 27. Connect to device... RS-232 Dialog Box
• To connect via Dante:
Click the Dante tab in the dialog box. Select the device from the list, then click OK.
Figure 28. Connect to device... Dante Dialog Box
When a connection with a device is established, the Synchronize with Device
•
dialog box opens (see figure 29, on the next page).
NetPA U 2002 SB User Guide • DSP Configurator Software 32
